4.33" Kitagawa TT120 4th and 5th Axis CNC Rotary Table

Stock Number P12251

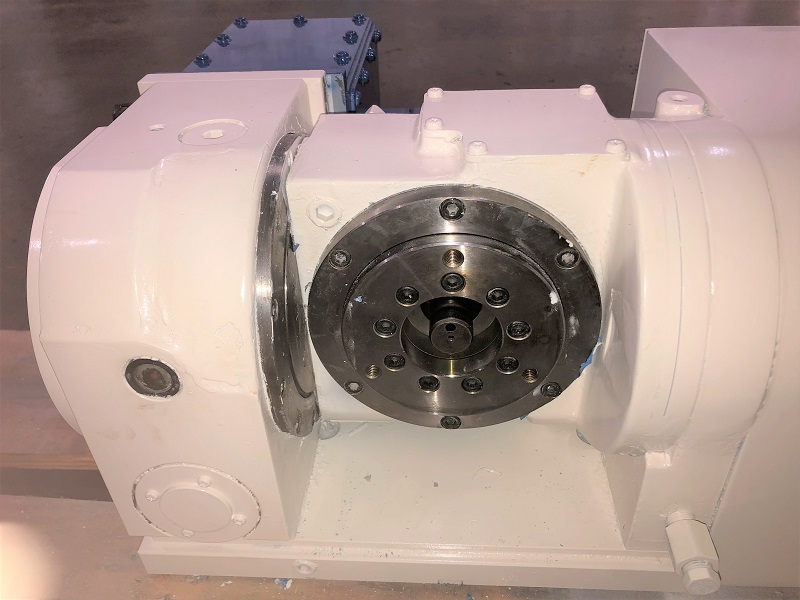

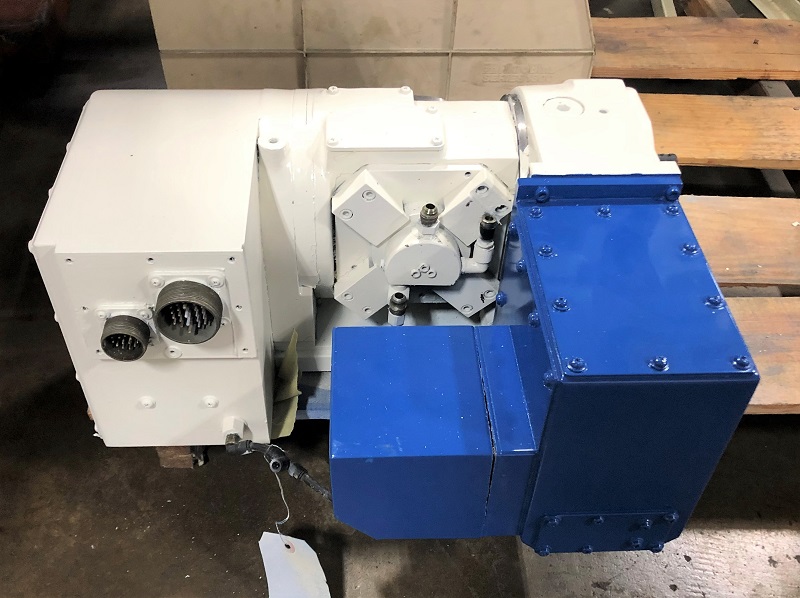

ACTUAL PHOTOS

4.33" KITAGAWA 4TH and 5TH AXIS CNC ROTARY TABLE

Model: TT120, New 2007

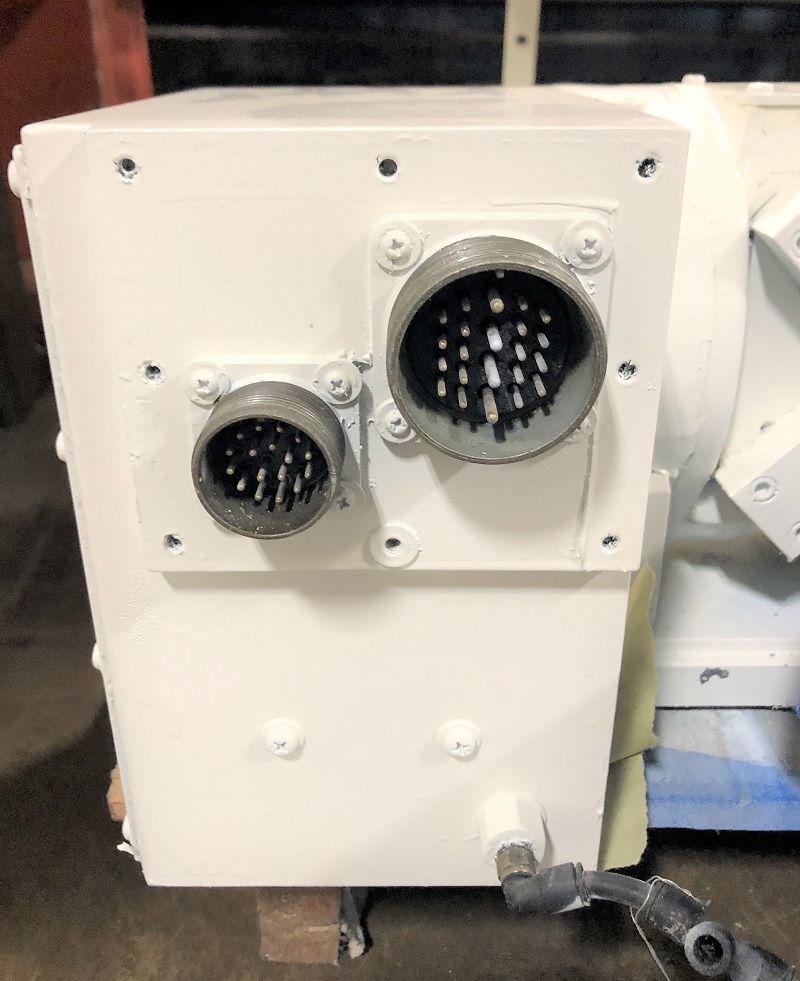

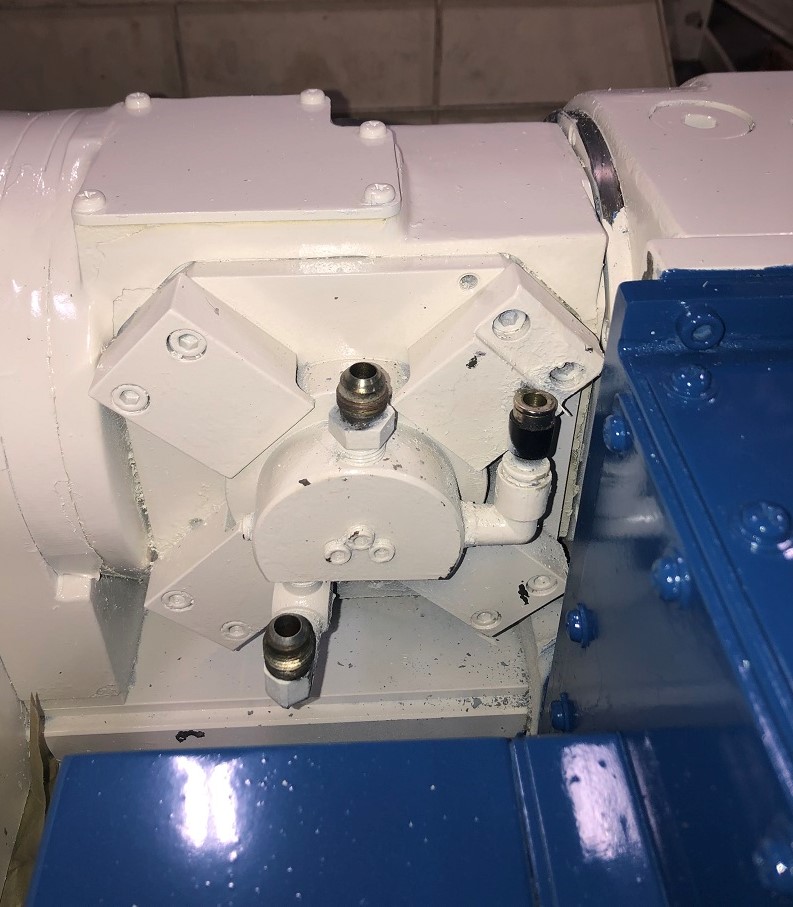

EQUIPPED WITH: Fanuc Servo Motors, Pneumatic Clamping, Cables

CATALOGUE SPECIFICATIONS:

Working Surface Diameter..................................... 4.33"

Table Diameter............................................... 4.33"

Maximum Workload on Table @ Horizontal....................... 78 Lbs

Maximum Workload on Table @ Tilted........................... 45 Lbs

Table Center Height.......................................... 5.51"

Reduction Ratio Rotating..................................... 72:1

Reduction Ratio Tilting...................................... 120:1

Maximum Rotation Speed Rotating.............................. 41.6 RPM

Maximum Rotation Speed Tilting............................... 25 RPM

Minimum Tilting Angle........................................ -20 Deg.

Maximum Tilting Angle........................................ +120 Deg.

Approximate Dimensions....................................... 24" x 18"

Approximate Height........................................... 10"

Approximate Weight........................................... 150 LBS

CONDITION: Appears to be in Excellent Condition !
