EQUIPPED WITH:

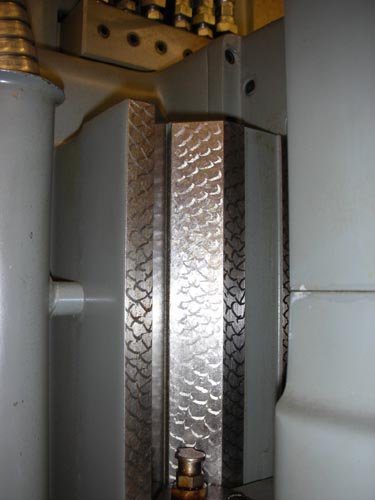

Double V-Ways are Hardened, Ground and Hand Lapped for Geometric Accuracy, Nitralloy Leadscrews, Castings for Base and Column are Meehanite Iron, Full Apron Sheild to Protect Table Ways.

CATALOGUE SPECIFICATIONS:

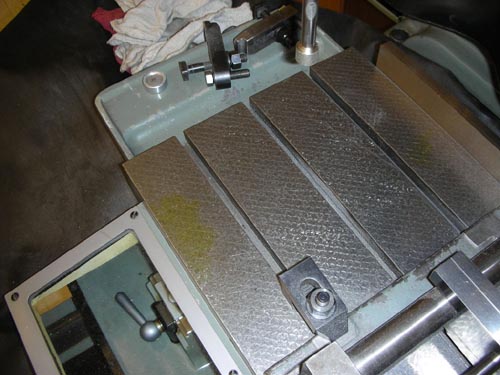

Table Working Surface................................... 11" x 24"

Table Travel Longitudinal (X-Axis)...................... 18"

Table Travel Cross (Y-Axis)............................. 11"

Vertical Adj. of Spindle Head (Z-Head).................. 12-5/8"

Spindle Quill Travel (Z-Quill).......................... 3-5/8"

Table Top to Spindle End (Min).......................... 2"

Table Top to Spindle End (Max).......................... 18"

Spindle to Column Ways.................................. 10"

Spindle to Column Below Ways............................ 13-1/2"

Main Spindle Speeds (Infinitely Variable)............... 25-225 RPM

Approximate Machine Dimensions.......................... 57" x 62"

Approximate Machine Height.............................. 92"

Approximate Machine Weight.............................. 5,000 LBS

CONDITION: This Machine Appears to be in Excellent Condition !
