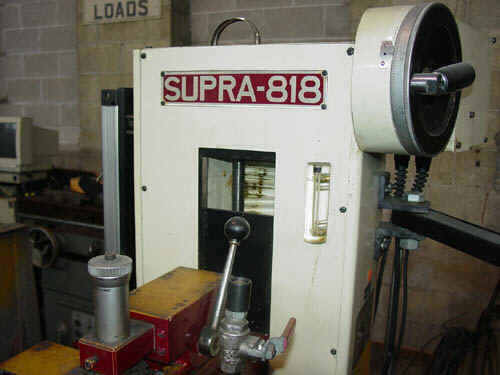

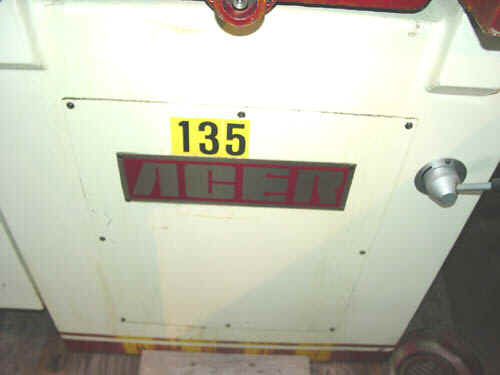

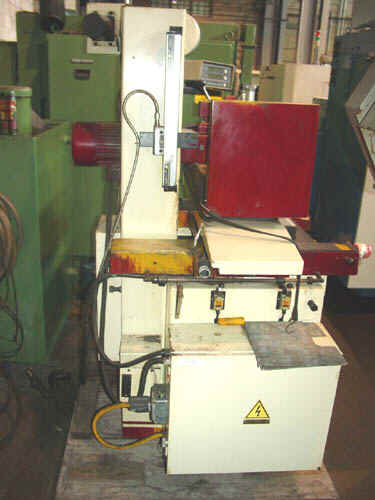

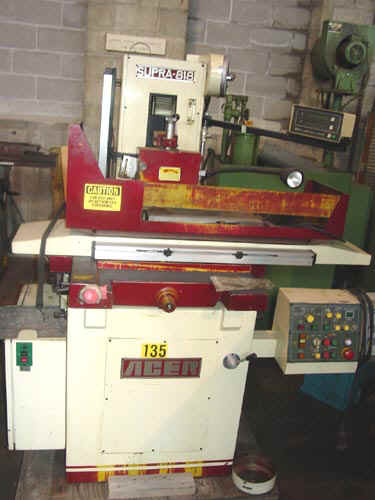

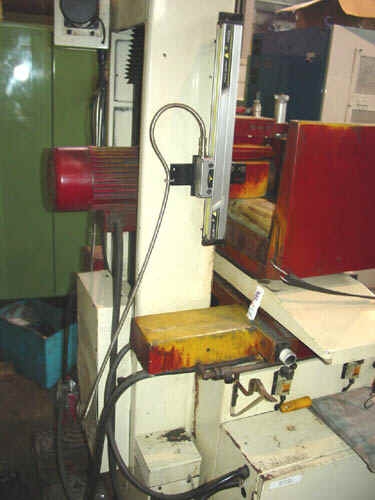

8" x 18" ACER Surface Grinder

Model Supra 818 AHD, S/N 210089, New 1995

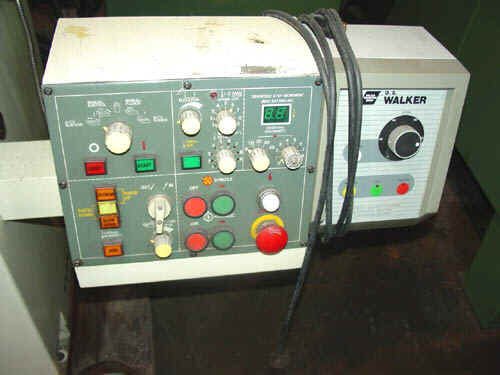

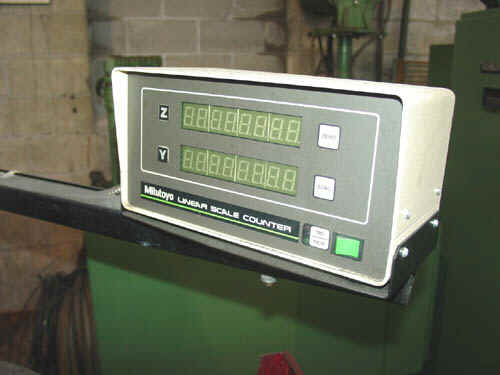

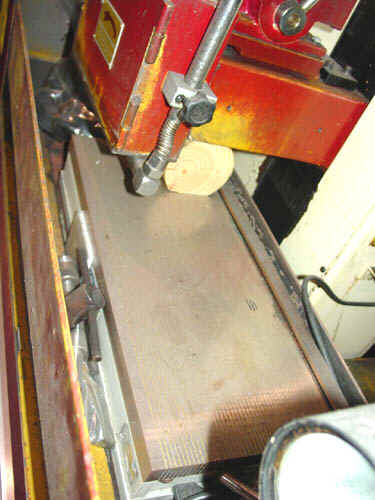

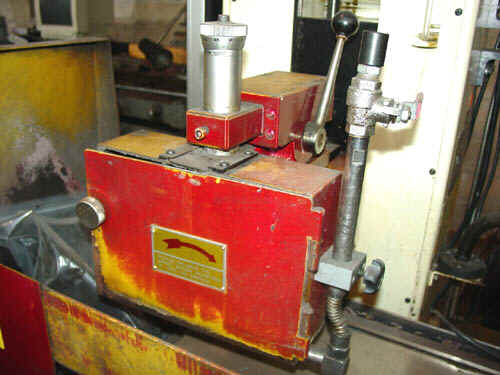

EQUIPPED WITH: Mitutoyo 2-Axis Digital Readouts, 8" x 18" Electromagnetic  Chuck, Automatic Incremental Power Downfeed, Above the Wheel Dresser, Auto Reciprication and Crossfeed, Sparkout.

CATALOGUE SPECIFICATIONS:

Max Table Working Surface............................ 8" x 18"

Magnetic Chuck Working Surface....................... 8" x 18"

Longitudinal Travel (X-Axis)......................... 20"

Cross Travel (Z-Axis)................................ 9-3/4"

Max Height Spindle Center to Table................... 18"

Grinding Wheel Diameter.............................. 8"

Grinding Wheel Width................................. 1/2"

Grinding Wheel Hole Diameter......................... 1-1/4"

Grinding Wheel Motor................................. 3 HP

Spindle Motor Speed.................................. 3450 RPM

Electrics............................................ 220/440/3/60

Approximate Machine Dimensions....................... 50" x 36"

Approximate Machine Height........................... 65"

Approximate Machine Weight........................... 2,850 LBS

CONDITION: Machine Appears to be in Excellent Condition!
