Stock Number P11713

Fadal VMC 4020 w/ 4th and 5th Axis Rotary Table - P11713

ACTUAL PHOTOS

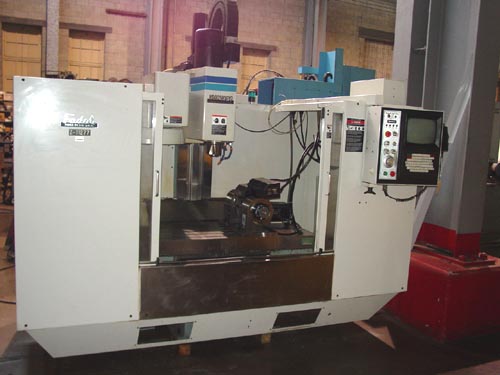

FADAL VMC 4020 CNC VERTICAL MACHINING CENTER

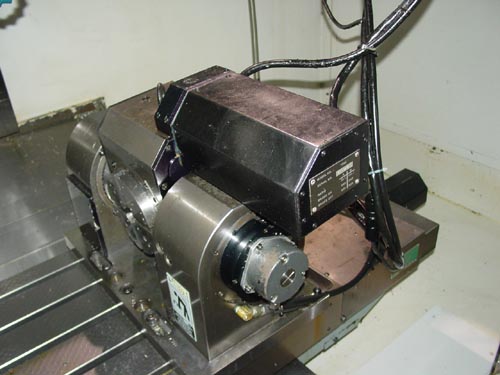

w/ 4th and 5th Axis Rotary Table, New 1994

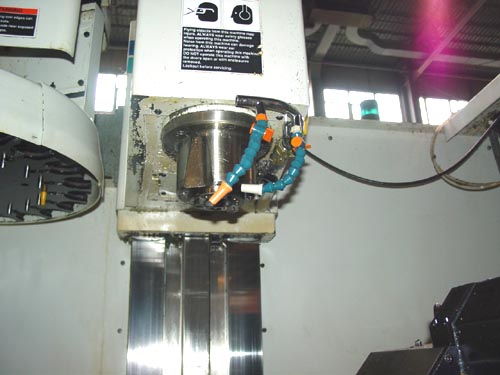

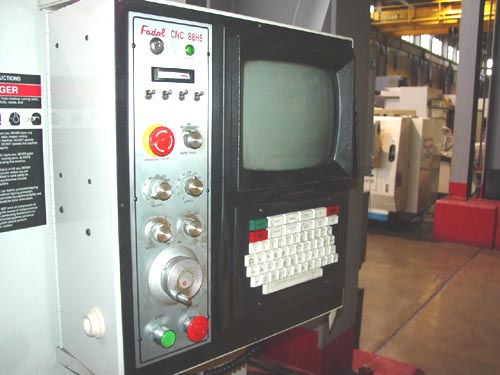

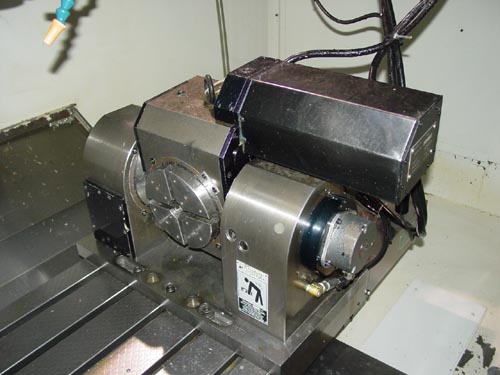

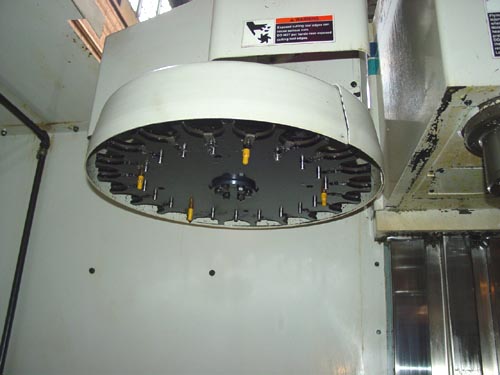

EQUIPPED WITH: Fadal 88 CNC w/CRT, Fadal 4th & 5th Axis Rotary Table, 2 Speed 10,000 RPM Spindle Option, RS-232 Port, Multiple Part Program Storage, Self Diagnostics, Heavy Duty Box Ways, 21 Station Automatic Tool Changer, Coolant System.

CATALOGUE SPECIFICATIONS:

Table Working Surface................................. 48" x 20"

Table Load Capacity................................... 1,500 LBS

Longitudinal Travel (X-Axis).......................... 40"

Cross Travel (Y-Axis)................................. 20"

Vertical Travel (Z-Axis).............................. 20"

Feed Rates (X & Y-Axes)............................... 0.1 to 250 IPM

Feed Rate (Z-Axis).................................... 0.1 to 250 IPM

Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM

Rapid Traverse Rate (Z-Axis).......................... 600 IPM

Tool Storage Capacity................................. 21

Spindle Horsepower.................................... 15 HP

Spindle Speeds Range.................................. 75-10,000 RPM

Spindle Taper......................................... #40 Taper CAT

Approximate Machine Dimensions........................ 87" x 116"

Approximate Machine Height............................ 95"

Approximate Machine Weight............................ 10,500 LBS

CONDITION: Appears to be in Excellent Condition !
