New 1977, S/N 23715
EQUIPPED WITH:

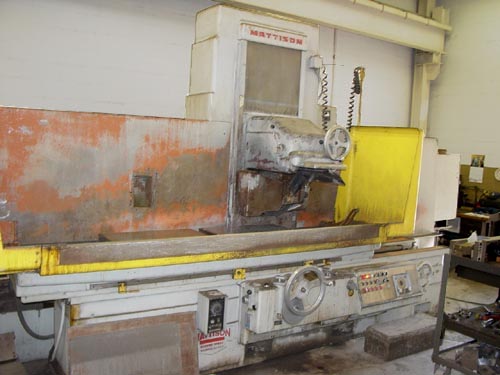

This is a Heavy Duty 'Die Block' Style Surface Grinder
with the 'Newer' Style Squared
Off Box Type Column, Auto Recip & Crossfeed, Power Operated Raising
& Lowering of Wheel Head, (2) 24" x 30" Hitachi Electro
Magnetic Chucks, Above the Wheel Dresser, Travatrol Electronic Cross Feed,
Trabon Automatic Lubrication System, Coolant System w/ Barnes Magnetic
Seperator.
CATALOGUE SPECIFICATIONS:
Max Table Working Surface............................
24" x 60"
Magnetic Chuck Working Surface.......................
24" x 60"
Longitudinal Travel (X-Axis).........................
60"
Cross Travel (Z-Axis)................................
24"
Vertical Travel (Y-Axis).............................
24"
Max Height Under New Wheel...........................
25"
Max Height Spindle Center to Table...................
35"
Table Longitudinal Feeds Range (Variable)............ 10 -
125 FPM
Grinding Wheel Diameter..............................
20"
Grinding Wheel Width.................................
3"
Grinding Wheel Hole Diameter.........................
18"
Grinding Wheel Motor................................. 30
HP
Electrics............................................
230/3/60
Approximate Machine Dimensions.......................
152" x 87"
Approximate Machine Height...........................
110"
Approximate Machine Weight...........................
24,300 LBS
CONDITION: Machine Appears to be in Excellent Condition!
