Model

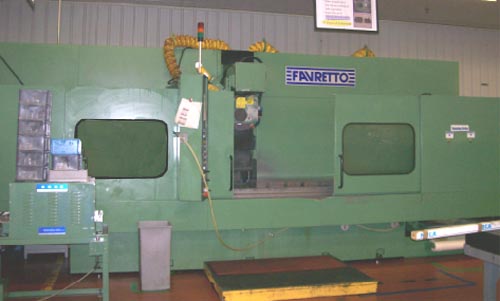

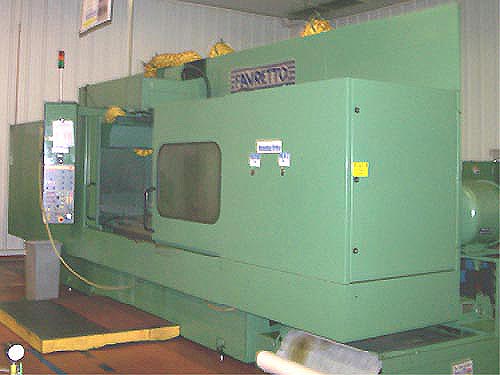

MD-200, New 1997, S/N 03926

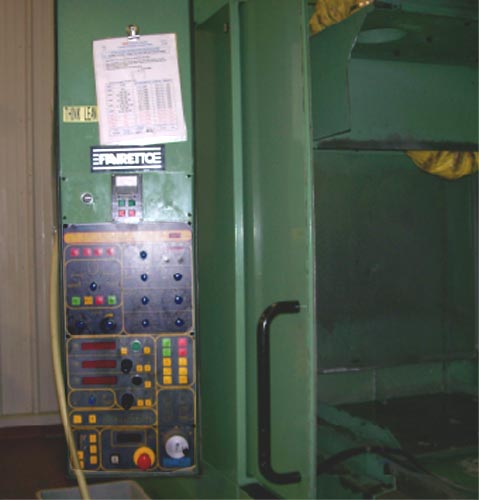

EQUIPPED WITH: Favretto Programmable Control,
Automatic Incremental Downfeed, Automatic Reciprocation and Crossfeed,

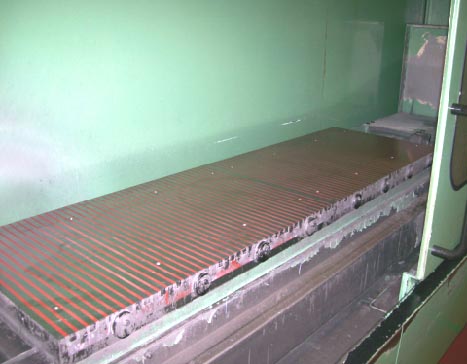

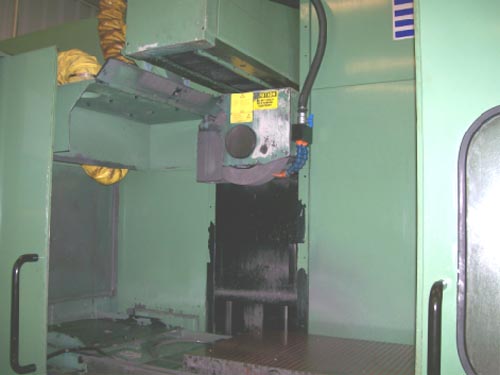

23-1/2" x 78-1/2" Electro-Magnetic Chuck, Above-The-Wheel

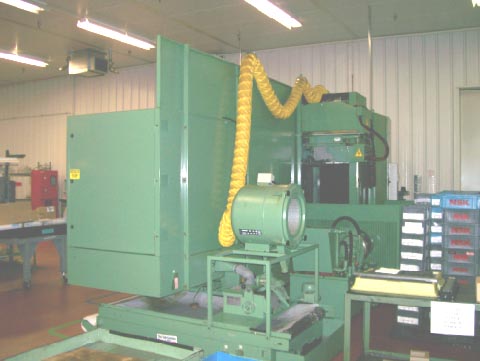

Wheel Dresser, Coolant/Filtration System.
NOTE: New Replacement Price is $ 395,000.
CATALOGUE SPECIFICATIONS:
Max Table Working Surface............................
23.5" x 86"
Magnetic Chuck Working Surface.......................
23.5" x 78.5"
Longitudinal Travel (X-Axis).........................
87.4"
Cross Travel (Z-Axis)................................
29.5"
Vertical Travel (Y-Axis).............................
30.3"
Maximum Grinding Height..............................
29.5"
Maximum Grinding Width...............................
33.4"
Table Longitudinal Feeds Range (Variable)............ 39
- 1574 IPM
Vertical Feed Rapid Traverse......................... 59
IPM
Cross Feed Rapid Travere.............................
196 IPM
Grinding Spindle Speed...............................
1400 RPM
Grinding Wheel Diameter..............................
18"
Grinding Wheel Width, Standard.......................
3.94"
Grinding Wheel Hole Diameter.........................
8"
Grinding Wheel Motor................................. 30
HP
Approximate Machine Dimensions.......................
290"x 101"
Approximate Machine Height...........................
118"
Approximate Machine Weight...........................
25,300 LBS
CONDITION: Machine Appears to be
in Excellent Condition !
