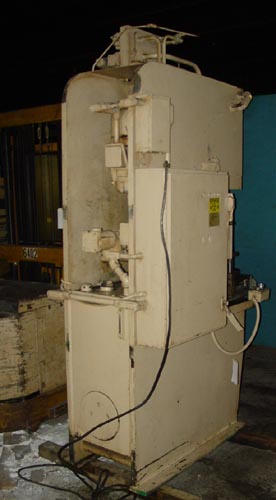

CATALOGUE SPECIFICATIONS:

Tonnage Capacity..................................... 15 Ton

Stroke Length........................................ 18"

Throat Depth......................................... 12"

Maximum Daylight..................................... 24"

Main Cylinder Diameter............................... 5"

Ram Diameter......................................... 3-1/2"

Bed Area, L-R x F-B.................................. 24"x 20-1/2"

Ram Speed, Advance................................... 432 IPM

Ram Speed, Closing................................... 118 IPM

Ram Speed, Rapid Return.............................. 415 IPM

Maximum Pressure..................................... 1530 PSI

Motor, RPM........................................... 1800 RPM

Approximate Machine Dimensions....................... 48" x 48"

Approximate Machine Height........................... 95"

Approximate Machine Weight........................... 5,500 LBS
