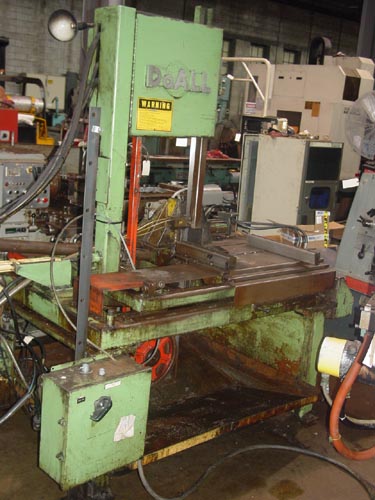

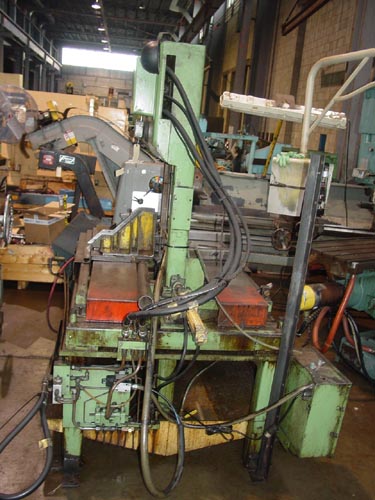

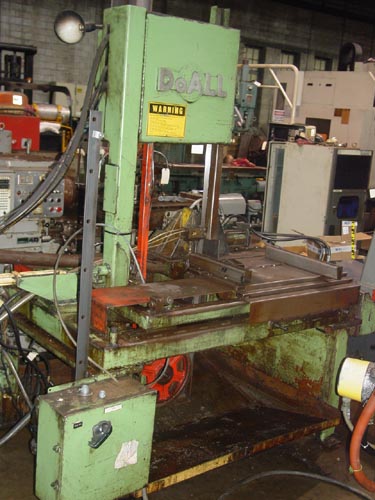

Model TF-1421H, New 1984, S/N 363-84625

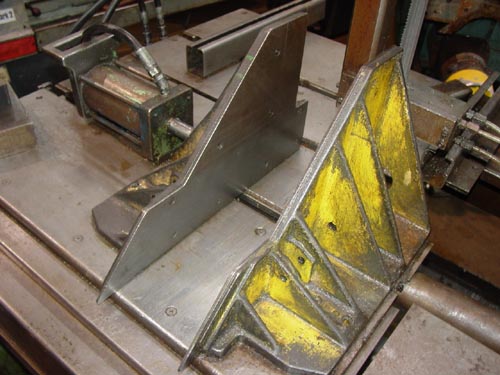

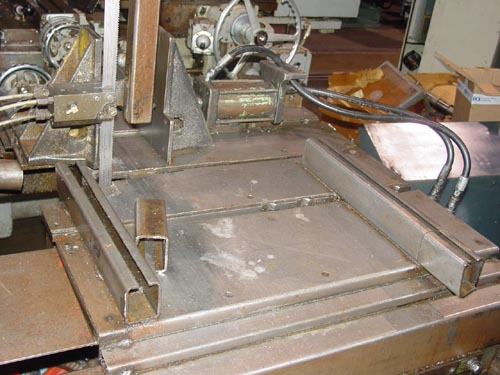

EQUIPPED WITH: Tilt Frame Design with Protractor, Carbide Faced Saw Blade Guides for Blade Widths up to 1", Hydraulic Vises.

CATALOGUE SPECIFICATIONS:

Capacity, Nominal................................. 21"x 14""

Capacity, 45 Degree Blade Angle................... 14"x 14"

Capacity, Round at 45 Degrees..................... 14"

Table Size ....................................... 32" x 36"

Table Weight Load ................................ 1,000 lbs

Work Height ...................................... 38"

Blade Length...................................... 171"

Blade Width....................................... 1"

Blade Speeds, Infinitely Variable................. 75 to 400 FPM

Motor Rating ..................................... 5 hp

Overall Dimensions, L x W......................... 88"x 56"

Approximate Height ............................... 94""

Weight, Approximately............................. 2750 Lbs.
