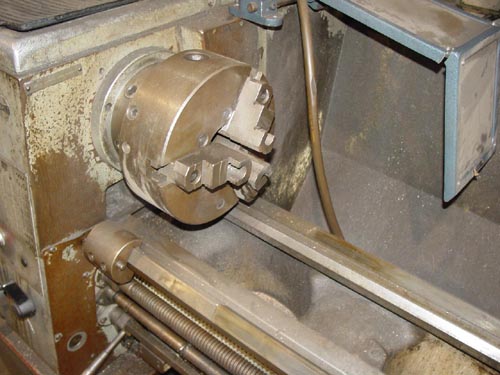

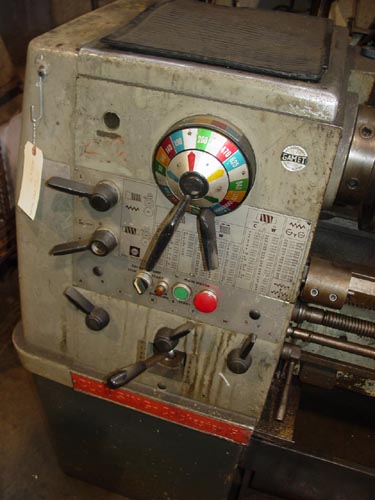

EQUIPPED WITH: Inch/Metric Threading, 10" 3-Jaw Chuck, Hardened and Ground Ways, Hardened and Ground Cross Feed Screw, Heavy Duty Geared Headstock with (16) Spindle Speeds,

CATALOGUE SPECIFICATIONS:

Max. Swing Over Bed Ways, Rated...................... 15"

Max. Swing Over Bed Ways, Actual..................... 15-1/4"

Max. Swing Over Carriage Wings....................... 15-1/4"

Max. Swing Over Cross Slide.......................... 9-1/2"

Max. Distance Between Centers........................ 50"

Cross Slide Cross Feed Travel........................ 9-1/4"

Hole Thru Spindle.................................... 2-3/16"

Tailstock, Spindle Travel............................ 6-1/8"

Tailstock, Spindle Diameter.......................... 2-5/16"

Tailstock, Spindle Taper............................. #4 MT

(16) Spindle Speeds, Range........................... 25 to 2000 RPM

Carriage Longitudinal Feeds.......................... .0015" to .40IPR

Inch Thread Changes, Range........................... 2 to 72 TPI

Metric Thread Changes, Range......................... .2 to 14 TPMM

Approximate Machine Dimensions ...................... 96" x 38"

Approximate Machine Height .......................... 49"

Approximate Machine Weight........................... 3,300 LBS
