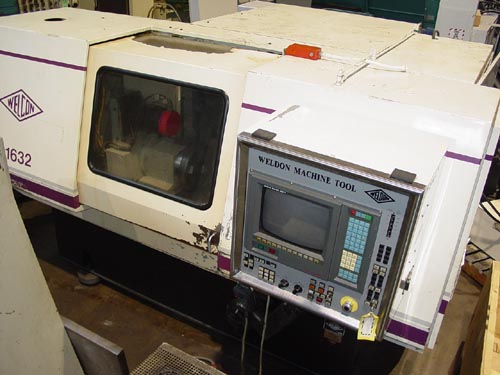

MACHINE DESCRIPTION: This Machine is Equipped with a Full C-Axis Programmable Workhead. This Offers the Capability of Grinding Nonconcentric Parts such as Cams Shapes or Camshafts. This also Allows You to Grind Flats on Shafts such as Square Punches, Octagon Shafts, Polygon Shaped Dies and Cutter Relief Angles.

EQUIPPED WITH: GE Fanuc 150-T CNC Control w/ CRT, Inch/Metric Programming, Digital GE Fanuc AC Servo Systems, Macro Subroutines, Background Part Program Editing, Automatic Sequence Number Insertion, RS-232, Full C-Axis Workhead, Full Linear and Circular Contouring, W-Axis Rear Rotary Plunge Diamond Dresser, Tailstock Mounted Single Point Wheel Dresser, Tailstock.

CATALOGUE SPECIFICATIONS:

Maximum Swing Over Table.............................. 16"

Maximum Distance Between Centers...................... 32"

Worktable Travel...................................... 26"

Maximum Workpiece Weight.............................. 700 Lbs.

Minimum Work Diameter using 10" Diameter Wheel........ 0"

Maximum Worktable Travel Speed........................ 400 IPM

Wheelslide Angle...................................... 90 DEG

Grinding Wheel, Maximum Diameter (with New Wheel)..... 16"

Grinding Wheel, Maximum Width......................... 3"

Travel of Wheelslide.................................. 15.7"

Wheelhead Infeed Resolution........................... .00001

Wheelhead Horsepower.................................. 10 HP

Wheelhead (Grinding Wheel) Speed...................... 1750 RPM

Workhead Speed (Infinitely Variable).................. 0-600 RPM

Electrical System..................................... 480/3/60

Approximate Machine Dimensions........................ 128" x 118"

Approximate Machine Height............................ 75"

Approximate Machine Weight............................ 17,500 LBS

CONDITION: Appears to be in Excellent Condition !
