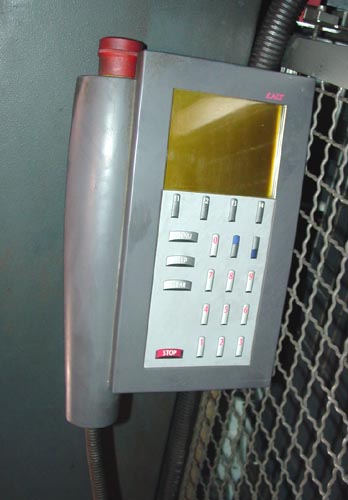

MACHINE DESCRIPTION:  The Quick Load Servo S2 Automatically Makes all Changeover Adjustments after Answering Three Simple Questions Prompted by the Remote Control.  1) Shape? 2) Diameter? 3) Part Length? Changeover is Complete in Seconds. The Quick Load Servo S2 Takes the Information and Automatically Makes These Adjustments: All Bar Feed Mechanical Adjustments are Made to the Centerline of Machine Spindle, Storage Rack Loading Mechanism Adjusts to Bar Diameter, Ensuring One Bar is Loaded at a Time, Feed Rate is Adjusted, Torque Rate is Adjusted, The X or Z-Axis Retract System Allows Quick and Easy Change of the Lathe Spindle Liners.

CATALOGUE SPECIFICATIONS:

Round Bar Diameter Capacity ...................... 1/4" to 4-3/4" Range

Maximum Feed Length For Bars...................... 63"

Height Floor to Feed Guide (Adjustable) .......... 35.5" - 55"

Maximum Feed Rate................................. 4000 IPM

Complete Changeover Time of Different Diameters... 15 Seconds

Complete Load Cycle Time of New Bar Stock......... 15 Seconds

Approximate Machine Dimensions.................... 54" x 81"

Approximate Machine Height........................ 69"

Approximate Machine Weight........................ 1,750 lbs

CONDITION: Machine Appears to be in Excellent Condition!
