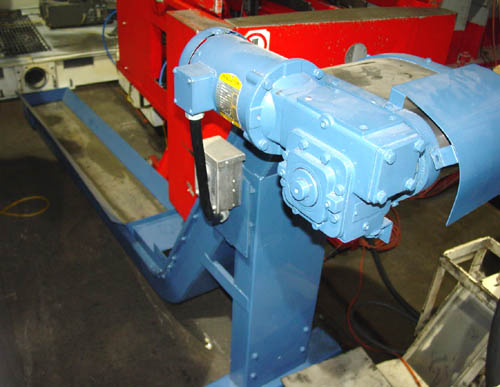

Conveyor, Coolant
System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed.....................................
20.47"
Max Swing Over Cross Slide.............................
13.78"
Maximum Turning Diameter...............................
10.24"
Maximum Turning Length.................................
20.87"
Standard Chuck Size....................................
10"
Cross Travel Turret 1 (X1-Axis)........................
6.3"
Longitudinal Travel Turret 1 (Z1-Axis).................
23.23"
Cross Travel Turret 2 (X2-Axis)........................
6.3"
Longitudinal Travel Turret 2 (Z2-Axis).................
23.23"
Rapid Traverse Rate (X1, X2 Axes)......................
472 IPM
Rapid Traverse Rate (Z1, Z2 Axes)......................
590 IPM

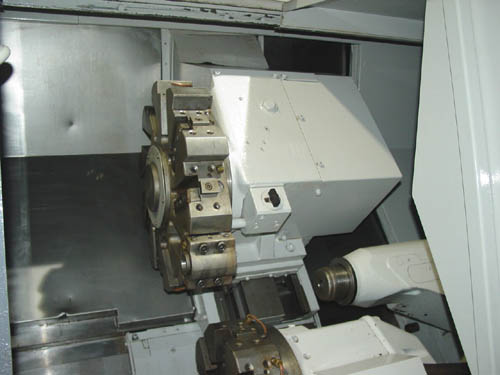

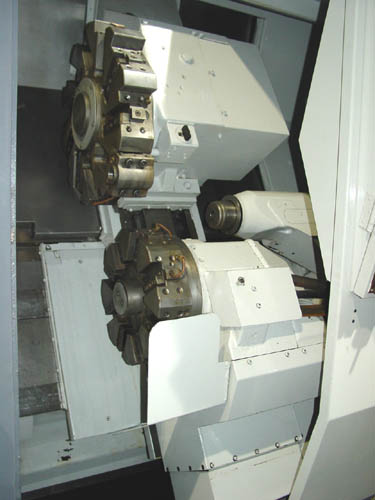

Number of Turrets...................................... 2
Tool Positions Turret 1................................ 10
Tool Positions Turret 2................................ 8
Spindle Bore...........................................
3.15"
Spindle Nose...........................................
A2-6
Spindle Speed Range....................................
35-3500 RPM
Spindle Horsepower..................................... 25
HP
Approximate Machine Dimensions (w/o Barfeeder).........
182" x 72"
Approximate Machine Height.............................
80"
Approximate Machine Weight.............................
15,840 LBS
CONDITION: This Machine Appears to be in Excellent
Condition!
