CINCINNATI MILACRON 340-20 'Twin Grip' Centerless Grinder

Stock Number K15302

Cincinnati 340-20 Centerless Grinder, Twin Grip Cincinnati Centerless Grinder For Sale, Used Cincinnati Grinder For Sale, Used Centerless Grinder For Sale

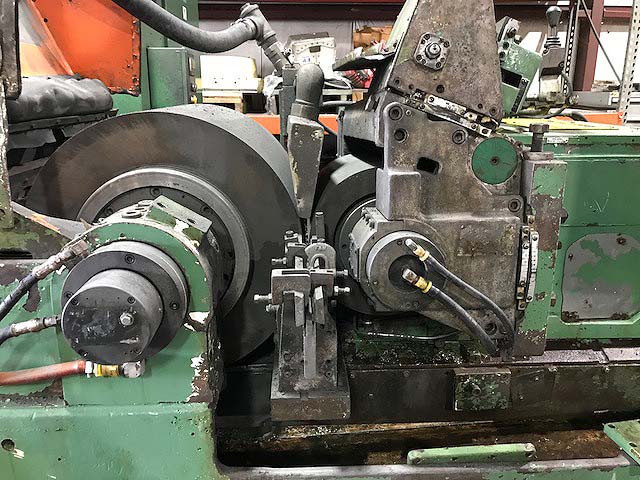

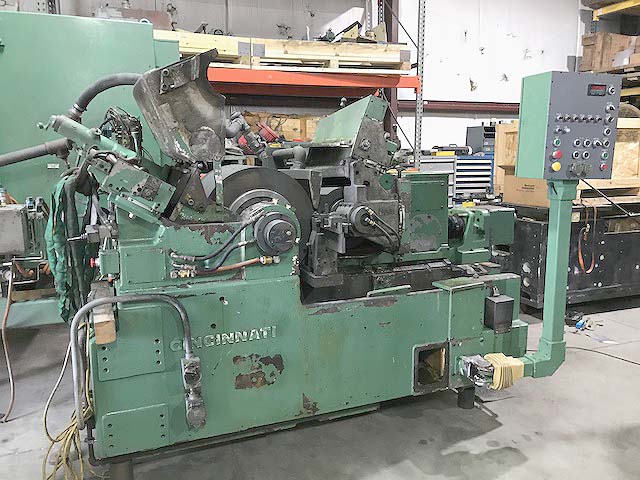

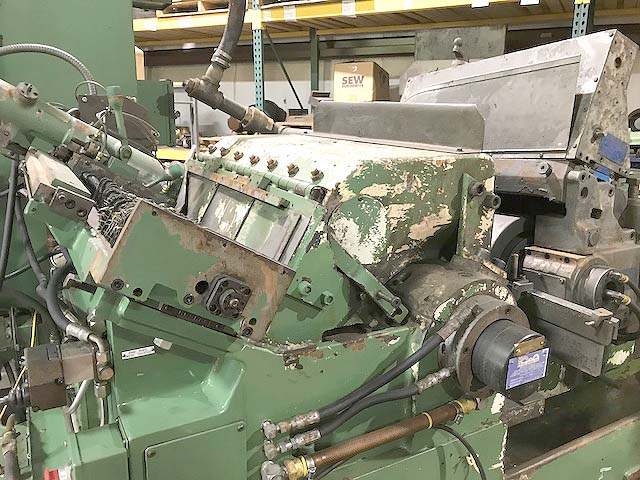

ACTUAL PHOTOS

CINCINNATI MILACRON 340-20 'Twin Grip' Centerless Grinder
New 1973/2003, Stock# K15302

EQUIPPED WITH:

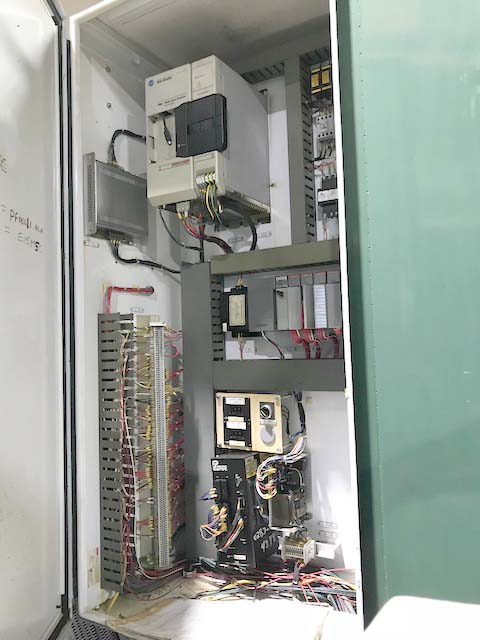

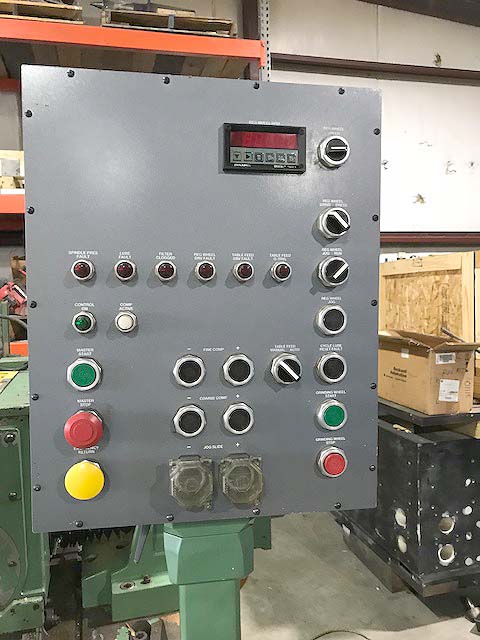

Allen Bradley SLC 5/03 PLC Control, Hydraulic Profile Grinding Wheel Truing, Hydraulic Profile Regulating Wheel Truing, Servo Motor Infeed and Compensation, Servo Regulating Wheel Drive, Thru Feed Work Rest.

Spindle Replaced with GCH Rebuilt Spindle 8/2016.
Machine Rebuilt and Retrofit by Machine Tool Specialist in 2003.
Price includes run-off of your part in Cincinnati, Ohio.

CATALOG SPECIFICATIONS:
Work Diameter Capacity Maximum (With New Wheel).............. 6"
Work Diameter Capacity Nominal.............................................. 1/2" to 3"
Grinding Wheel Diameter, Maximum.......................................... 24"
Grinding Wheel Diameter, Minimum........................................... 16"
Grinding Wheel Width, Maximum............................................... 20"
Grinding Wheel Width, Minimum................................................ 1"
Grinding Wheel Hole Diameter................................................... 12"
Regulating Wheel Diameter, Maximum...................................... 14"
Regulating Wheel Diameter, Minimum....................................... 10.25"
Regulating Wheel Width, Maximum........................................... 20"
Regulating Wheel Width, Minimum............................................ 1"
Regulating Wheel Hole Diameter............................................... 6"
Regulating Wheel Speeds (Variable)......................................... 11 - 300 RPM
Grinding Wheel Motor................................................................ 40 HP
Regulating Wheel Motor............................................................. 2 HP
Hydraulic System Motor............................................................. 2 HP
Electrics..................................................................................... 230/460/3/60
Approximate Machine Dimensions............................................ 114" x 158"
Approximate Machine Height..................................................... 96"
Approximate Machine Weight.................................................... 28,000 LBS

CONDITION: Appears to be in Excellent Condition!
Machine has been checked out by a Cincinnati Centerless Expert.
Price includes a run-off of your part here in Cincinnati.
Expert help with Automation, Set-up, and Additional Modifications Available.
