Cincinnati #2 OM Centerless Grinder

Stock # K15296

Cincinnati #2 OM Centerless Grinder, #2 Cincinnati Centerless Grinder For Sale, Used Cincinnati Grinder For Sale, Used Centerless Grinder For Sale

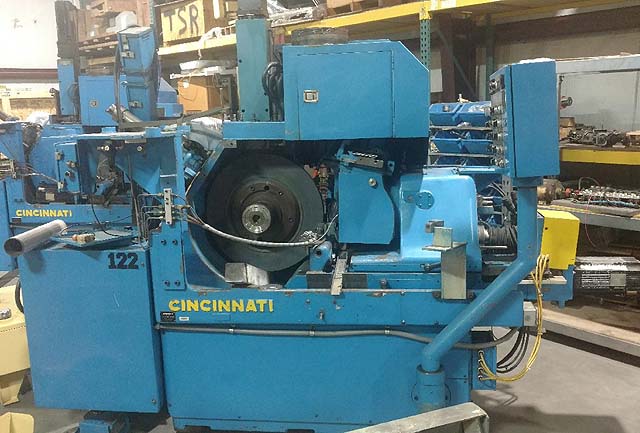

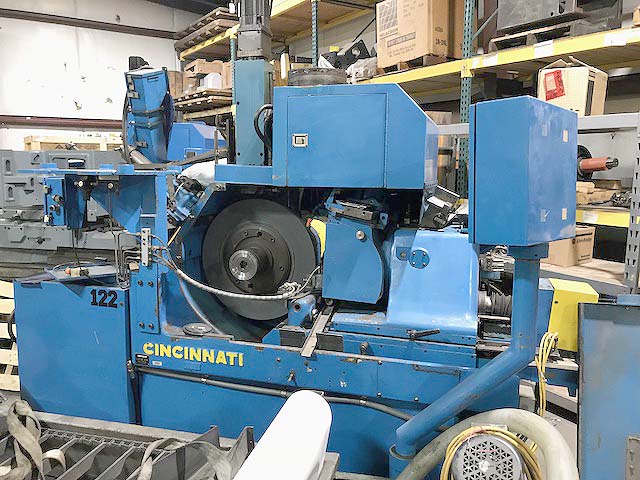

ACTUAL PHOTOS

                                  #2 OM CINCINNATI CENTERLESS GRINDER
                                        Model OM, Rebuilt and Retrofit in 2000
                                                         Stock# K15296

EQUIPPED WITH:
Allen Bradley PLC Control, Infeed or Thru-Feed Work Rest, Servo Reg Wheel Infeed, Servo Reg Wheel Dresser, Servo Cam Profile Grinding Wheel Dresser, Auto Dress Cycles, Auto Comps, Variable Speed Reg Wheel Drive, Auxiliary Diamond Crush Roll Dresser on Grinding Wheel, Auto Wheel Balancer.

CATALOG SPECIFICATIONS:
Capacity, Nominal Diameter........................................................ 0-3.5"
Capacity, Maximum Diameter...................................................... 4.75"
Grinding Wheel, Maximum Diameter........................................... 24"
Grinding Wheel, Minimum Diameter............................................ 14"
Grinding Wheel, Widths (arranged for 6").................................... Up to 8"
Grinding Wheel, Hole Diameter.................................................... 12"
Regulating Wheel, Maximum Diameter........................................ 14"
Regulating Wheel, Minimum Diameter......................................... 9"
Regulating Wheel, Widths (arranged for 6")................................. Up to 8"
Regulating Wheel, Hole Diameter................................................. 5"
(12) Regulating Wheel Speeds..................................................... 12 to 300 RPM
Grinding Wheel Motor, Horsepower.............................................. 20 HP
Regulating Wheel Motor, Horsepower.......................................... 1.5 HP
Hydraulic System Motor, Horsepower........................................... 1 HP
Electrical System.......................................................................... 220-440/3/60
Approximate Machine Weight....................................................... 9,000 LBS

CONDITION: Rebuilt and Retrofit by Inter Motion in July of 2000.
                       Used in a Medical Application.
                       Appears to be in Excellent condition.
                       (2) Available. Can run as standalone machines or
                       in a Series for Rough and Finish.
