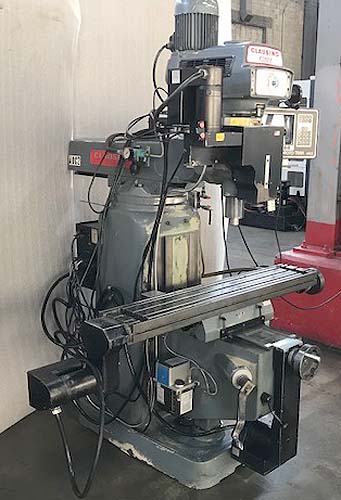

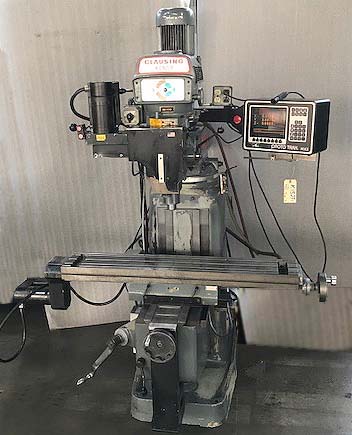

CLAUSING KONDIA CNC BRIDGEPORT STYLE
VERTICAL MILL
Model FV-1, S/N Z-499, New 1996
Stock# K15271
EQUIPPED WITH:
SouthWest Industries (SWI) Trak MX-3 CNC Control, Control Replaced in
2010,
CNC and Teach Modes, 3-Axis CNC Control, X and Y CNC Table Feeds, CNC
Z-Axis Quill, Handwheels on all axis for Manual Operation, 2 HP
Variable Speed Spindle, Knee Lock, Swivel Type Overarm, Power Draw Bar,
Central Automatic Lube System.
SPECIFICATIONS:
Table Dimensions (Overall, W x L)........................ 9" x 48"
Longitudinal Table Travel Power Feed (X-Axis)............ 33"
Longitudinal Table Travel Hand Feed...................... 35-1/2"
Cross Saddle Travel (Y-Axis)............................. 13-1/4"
Vertical Knee Travel (W-Axis)............................ 16"
Vertical Quill Travel (Z-Axis)........................... 5"
Ram Travel............................................... 12"
Spindle Taper............................................ R-8
Spindle Speeds........................................... 70-4000 RPM
Motor (Spindle).......................................... 2 HP
Electrics................................................ 220/440/3/60
Approximate Machine Dimensions........................... 86" x 69"
Approximate Machine Height............................... 67"
Approximate Machine Weight............................... 2600 lbs.
Condition: Machine Appears to be in
Excellent Condition!
