Cincinnati V5-2000 5-Axis For Sale, Used CNC Mill,
CNC Vertical Machining Center |
![](../../_themes/gaec/gaecline2.gif)
Stock Number K15031
|
![Cincinnati V5-2000 5-Axis For Sale, Used CNC Mill, CNC Vertical Machining Center](../../images2/k15031a.jpg)
![Cincinnati V5-2000 5-Axis For Sale, Used CNC Mill, CNC Vertical Machining Center](../../images/New_Folder/v5_2000_02.JPG)
![Cincinnati V5-2000 5-Axis For Sale, Used CNC Mill, CNC Vertical Machining Center](../../images/New_Folder/v5_2000_03.JPG)
![Cincinnati V5-2000 5-Axis For Sale, Used CNC Mill, CNC Vertical Machining Center](../../images/New_Folder/v5_2000_04.JPG)
![Cincinnati V5-2000 5-Axis For Sale, Used CNC Mill, CNC Vertical Machining Center](../../images/New_Folder/v5_2000_07.JPG)
![Cincinnati V5-2000 5-Axis For Sale, Used CNC Mill, CNC Vertical Machining Center](../../images2/k15031%20(2).jpg)
![Cincinnati V5-2000 5-Axis For Sale, Used CNC Mill, CNC Vertical Machining Center](../../images2/k15031%20(4).jpg) |

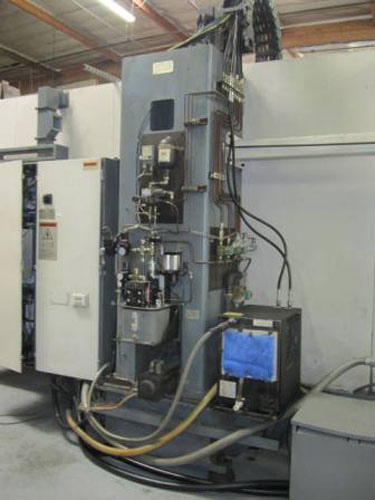

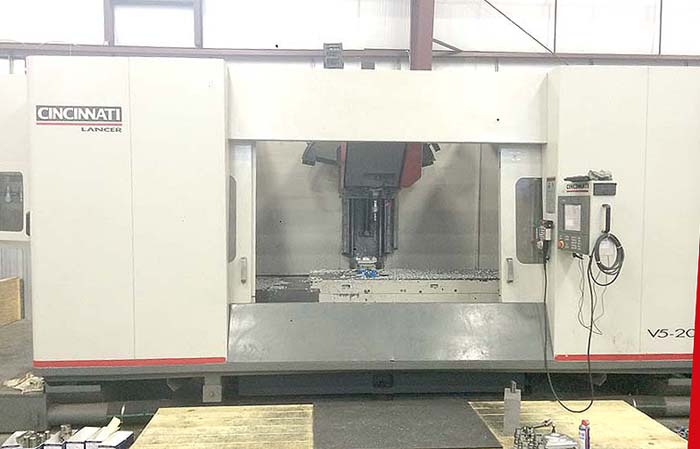

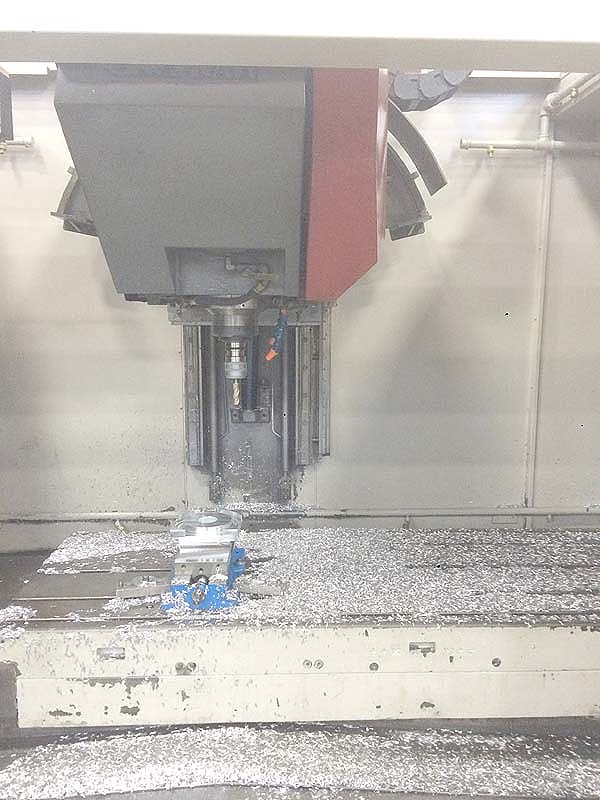

ACTUAL PHOTOS
CINCINNATI 5 AXIS CNC VERTICAL PROFILING/CONTOURING MACHINING CENTER
Model Lancer V5-2000, New 1999
|
EQUIPPED WITH:

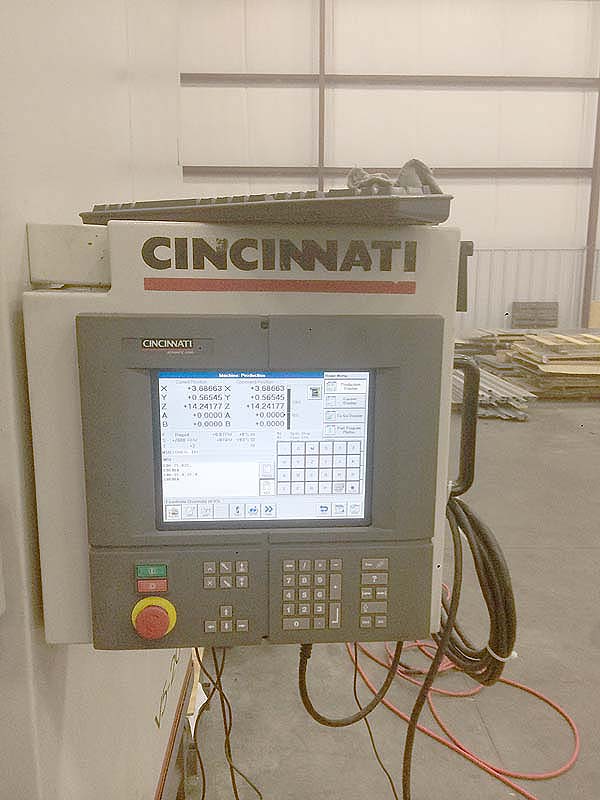

Acramatic 2100 CNC 5-Axis Simultaneous Contouring Control with Touch
Screen Programming, 15,000 RPM Spindle, 21 Station Automatic Tool Changer, Coolant System.
CATALOGUE SPECIFICATIONS:

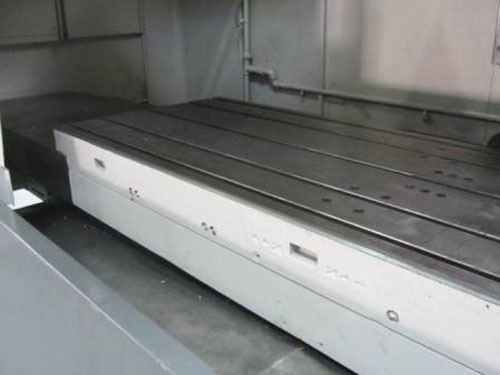

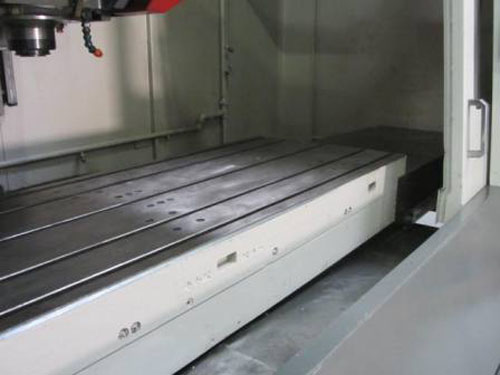

Table Working Surface, W x L............................ 90" x 30"
Table Load Capacity..................................... 6600 LBS
A Axis Cross Plane Spindle Carrier(+/- 40 Deg).......... 80 Degrees
B Axis Longitudinal Plane Spindle Carrier(+/- 40 Deg)... 80 Degrees
X Axis Table Longitudinal Travel........................ 80"
Y Axis Saddle Cross Travel.............................. 30"
Z Axis Spindle Carrier Vertical Travel.................. 30"
Spindle Speeds, Infinite Range.......................... 10 to 15000 RPM
X, Y, & Z Axis Feeds, Range............................. 0 to 590 IPM
Rapid Travers Rate (X, Y, & Z).......................... 945 IPM
Rapid Traverse Rate (A & B)............................. 2400 DPM
Spindle Motor........................................... 26 HP
Tool Storage Capacity................................... 21
Spindle Taper........................................... HSK-63
Approximate Machine Dimensions.......................... 280" x 165"
Approximate Machine Height.............................. 140"
Approximate Machine Weight.............................. 35,350 LBS
CONDITION: Machine Appears to Be in Excellent Condition !
|
