144" x 648" Mesta Lathe  for sale

144" x 648" MESTA LATHE

Stock Number K14978

144" x 648" Mesta Lathe  for sale

144" x 648" Mesta Lathe  for sale

144" x 648" Mesta Lathe  for sale

144" x 648" Mesta Lathe  for sale

144" x 648" Mesta Lathe  for sale

144" x 648" Mesta Lathe  for sale

144" x 648" Mesta Lathe  for sale

144" x 648" Mesta Lathe  for sale

144" x 648" Mesta Lathe  for sale

144" x 648" Mesta Lathe  for sale

144" x 648" Mesta Lathe  for sale

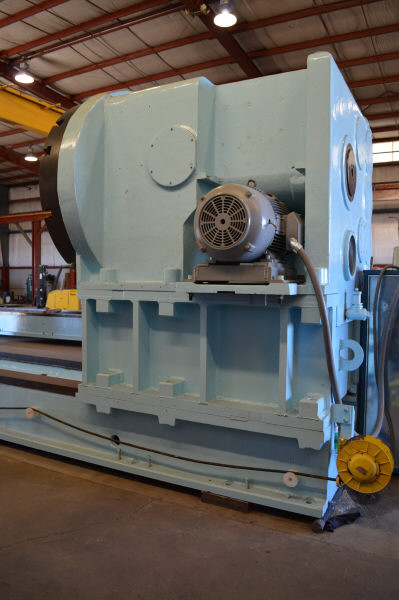

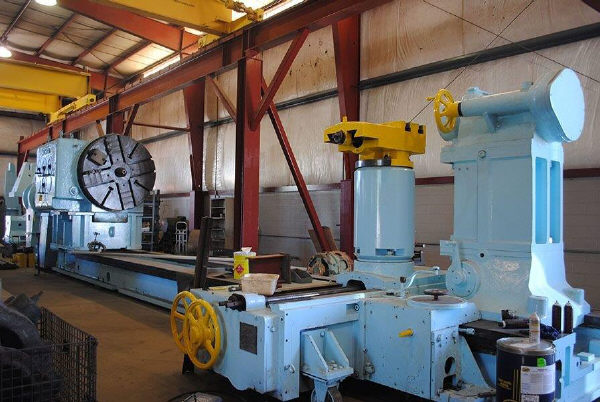

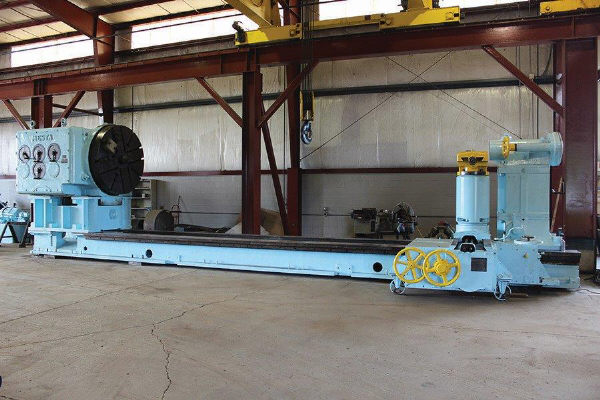

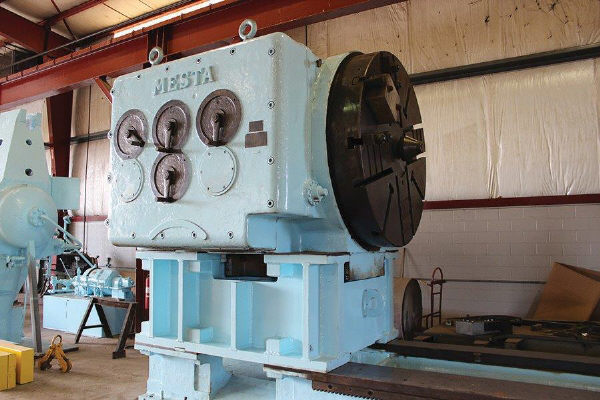

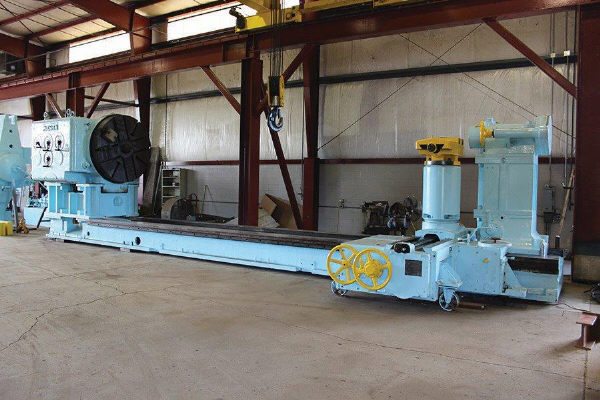

 144" (12') x 648" (54') MESTA HEAVY-DUTY ENGINE LATHE
Serial No. 6-118

EQUIPPED WITH:

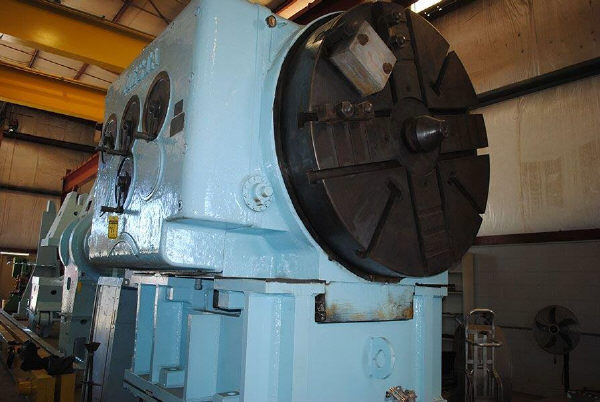

70" 4-Jaw Face Plate
Threading Capabilities
Taper Cutting Capabilities
Power Rapid Traverse To Carriage
35" Riser Blocks Under Head, Tailstock, And Carriage

CATALOGUE SPECIFICATIONS:
Hole Thru Spindle...2.5"
Swing Over Bed Ways, Actual....144"
Swing Over Cross-Slide............118"
Distance Between Centers............648" (54')
Spindle Speeds, Range..........1.025 to 23.139 RPM
Threading, Range............1/8 to 3"
Taper, Range................1/2 to 1-7/8"
Motor Horsepower..............75 HP
Weight Approximately.............150000 LBS

NOTE: Machine Appears To Be In Good Condition
