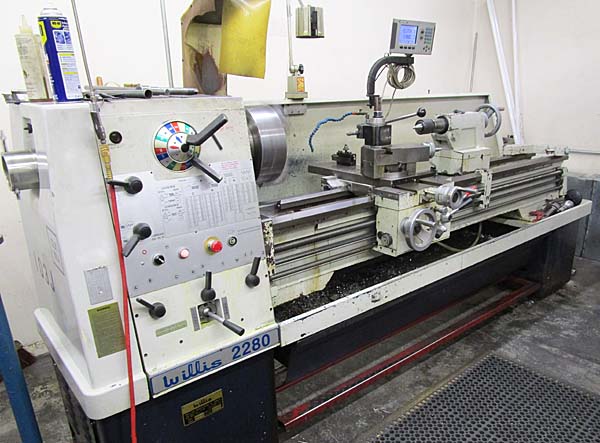

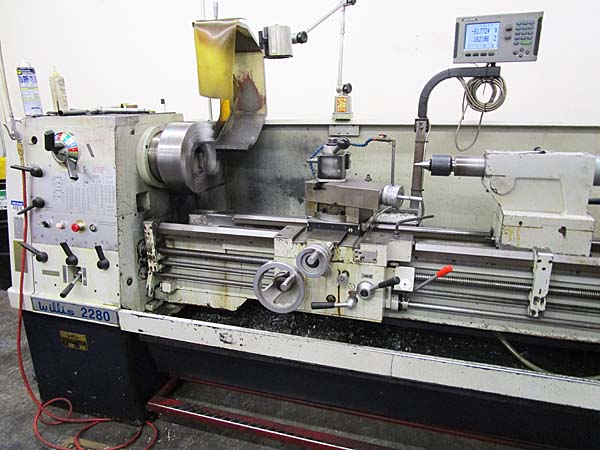

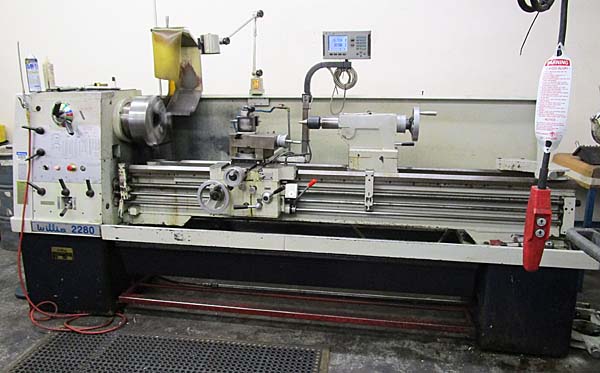

WILLIS 22" x 80" CLAUSING STYLE ENGINE LATHE
Model 2280, S/N 0657, New 2000
Stock# K14946
EQUIPPED WITH:
Acu-Rite 2-Axis Digital Readouts, 3-1/8" Spindle Bore

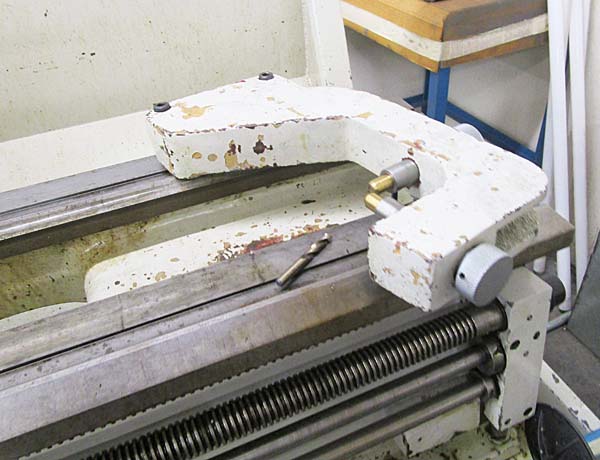

(1) Steady Rest, (1) Follow Rest, 12" 3-Jaw Chuck, Rapid Traverse,
Inch
Metric Threading, Compound Cross Slide, Aloris Tool Post, Coolant
System, Chip Pan.
CATALOGUE SPECIFICATIONS:
Swing over the bed................................. 22"
Swing over the cross slide......................... 15-1/2"
Swing in the Gap................................... 32"
Distance between centers........................... 80"
Cross Slide Travel................................. 10-1/2"
Spindle Nose....................................... D1-8
Spindle Bore....................................... 3-1/8"
Taper in Tailstock................................. MT-5
Spindle Speed (16)................................. 22-1700 RPM
Feed Range......................................... .0015-.04 IPR
Metric Threads (39)................................ .04-14 mm
Inch Threads (45)................................ 2-72 TPI
Main Motor......................................... 10 HP
Approximate Machine Dimensions..................... 40" x 140"
Approximate Machine Weight......................... 5500 lbs
CONDITION: Appears to be in Excellent Condition !
