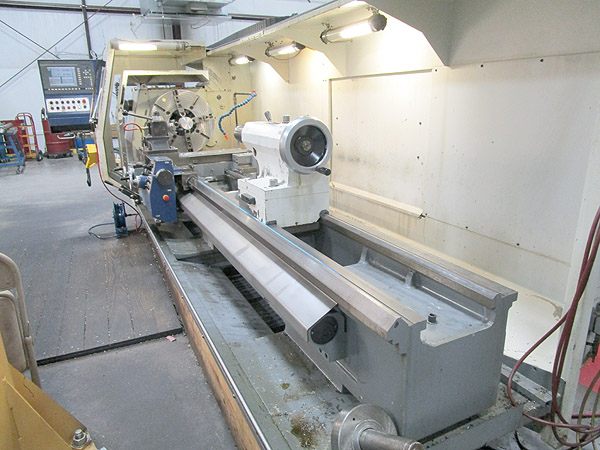

WEILER E70/3000 CNC FLAT BEDE CNC TURNING CENTER
Model E70, New 2004, S/N 376, Stock# K14945

EQUIPPED WITH:
Weiler D2 (Siemens) CNC Teach Control with Conversational Programming,
MPG Hadwheels to Run the Machine in Manual or Teach Mode, Constant
Surface Speed in Manual Modes, RS-232 Port, Multiple Part Program

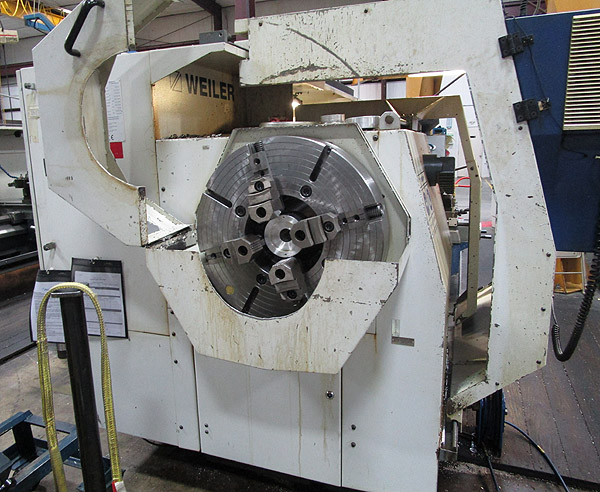

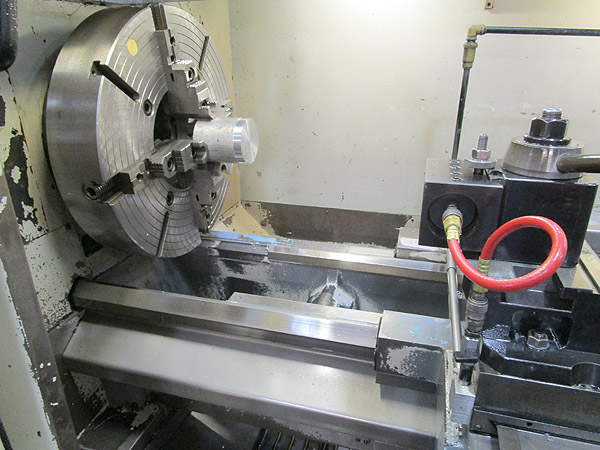

Storage, Multiple Threading Cycles, Spindle Load Meter, 24" 4-Jaw Front
Chuck, 24" 4-Jaw Rear Chuck, 8.5" Spindle Bore, Heavy Duty 50 HP Geared
Spindle, Tailstock with 120" Centers, Steady Rest, Aloris Style Tool
Post, Chip Conveyor and Coolant System.


CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 28.4"
Max Swing over the CrossSlide........................... 16.9"
Max Tailstock Position.................................. 120"
Max Turning Length...................................... 118.11"
Spindle Bore............................................ 8.5"
Cross Travel (X-Axis)................................... 16.1"
Longitudinal Travel (Z-Axis)............................ 118"
Rapid Traverse Rate (X-Axis)............................ 200 IPM
Rapid Traverse Rate (Z-Axis)............................ 400 IPM
Spindle Nose............................................ A15
Spindle Speed Range (1 RPM Increments).................. 1-900 RPM
Spindle Horsepower...................................... 50 HP
Electrics............................................... 460/3/60
Approximate Machine Dimensions.......................... 156" x 84"
Approximate Machine Height.............................. 80"
Approximate Machine Weight.............................. 15,000 LBS

CONDITION: Machine Appears to be in Excellent Condition!!
