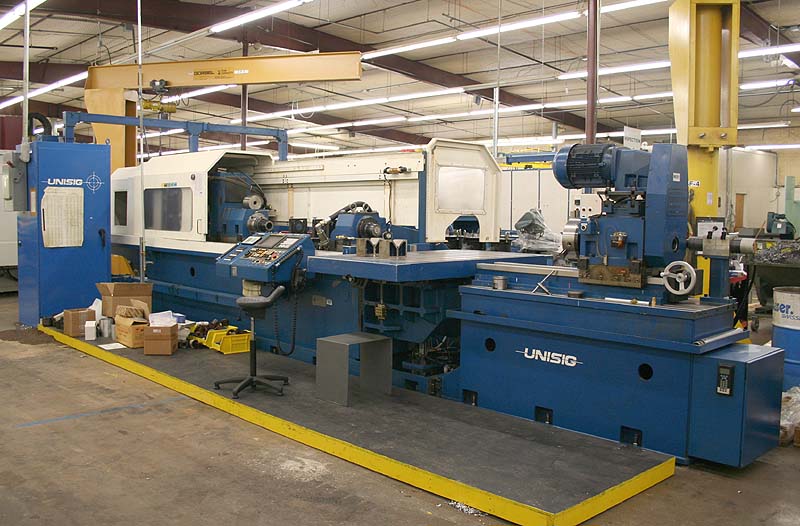

UNISIG USK75-2000 CNC DEEP HOLE DRILL
Model USK75-200BTA-CR, S/N 1722, New 2008
Stock# K14731
EQUIPPED WITH:
Fanuc 0i CNC Control, Multiple Part Program Storage, RS-232 Port,

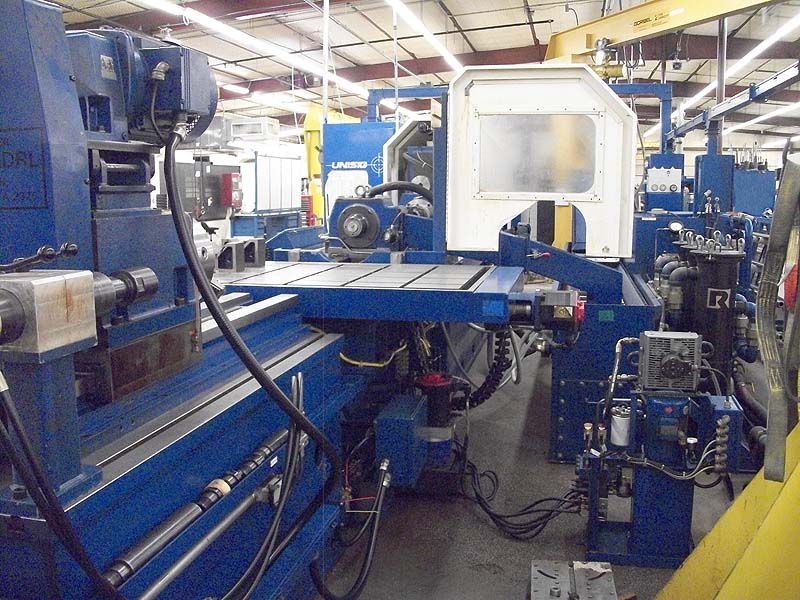

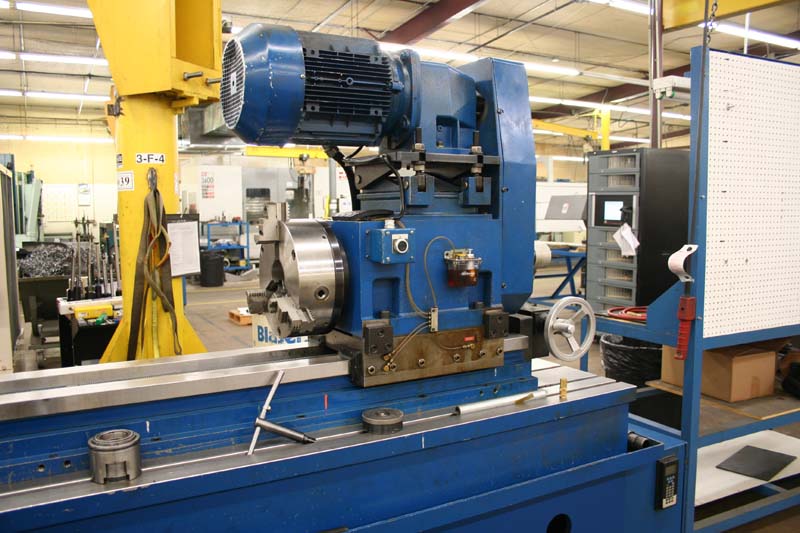

40" x 66" CNC Table, Extension Table with Auxiliary Work Slide and
Counter Rotating Spindle, Chip Conveyor, Coolant Chiller,

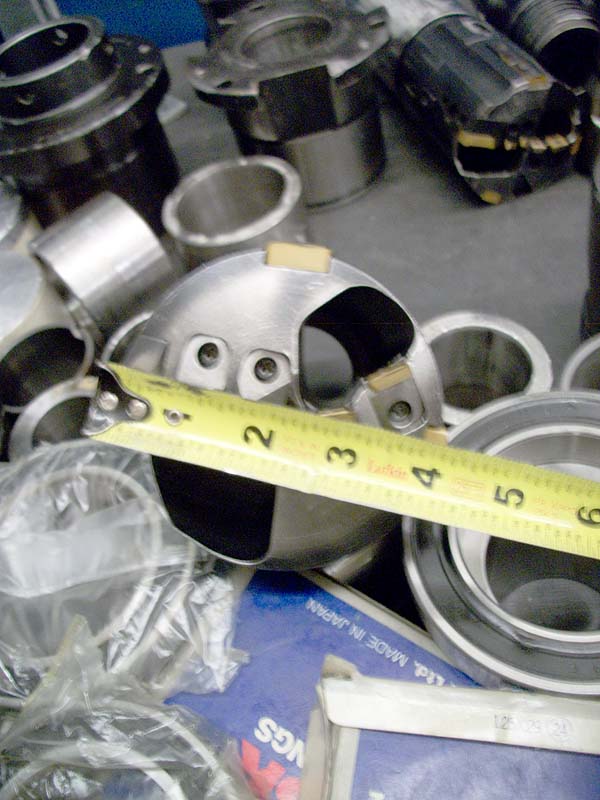

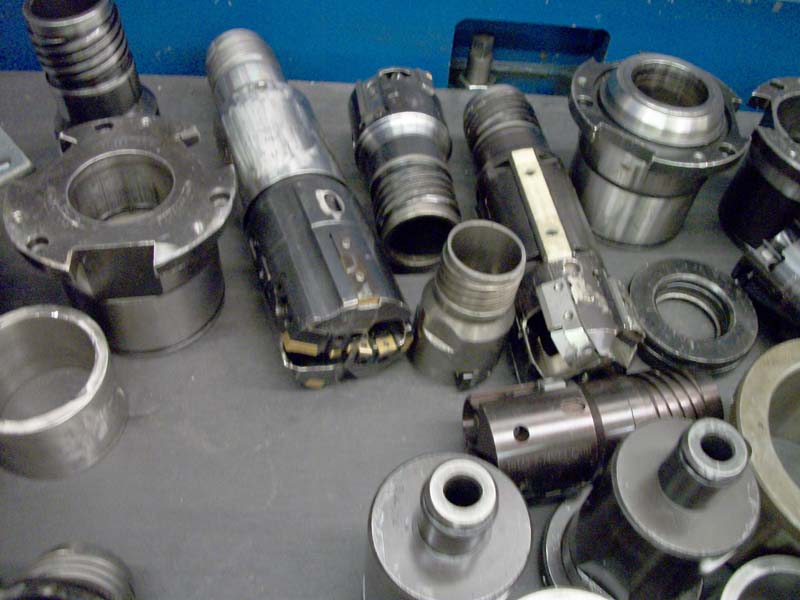

High Pressure Coolant Unit, Large Amount of Tooling, Heads, and
Bushings.
CATALOGUE SPECIFICATIONS:
Minimum Drilling Capacity In Solid Blank............... .093"
Maximum Drilling Capacity In Solid Blank............... 3"
Maximum Drilling Capacity Counter Bore or Trepan....... 4.3"
Maximum Drilling Depth................................. 80"
Table Size............................................. 40" x 66"
Travel of Counter Rotation Spindle..................... 40"
Max Distance Drill Face to Counter Rotation Spindle.... 84"
Table Load Capacity.................................... 11,000 lbs
Spindle Drive.......................................... 50 HP
Approximate Dimensions................................. 390" x 120"
Approximate Height..................................... 94"
Approximate Weight..................................... 36,000 LBS
CONDITION: Machine Appears to be in Excellent Condition !
