Mazak Vortex 5-Axis CNC Vertical Machining Center

Stock Number K15826

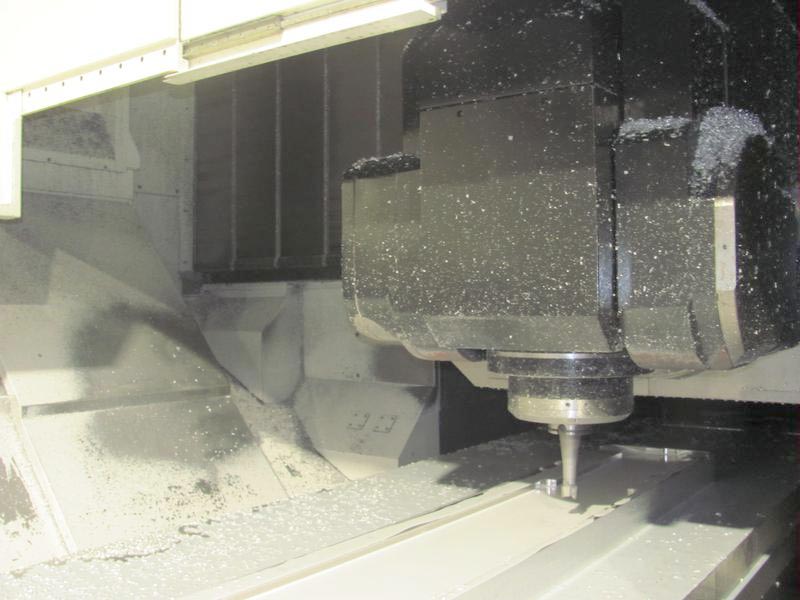

ACTUAL PHOTOS

                   MAZAK VORTEX 5-AXIS CNC VERTICAL MACHINING CENTER
                                          Model 1400/160-ii 5-Axis, New 2013
                                                           Stock # K15826


EQUIPPED WITH:

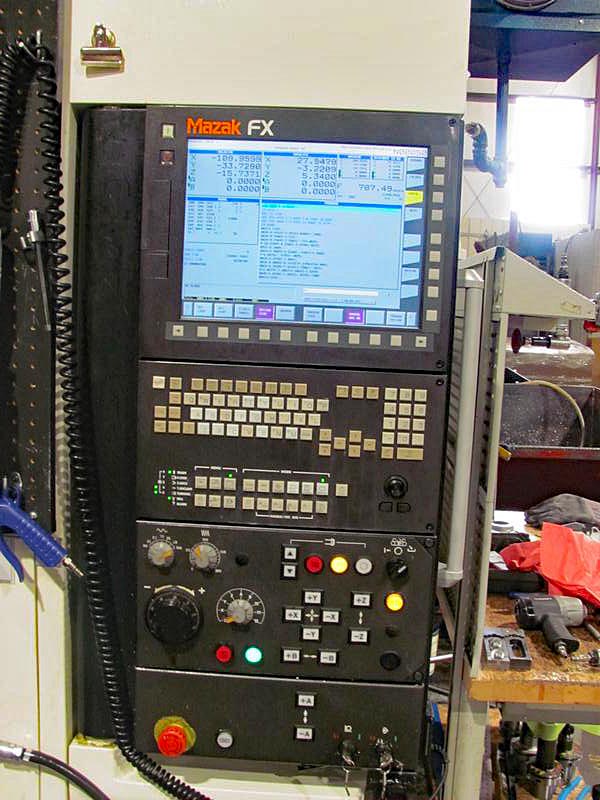

Mazak FX (Fanuc 31i) CNC Control, Full 5-Axis Contouring,
5-Axis Cutter Comp, Many Control Options, Ball Screw Cooler
for X,Y and Z Axis, Spindle Chiller, 60 Station Automatic
Tool Changer, HSK100, 12,000 RPM Spindle, Auto Tool Length
Measurement Tool Retracts & Recovers, Tool Offset Memory C,
Chip Conveyor with Right Disposal.

CATALOG SPECIFICATIONS:
Table Size..................................................... 157" x 49.2"
X Axis Travel................................................. 165.35"
Y Axis Travel................................................. 55.12"
Z Axis Travel................................................. 24.02"
A Axis Travel................................................. +/- 40 DEG
B Axis Travel................................................. +/- 40 DEG
Spindle Motor................................................ 50HP
Spindle Taper................................................ HSK100
Spindle Speeds............................................ 150 - 12,000 RPM
Tool Changer Capacity.................................. 60
Feed Rates................................................... 1260 IPM
Spindle Nose to Table Surface...................... 7.9" - 30.91"
Approximate Machine Dimensions............... 437" x 157"
Approximate Max Machine Height................ 155"
Approximate Machine Weight....................... 66,150 LBS

CONDITION: From a Large Aerospace Shop.
                      Cut Only Aluminum !
