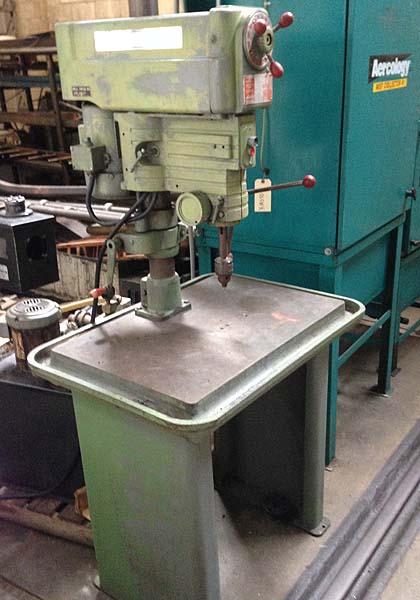

15" POWERMATIC ROUND COLUMN PRODUCTION TABLE DRILL

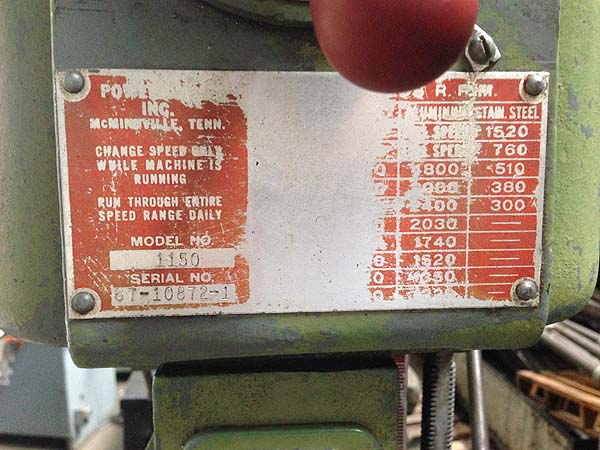

Model 1150, New 1967, S/N 67-10872-1
Stock# K14541

EQUIPPED WITH:
3/4 HP Spindle Motor, Elevating Drill Head on Column, Drill Head Swivels
on Column, Variable Speed, 30" x 20" Production Table with Oil Trough,


CATALOGUE SPECIFICATIONS:
Capacity Swing ........................................ 15"
Distance Column to Spindle Center...................... 7-3/4"
Maximum Distance from Spindle to Table................. 25"
Minimum Distance from Spindle to Table................. 0"
Vertical Adjustment Of Spindle Arm..................... 16"
Vertical Travel of Spindle............................. 6"
Working Surface of Table .............................. 30" X 20"
Column Diameter ....................................... 3"

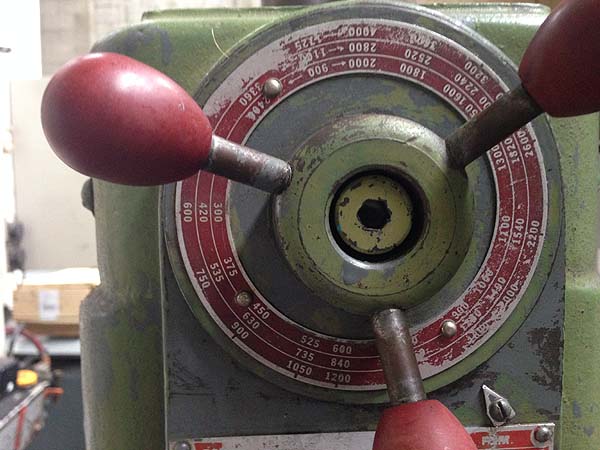

Spindle Speeds......................................... 475-4800
Spindle Bored to Fit Morse Taper....................... No. 2

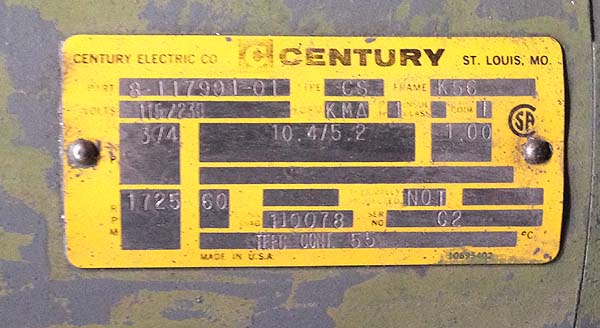

Spindle Motor ......................................... 3/4 HP
Electrics.............................................. 230/1/60
Approximate Machine Dimensions ........................ 25" x 34"
Approximate Machine Height ............................ 90"
Approximate Machine Weight ............................ 1,350 LBS

Condition: From an Air Force Base Repair Facility. Used Very Little.
Appears to be in Very Good Condition !
