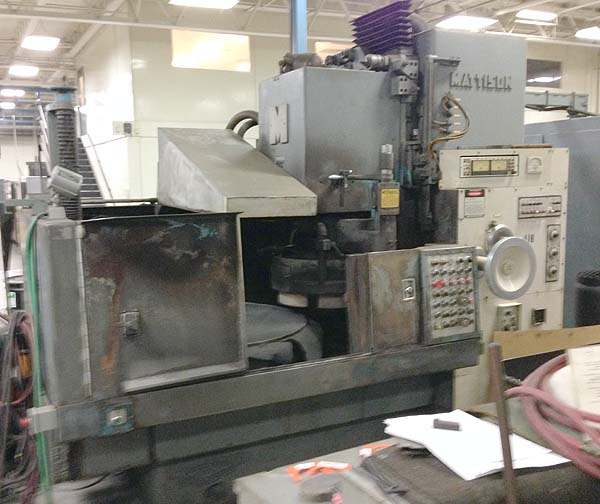

48" MATTISON VERTICAL SPINDLE ROTARY SURFACE GRINDER
Model 24, New 1984, S/N 24-776, Stock # K14314

EQUIPPED WITH:
48" Magnetic Chuck, 24" Segmented Grinding Wheel, 75 HP Spindle Motor
Option (50 HP is Standard), Load Meter, Automatic Continuous Downfeed,
Automatic Cycles, Automatic Coarse, Fine Feeds, Spark-out Timer, Marposs

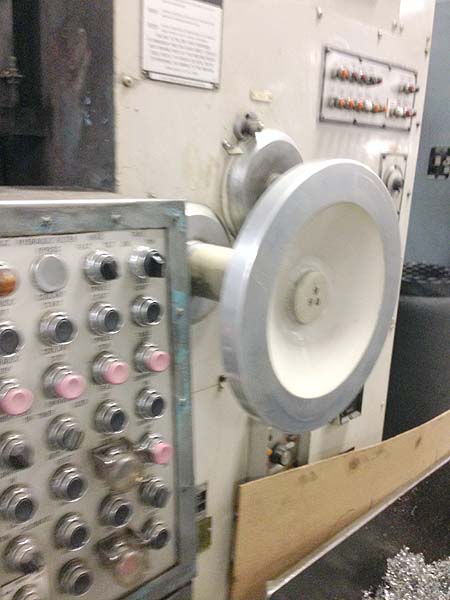

Gauging System, Power Rapid Traverse, Hand Wheel for Manual Downfeed,
Spindle Tilt, Central Lube System, Coolant System.

CATALOGUE SPECIFICATIONS:
Magnetic Chuck, Holding Diameter..................... 48"
Swing Inside Coolant Guards.......................... 64
Grind to Center Diameter............................. 48"
Vertical Capacity.................................... 24"
Chuck Rotation Variable Speed........................ 6-28 RPM
Grinding Wheel Size.................................. 24"
Grinding Wheel Speed................................. 600 RPM
Feed Rate, Variable.................................. .005 - .165" IPM
Spindle Motor........................................ 75 HP (50 HP Std)
Electrical System.................................... 480/3/60
Approximate Machine Dimensions....................... 168" x 110"
Approximate Machine Height........................... 112"
Approximate Machine Weight........................... 22,000 LBS

CONDITION: From Large Aerospace Facility
Machine Appears to be in Excellent Condition !
