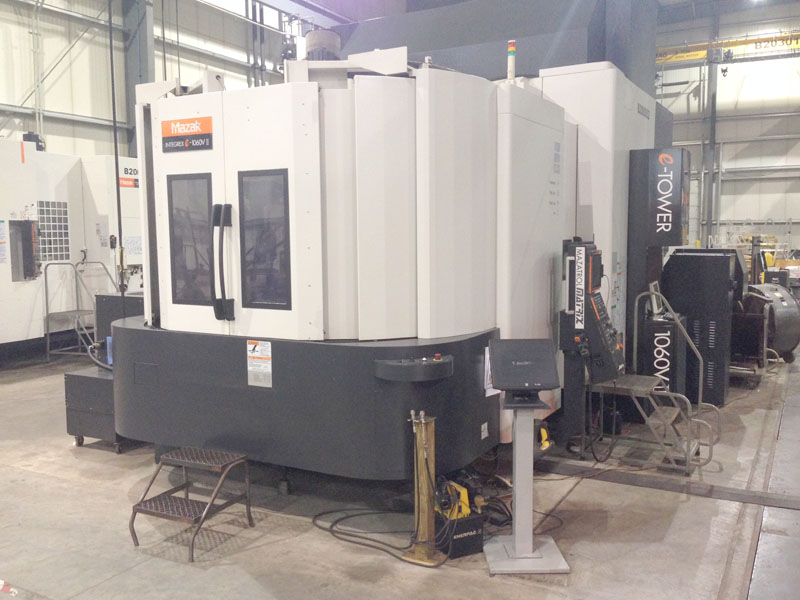

MAZAK INTEGREX e-1060V8ii Multi Function CNC Turning / Milling Center

Stock Number K14305

ACTUAL PHOTOS

EQUIPPED WITH:
Mazak Matrix CNC Control with Color CRT, Mazatrol Conversational
Programming, Full 5-Axis Simultaneous Control, 5-Axis Tool Length and
Cutter Comp, Multiple Part Program Storage, Ethernet, Hand Held

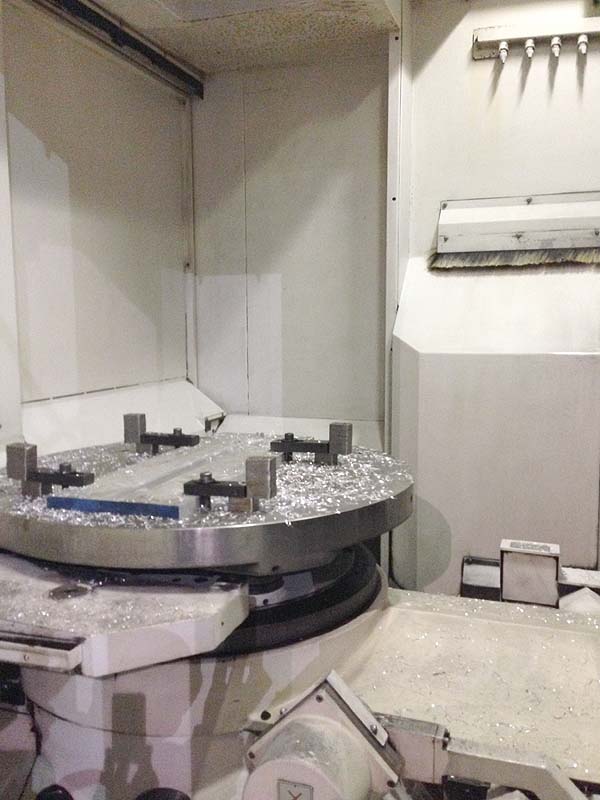

Pendent, Automatic Pallet Changer, Load/Unload Station, Two 39" Diameter
Pallets, Full Contouring 4th-Axis Pallet Rotation, Full Contouring
5th-Axis Spindle Tilt, Tool Setting Probe, Mazak e-Tower, Adaptive Feed
Control, Pallet Can Rotate at 500 RPM for Turning Applications, 80
Station Automatic Tool Changer, Chip Conveyor, Coolant System.



CATALOGUE SPECIFICATIONS:
Longitudinal Table Travel (X-Axis)................... 73.82"
Vertical Travel (Y-Axis)............................. 41.73"
Head Cross Travel (Z-Axis)........................... 52.9"
Spindle Tilt (A-Axis)................................ 150 Deg
Pallet Rotation (B-Axis)............................. 360 Deg
Max Turning Diameter................................. 49.2"
Pallet Dimensions.................................... 39.4"Diameter
Number of Pallets.................................... 2
Pallet Rotational Speed (Turning).................... 1 - 500 RPM
HP of Turning Spindle................................ 50 HP
Rapid Traverse, All Axes............................. 1653 IPM
Milling Spindle Horsepower........................... 50 HP
Spindle Speed Range.................................. 20-10,000 RPM
Spindle Taper........................................ #50 CAT
Number of Tool Positions............................. 80
Electrics ........................................... 460/3/60
Approximate Machine Dimensions....................... 269" x 249"
Approximate Machine Height........................... 141"
Approximate Machine Weight........................... 86,000 LBS



CONDITION: Appear to be in Like New Condition !
