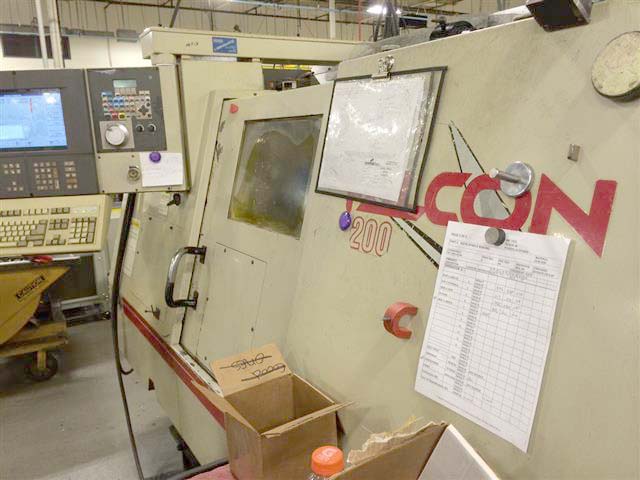

CINCINNATI MILACRON FALCON 200 CNC TURNING CENTER

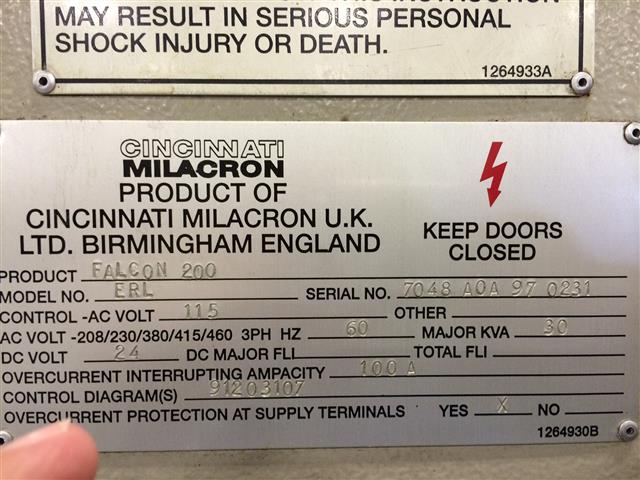

               Model Falcon 200, New 1997, S/N 7048A0A-97-0231
                                          Stock# K14302



 EQUIPPED WITH:

 Siemens Acramatic 2100 CNC Control, Touch Screen Programming with RAP
Conversational Programming, RS-232 Port and 3-1/2" Floppy Drive for
Uploading M and G Code Programs, Fanuc 0 Program Translation,
Spindle Load Meter, Realtime Enhanced Performance, Advanced Programming,
User Define M-Codes, Tailstock, 8.25" 3-Jaw Hydraulic Chuck, 12 Position
Tool Turret, Coolant System, Tooling Package.


CATALOGUE SPECIFICATIONS:

 Max Swing Over Bed...................................... 20.86"
Max Swing Over Carriage................................. 9.84"
Max Tailstock Position.................................. 17.5"
Max Machinable Center Distance.......................... 16.53"
Standard Chuck Size..................................... 8.25"
Cross Travel (X-Axis)................................... 8.45"
Longitudinal Travel (Z-Axis)............................ 16.53"
Feed Range (Infinitely Variable)........................ .01-630 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 2"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 40-4500 RPM
Spindle Horsepower...................................... 15 HP
Approximate Machine Dimensions.......................... 109" x 55"
Approximate Machine Height.............................. 77"
Approximate Machine Weight.............................. 6,600 LBS



CONDITION:  Machine Comes From a Very Clean Shop and Appears
            to be in Very Good Condition !
