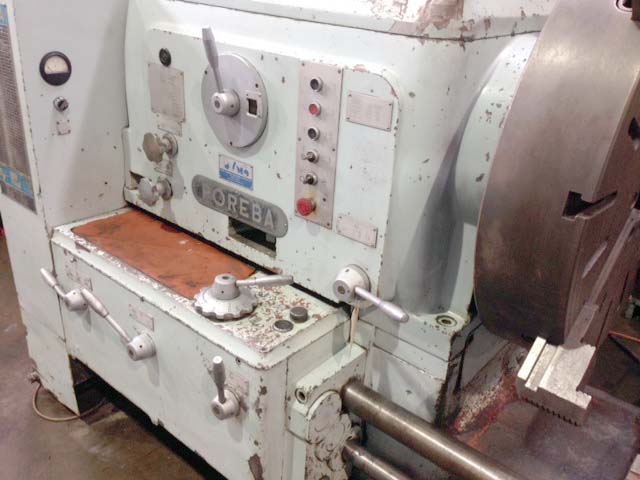

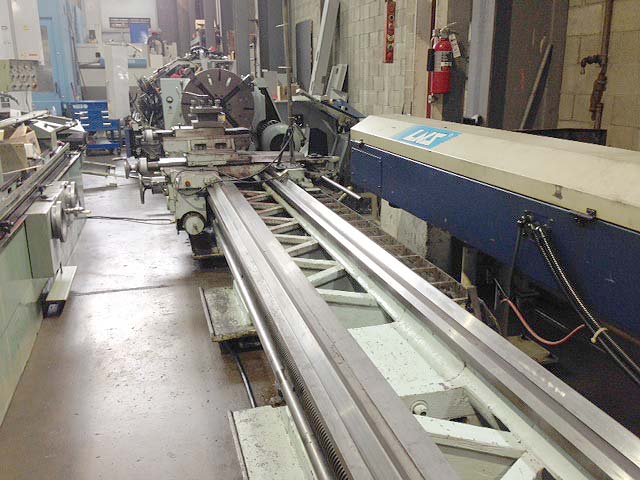

40" X 240" POREBA GAP BED ENGINE LATHE
Model TR100B1/6M, New 1978
Stock #K14298
EQUIPPED WITH:

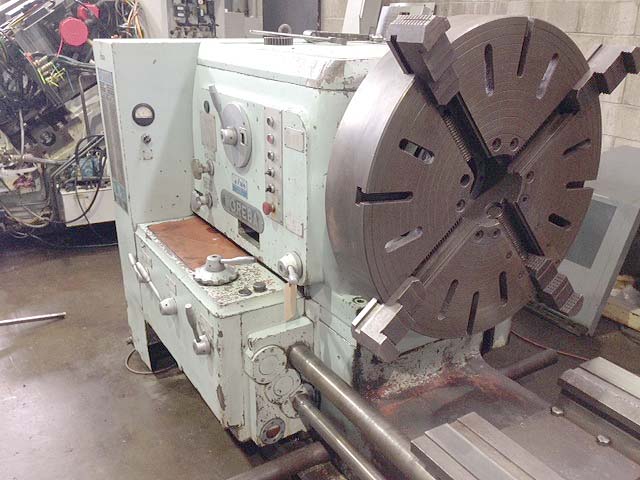

31" 4-Jaw Chuck, Face Plate, (3) Steady Rest, Follow
Rest, Coolant Pans,
Inch / Metric Threading, Taper Attachmnet,

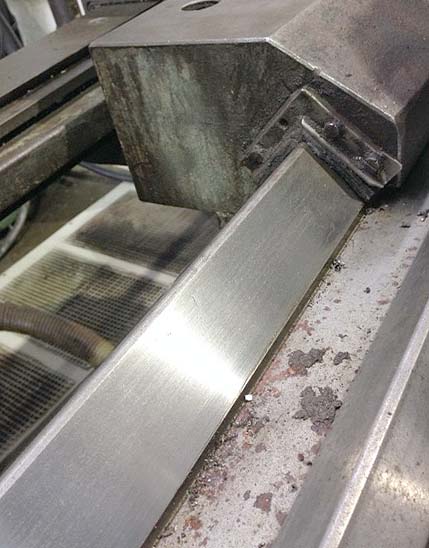

Induction-Hardened Guideways,
Rapid Traverse for Carriage, Misc Boring Bars and
tools, Central
Lubrication for Guideways, Coolant System.
CATALOGUE SPECIFICATIONS:
Maximum Swing Over Bed...............................
40"
Maximum Swing in Gap.................................
54"
Maximum Swing Over Carriage..........................
26-3/4"
Turning Length in Gap................................
15-3/8"
Max. Distance Between Centers........................
240"
Hole Thru Spindle....................................
4-3/4"
Tailstock, Spindle Travel............................
12"
Tailstock, Spindle Diameter..........................
5-1/2"
Tailstock, Spindle Taper.............................
# 6MT
(21) Spindle Speeds, Range...........................
5 to 500 RPM
Spindle Nose, Type...................................
A1-11
Spindle Horsepower...................................
40/53 HP
Carriage Power Rapid Traverse........................
156 IPM
Threading Leads, Range...............................
.006" to .363 IPR
(51) Thread Changes, Range (Inch)....................
1/4 to 30 TPI
(62) Thread Changes, Range (Metric)..................
1 to 120 mm
Electrics ...........................................
440/220/3/60
Approximate Machine Weight...........................
32,625 LBS
CONDITION: Machine Appears to be in Very Good
Condition!
