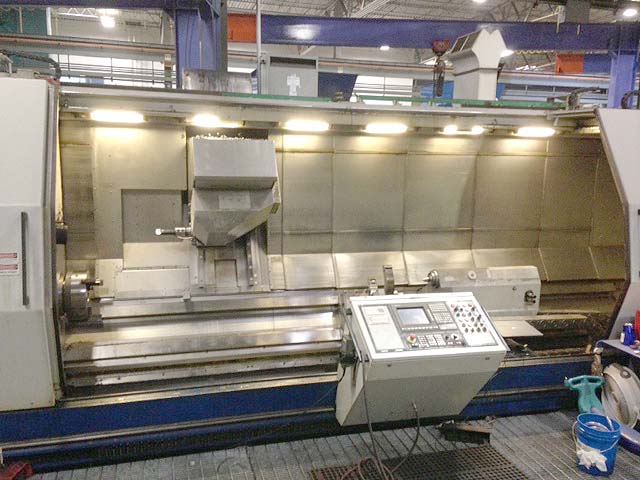

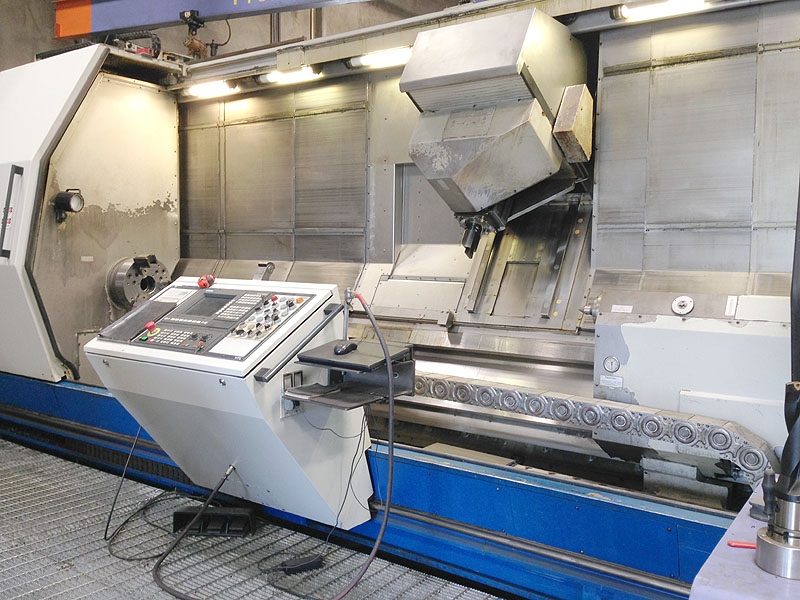

WFL
M60 x 4500 Heavy Duty
5-AXIS CNC TURNING/MILL CENTER
Model M60 x 4500, New
2003
Stock#
K14288
EQUIPPED WITH:
SIEMENS 840 CNC Control, Universal Milling and Turning
Head with Full
Contouring B-Axis, Y-Axis, Full C-Axis Spindle Rotation,
SMW Turn Thru
Hydraulic Steady Rest Mounted on Lower Power Slide, Heavy
Duty
Tailstock, 90 Station Automatic Tool Changer, 16" Power
3-Jaw Chuck,
Thru Spindle Coolant, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed
.................................. 25.5"
Max Turning Diameter Between
Centers....................... 23.62"
Max Turning
Length......................................... 177"
Cross Travel (X-Axis)
..................................... 27.56"
Longitudinal Travel
(Z-Axis)............................... 183.07"
Y-Axis
Travel..............................................
11.81"
B-Axis Spindle
Tilt........................................ +110/-90 Deg
C-Axis
Spindle............................................. .001
Deg
Tool
Positions............................................. 90
Total
Spindle Bore
.............................................. 3.1"
Spindle Nose
.............................................. A2-11
Spindle Speed Range
....................................... 30-3300 RPM
Spindle
Horsepower......................................... 53 HP
Live Tooling Speed
Range................................... 90-4000 RPM
Live Tooling
Horsepower.................................... 22 HP
Approximate Machine
Dimensions............................. 472" x 153"
Approximate Machine
Height................................. 129"
Approximate Machine
Weight................................. 66,000 LBS
CONDITION: Appears to be in Excellent Condition !
