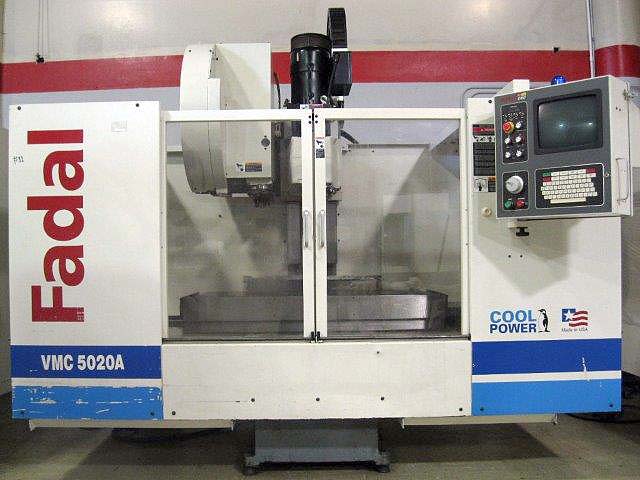

Catalogue Specifications:

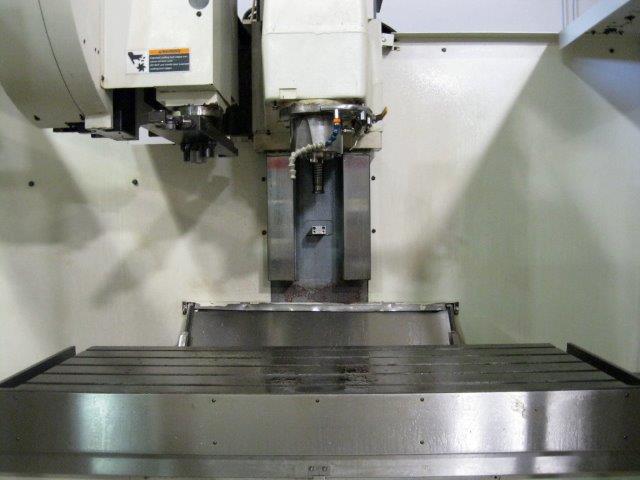

Table Size..................58" x 20"
Travels:
Longitudinal................50"
Cross.......................20"
Vertical....................20"
Cutting Feed Rate...........0.01 - 400 ipm (600 ipm @ 150%)
Rapid Feed Rate.............(X&Y) 900, (Z) 700 ipm
Max Table Weight............3,000 Lbs
Spindle Speeds..............7,500 RPM Variable
Spindle Torque..............220 ft-lbs
Spindle Taper...............Cat 40
Spindle Power...............22.5 HP
Spindle Nose To Table.......4" - 24"
Spindle Center to Column....20"

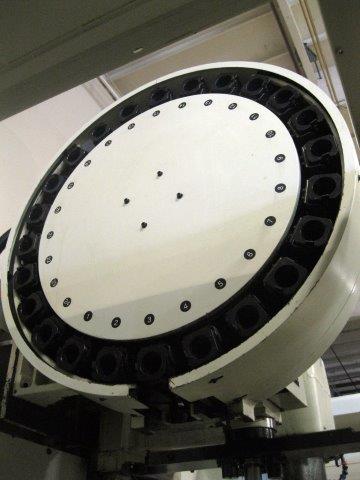

Tool Changer Positions......24 Side Mount ATC
Max Tool Diameter...........3"
Max Tool Length.............15"
Max Tool Weight.............15 Lbs

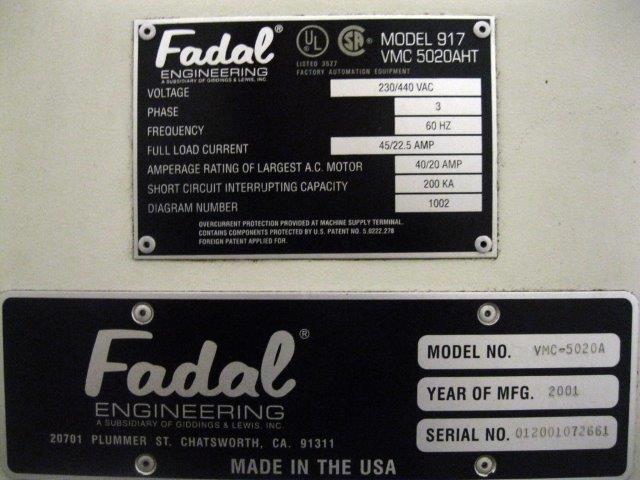

Electrics...................220/440v, 3ph
Air Requirements............80 - 120 psi, 15 scfm
Dimensions..................116" x 87" x 114"
