Equipped With:

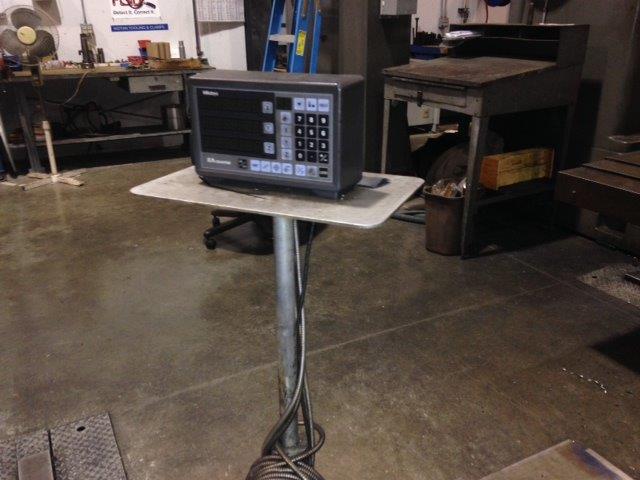

Mitutoyo Digital Read Out

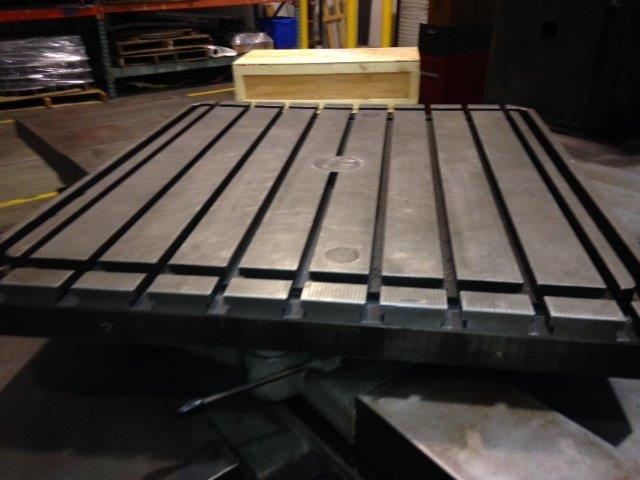

360 Deg. Power Rotary Table
Outboard Supports
Right Angle Head
Power Draw Bars
Steel Way Covers

Specifications:
Spindle Diameter.............5.11" (130 mm)
Travels:
Cross (X)....................85" (2159 mm)
Vertical (Y).................72" (1828 mm)
Saddle (Z)...................94" (2387 mm)
Quill........................48" (1219 mm)
Rotary Table Size............66.9" x 59.8" (1700 x 1518 mm)
Max Weight On Table..........18,000 lbs
Spindle Taper................#50
Spindle Speeds...............(33) 2.5 - 1,000 RPM
Spindle Motor................15 HP
