TOS VARNSDORF WHN-105NC
4" Spindle CNC Horizontal Boring Mill

Stock Number K14268

Tos Varnsdorf WHN 105NC Horizontal Boring Mill, Tos WHN Horizontal Boring Mill, 4" CNC Horizontal Boring Mill, Used Table Type Boring Mill For Sale, Toshiba, Kuraki

Tos Varnsdorf WHN 105NC Horizontal Boring Mill, Tos WHN Horizontal Boring Mill, 4" CNC Horizontal Boring Mill, Used Table Type Boring Mill For Sale, Toshiba, Kuraki

Tos Varnsdorf WHN 105NC Horizontal Boring Mill, Tos WHN Horizontal Boring Mill, 4" CNC Horizontal Boring Mill, Used Table Type Boring Mill For Sale, Toshiba, Kuraki

Tos Varnsdorf WHN 105NC Horizontal Boring Mill, Tos WHN Horizontal Boring Mill, 4" CNC Horizontal Boring Mill, Used Table Type Boring Mill For Sale, Toshiba, Kuraki

Tos Varnsdorf WHN 105NC Horizontal Boring Mill, Tos WHN Horizontal Boring Mill, 4" CNC Horizontal Boring Mill, Used Table Type Boring Mill For Sale, Toshiba, Kuraki

Tos Varnsdorf WHN 105NC Horizontal Boring Mill, Tos WHN Horizontal Boring Mill, 4" CNC Horizontal Boring Mill, Used Table Type Boring Mill For Sale, Toshiba, Kuraki

Tos Varnsdorf WHN 105NC Horizontal Boring Mill, Tos WHN Horizontal Boring Mill, 4" CNC Horizontal Boring Mill, Used Table Type Boring Mill For Sale, Toshiba, Kuraki

Tos Varnsdorf WHN 105NC Horizontal Boring Mill, Tos WHN Horizontal Boring Mill, 4" CNC Horizontal Boring Mill, Used Table Type Boring Mill For Sale, Toshiba, Kuraki

Tos Varnsdorf WHN 105NC Horizontal Boring Mill, Tos WHN Horizontal Boring Mill, 4" CNC Horizontal Boring Mill, Used Table Type Boring Mill For Sale, Toshiba, Kuraki

ACTUAL PHOTOS

VIDEO LINK

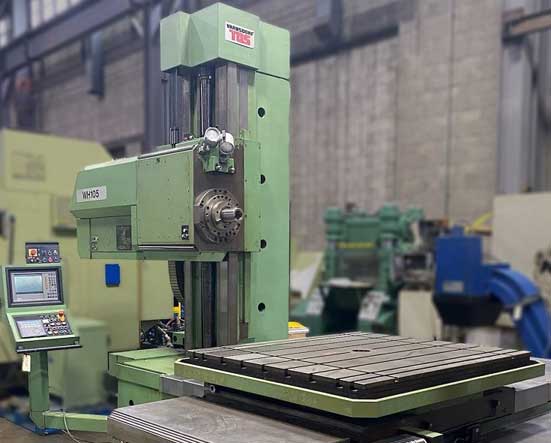

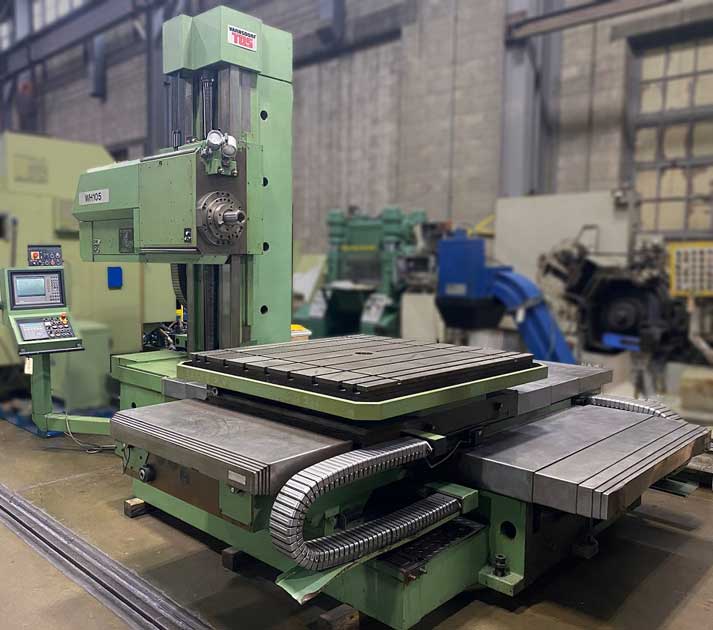

4" TOS VARNSDORF PROGRAMMABLE TABLE TYPE HORIZONTAL BORING MILL
                                      Model WHN-105NC, S/N 0310, New 1999
                                                          Stock # K14268



EQUIPPED WITH:
Heidenhain Positip 855 Programmable or Manual Control (see below), Optical

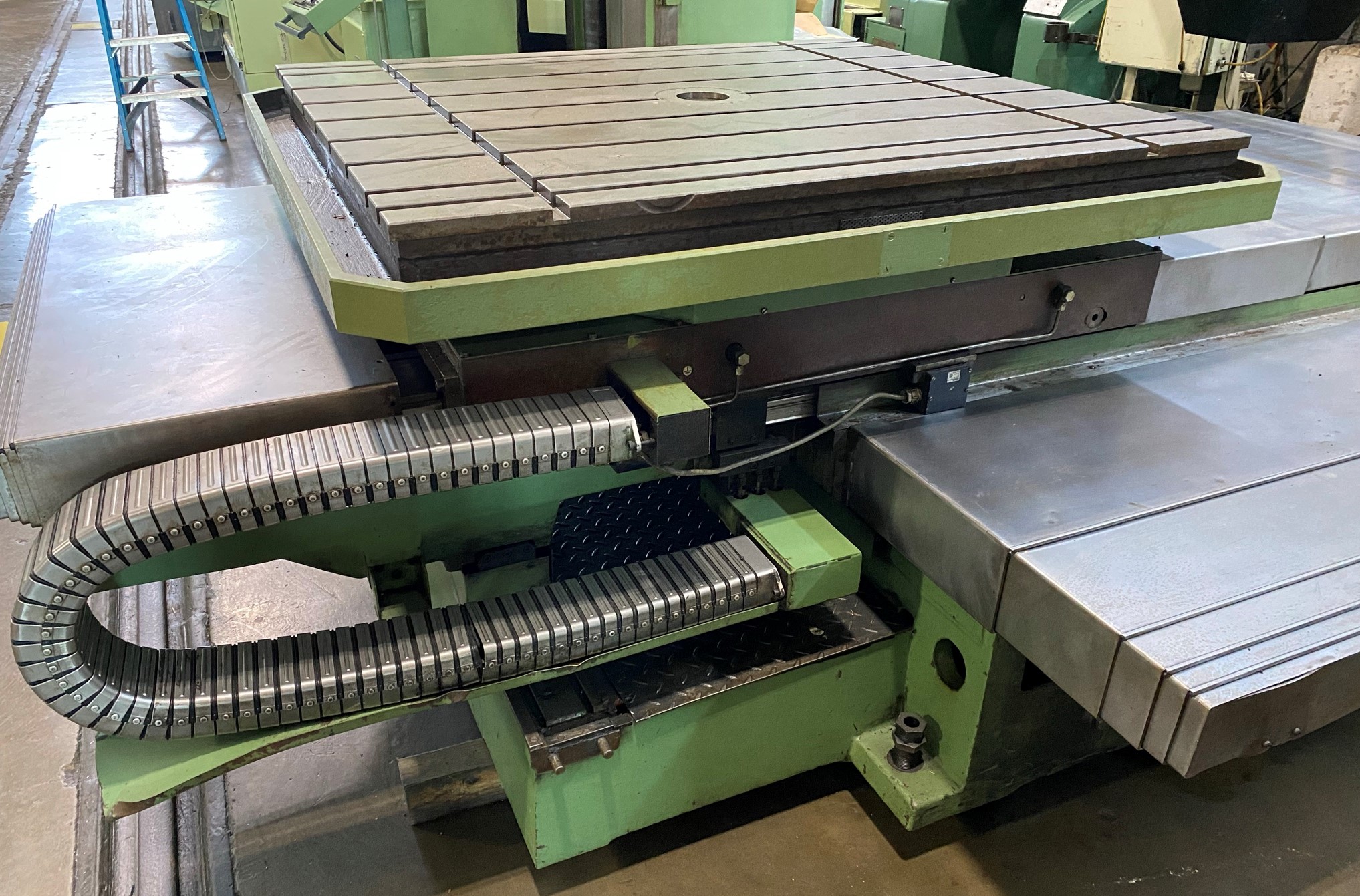

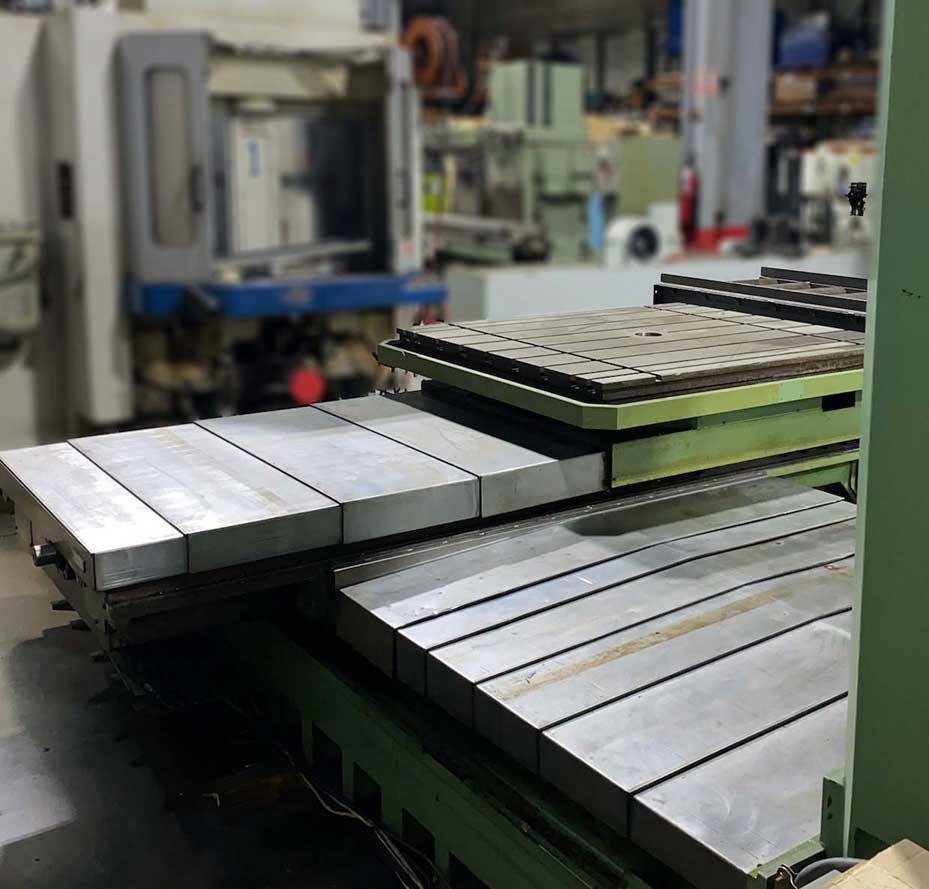

Reader for Precise 90° Positioning of the 49" x 57" Built-in Power Rotary
T-Slotted Table, Threading Capability, Heavy Duty 35 HP 50 Taper Spindle,
Precision Ball Screws, Hardened and Ground Ways, Coolant System.

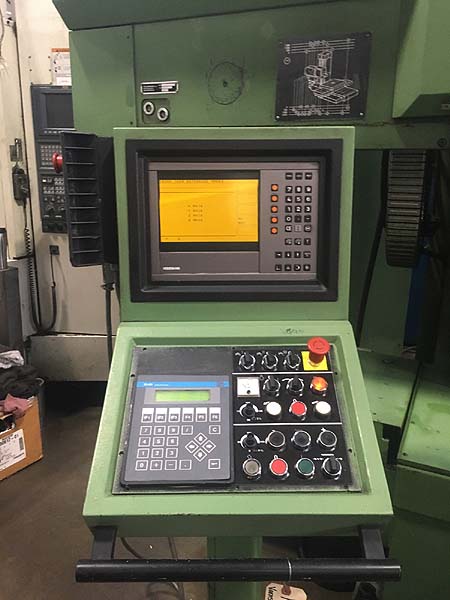

Heidenhain Positip 855 Programmable Control: Numerical and Graphic Display of
the Desired Machining Operation, Canned Cycles and Interpolation to Assist
Rectangular Pocket Milling, Slots, Threading and Bolt Hole Patterns including
Full Circle, Circle Segment and Linear Hole Patterns, 99 Datum Point Storage,
Program Storage for 22 Programs, Tool Data Storage. "Teach-in" Mode Creates
Program Coordinates in Memory Directly from the Tool Position thereby saving
lots of time.
NOTE: The above sophisticated control features are to assist Manual Machining
Operations. Once the Program is set up, the Operator selects DISTANCE-TO-GO
mode and simply runs the machine down to Zero-To-Go. This is a
Manual Machine with CNC-like features to make complicated machining easy.


CATALOG SPECIFICATIONS:
Spindle Diameter........................................................... 4.12"
Table Size...................................................................... 49.21" x 57.08"
Table Load Capacity...................................................... 9,000 LBS
X-Axis (Table Cross Travel)........................................... 70.86"
Y-Axis (Vertical Travel Above Std Machine Table)......... 49.21"
Z-Axis (Spindle (Quill) Travel)........................................ 25.59"
W-Axis (Saddle Longitudinal Travel).............................. 49.21"
B-Axis (Rotary Table Positions)..................................... 360 Degree
Spindle Taper................................................................. #50
Spindle Horsepower...................................................... 35 HP
Spindle Speeds ............................................................ 10 to 2240 RPM
Electrics......................................................................... 460/230/3/60
Approximate Machine Dimensions Assembled............. 130" x 200"
Approximate Machine Height........................................ 137"
Approximate Machine Weight........................................ 28,000 LBS


CONDITION: Brand New Spindle installed ! Machine Appears to be
                       in Excellent Condition!
