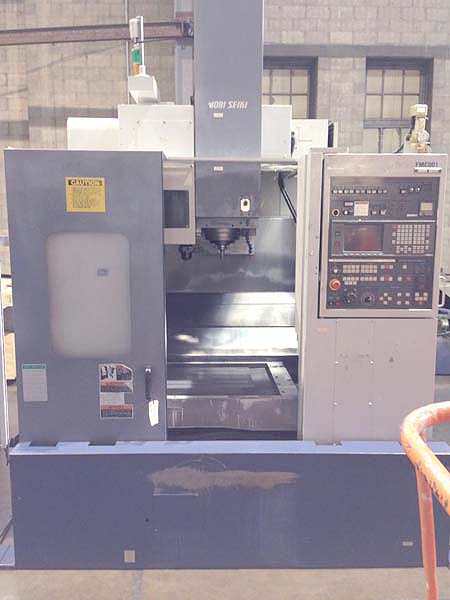

MORI SEIKI MV-40M CNC VERTICAL MACHINING CENTER
                      Model MV-40M, S/N 5080, New 1996
                                Stock# K14264



EQUIPPED WITH:

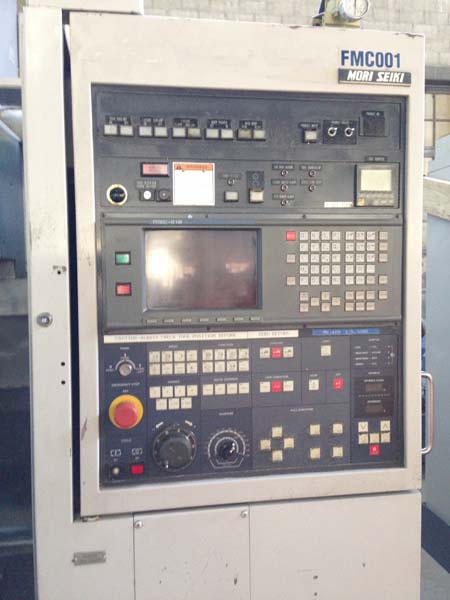

Mori Seiki MSC-518 CNC Control (Fanuc 18MB), Multiple Part Program
Storage, Canned Cycles, 20 Station Automatic Tool Changer, Automatic
Hydraulic Part Clamping, Full Coolant Enclosure, Chip Conveyor, and
Coolant System.



CATALOGUE SPECIFICATIONS:

X Travel (Longitudinal)............................... 22"
Y Travel (Cross)...................................... 16"
Z Travel (Vertical)................................... 18"
Table Working Surface................................. 35" x 17.7"
Table Work Load Capacity.............................. 660 LBS
Spindle Horsepower.................................... 10 HP
Spindle Speeds........................................ 30-8000 RPM
Spindle Taper......................................... #40 BT
Feed Rates,........................................... 0.1 to 400 IPM
Rapid Traverse ....................................... 400 IPM
Tool Storage Capacity................................. 20
Approximate Dimensions................................ 110" x 87"
Approximate Height.................................... 106"
Approximate Weight.................................... 12,000 LBS



CONDITION: Ran Aluminum Only !
           Machine Appears to be in Very Good Condition !
