EQUIPPED WITH:

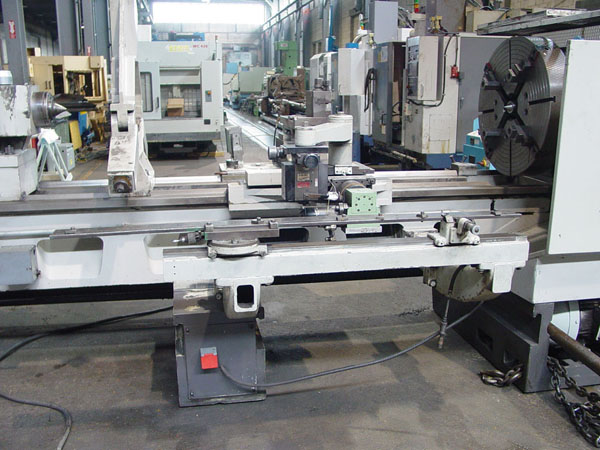

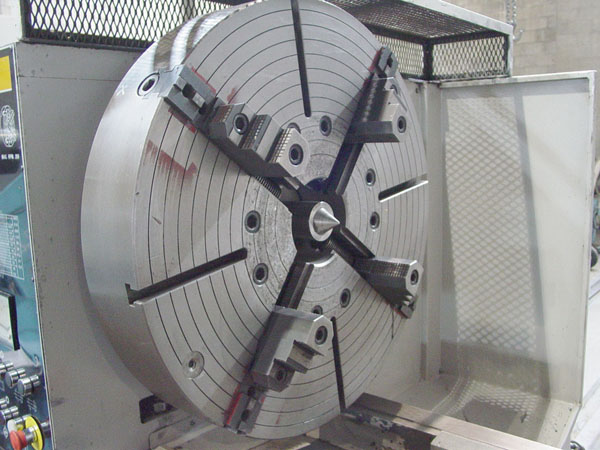

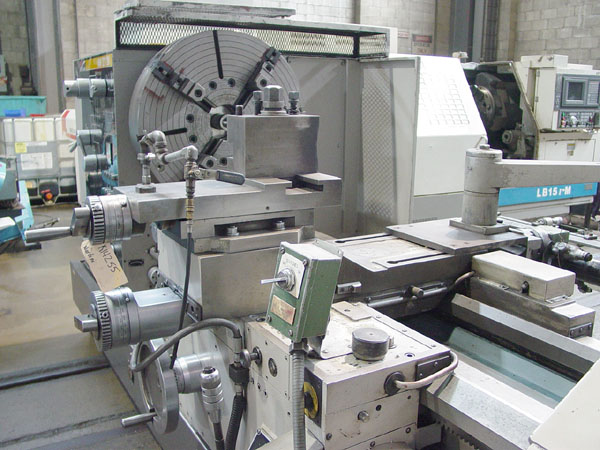

Tracer Attachment,  (1) Steady Rest,  (1) 28" 4 jaw Manual Chuck,  Rapid

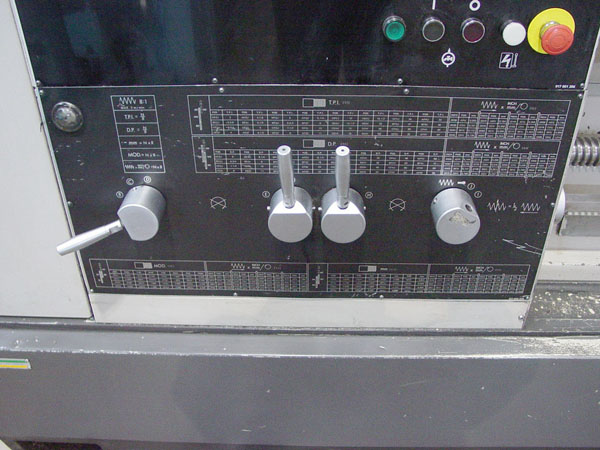

Traverse, Inch Metric Threading, Compound Cross Slide,  Coolant System
and Chip Conveyor.



Can be used with or with out the tracer attachment.



CATALOGUE SPECIFICATIONS:
Swing over the bed.................................32"
Swing over the wings of saddle.....................29 1/4"
Swing over the cross slide.........................22 3/8"
Swing in the gap...................................43"
Distance between centers...........................120"
Gap length in front of the chuck...................9 1/4"
Cross slide travel.................................19 1/2"
Top slide travel...................................8"
Spindle nose.......................................ASA A1-15
Spindle bore.......................................5 25/32"
Spindle internal taper.............................1:20
Taper in reduction sleeve..........................MT-6
Spindle speeds.....................................18
Speeds range.......................................6.3-500 rpm
Threads number.....................................96
Metric threads (16)................................0.6/8 mm
Inch threads   (32)................................44/3 TPI
Module threads (16)................................0.375 / 5 Mod
Diametral pith threads (32)........................6 / 88DP
Enlarged pitch threads system......................8:1
Longitudinal feeds (64) IN / Rev...................0.0034 / .0740
Cross feeds .......(64) IN / Rev...................0.0017 / .0370
Enlarged feeds system..............................8 : 1
Longitudinal rapid feed............................102 IN/Min.
Cross rapid feed...................................51 IN / MIN.
Main motor.........................................30 HP
Rapid traverse.....................................1 1/2 HP
Coolant unit motor.................................1/8 HP



CONDITION: From the Tool Room of a Large Power Plant.
           Appears to be in Excellent Condition !
