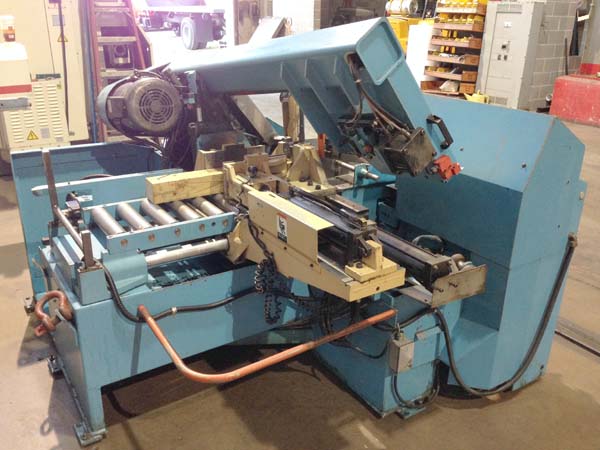

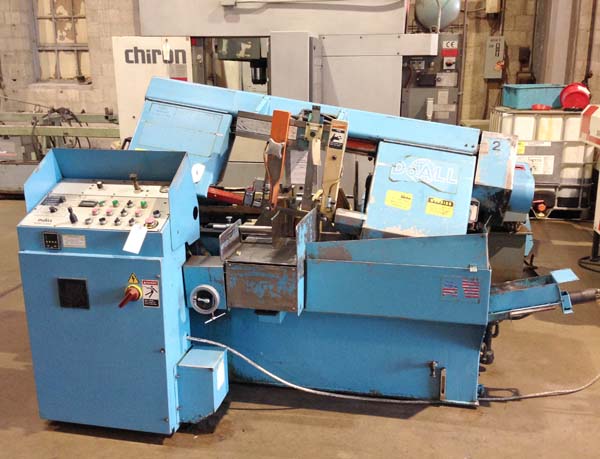

12" x 12" DOALL AUTOMATIC HORIZONTAL BAND SAW
Model C-305A S/N 534-98242, New 1998
Stock # K14238
EQUIPPED WITH:
Multi Index Stock Feed Vise with Digital Readout,
Hydraulic Vises,
Hydraulic Blade Tension Adjustment, Out of Stock Sensor,
Carbide
Blade Guides, Variable Speed Blade, Quick Adj. Blade
Guide Arms, Work Height Selector, Hydraulic Down Feed
Compensator
Controls, Internal Coolant Pump and Tank.
CATALOGUE SPECIFICATIONS:
Flat Stock Capacity Flat................................
12" x 12"
Round Stock Capacity....................................
15"
Blade Speeds, Infinitely Variable.......................
60 - 350 FPM
Maximum Blade Width.....................................
1-1/4"
Blade Length............................................
144"
Blade Drive Motor....................................... 5
HP
Hydraulic Motor......................................... 2
HP
Electrics...............................................
440/3/60
Approximate Dimensions..................................
86" X 100"
Approximate Height......................................
75"
Approximate Weight......................................
4,500 Lbs.
CONDITION: Machine is Available for Inspection Under
Power. Appears to
be in Very Good Condition !
