HEALD 273A Universal Internal Grinder

Stock Number K14177

Heald 273 Internal Grinder ID Grinder for sale

Heald 273 Internal Grinder ID Grinder for sale

Heald 273 Internal Grinder ID Grinder for sale

Heald 273 Internal Grinder ID Grinder for sale

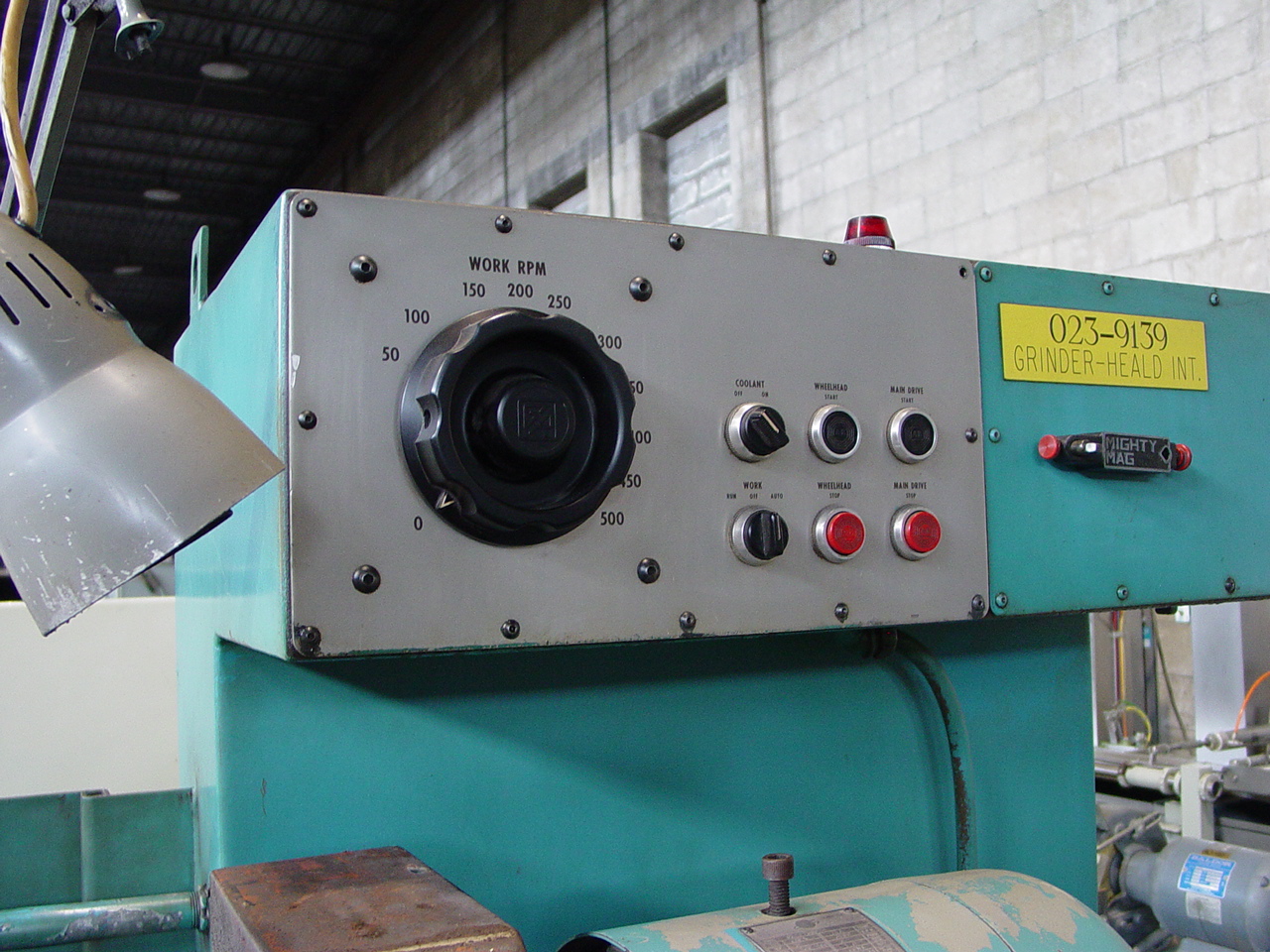

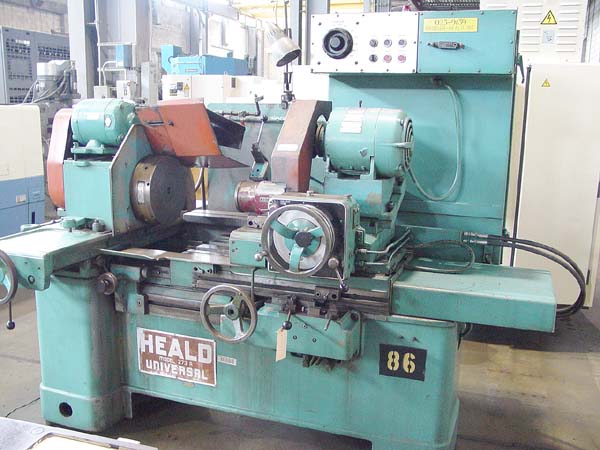

ACTUAL PHOTOS

Video Link


                 273A HEALD UNIVERSAL INTERNAL GRINDER
               Model 273A, New 1970, S/N 44177, Stock# K14177

EQUIPPED WITH:

Facing Attachment, Workhead Angular Setting Device, Workhead Positioning
Stop, Sine Bar Swivel Attachment with Indicator, Redhead Spindle, 10"
Magnetic Chuck, Variable Speed Workhead, Swing Down Wheel Dresser,
Coolant Pump and Tank.

CATALOGUE SPECIFICATIONS:

Swing Over Table, Maximum.............................. 24-1/2"
Swing Inside Coolant Splash Guard, Maximum............. 20"
Table Longitudinal Travel.............................. 20"
Table Longitudinal Feeds, Variable..................... 0-18 FPM
Grinding Stroke, Maximum............................... 16"
Wheelhead Cross-Sliding Travel......................... 1-1/2"
Angular Adjustment of Workhead......................... 90 Degrees
Maximum Clearance Cross Slide Face to Spindle Flange .. 30"
Workhead Longitudinal Travel............................ 12"
Workhead Cross Travel.................................. 17"
Workhead Speeds, Variable.............................. 0-500 RPM
Wheelhead Motor, Horsepower............................ 5 HP
Workhead Motor, Horsepower............................. 1-1/2 HP
Hydraulic Motor, Horsepower............................ 1/2 HP
Coolant Motor, Horsepower.............................. 1/4 HP
Approximate Machine Dimensions......................... 91"x96"
Approximate Machine Height............................. 75"
Approximate Machine Weight............................. 7,000 LBS

CONDITION: Appears to be in Excellent Condition !
