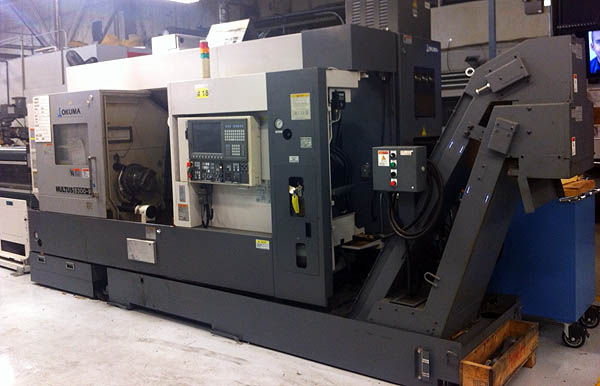

OKUMA MULTUS B300W Big Bore CNC TURNING CENTER
      with Universal Head, Live Tooling, Y-Axis and Sub-Spindle
             Model Multus B300W, New 2008, Stock# K14156



Equipped With:
OKUMA OSP P200L CNC Control, Big Bore Option A2-8 nose  (38-3800 RPM,
30/20HP), 10" Kitagawa Chuck Package,40 Station Automatic Tool Changer
CAPTO C6 Spindle Taper, Parts Catcher, Parts Catcher for the Opposing
Spindle, Thru Spindle Coolant, Renishaw Auto Gauging, Tool Setter, Hi-G
Control, Lathe Tool Indexing, Plane Conversion, Profile Generation,
Rigid Tap, Helical Cutting, Y-Axis Scale, .0001m Programming, Barfeed
Interface, Tool Management System, Mist Collection System,  Consept 2000
Chip Conveyor, High Pressure 1000 psi Coolant System, LNS Quick Load III
Barfeeder.

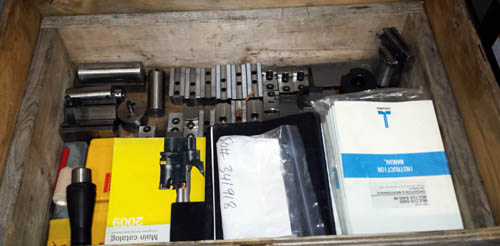

Too Many Options to List ! Includes Large Tooling Package !



Specifications:



CATALOGUE SPECIFICATIONS:
Max Swing Over Saddle....................................... 24.80"
Max Machining Diameter...................................... 24.80"
Max Working Distance Between Spindles....................... 35.43"
Cross Travel (X-Axis)....................................... 22.83"
Longitudinal Travel (Z-Axis)................................ 36.80"
Y-Axis Travel .............................................. 6.299"
B-Axis Universal Head Swivel................................ 225 Degree
W-Axis Sub-Spindle Slide.................................... 33.46"
C-Axis on Both Spindles..................................... .001 Degree
Tool Positions ............................................. 40 Total
Spindle Bore ............................................... 3.1"
Spindle Nose ............................................... A2-8
Spindle Speed Range ........................................ 50-3800 RPM
Opposed Spindle Range ...................................... 38-5000 RPM
Spindle Horsepower Both Spindle............................. 20 HP Each
Live Tooling Speed Range.................................... 90-10000RPM
Live Tooling Horsepower..................................... 15 HP
Approximate Machine Dimensions.............................. 166" x 90"
Approximate Machine Height.................................. 102"
Approximate Machine Weight.................................. 24,000 LBS

CONDITION:  Appears to be in Excellent Condition !
