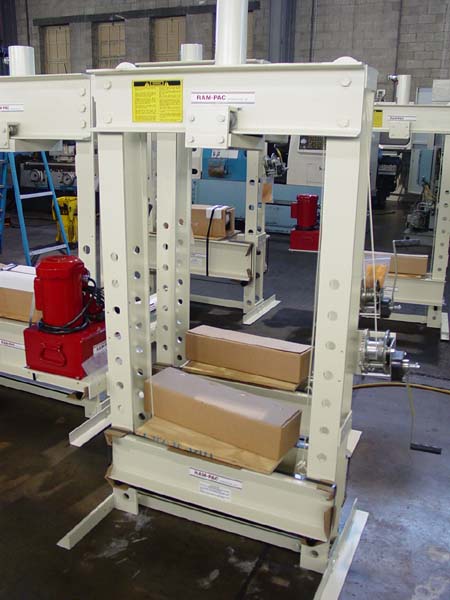

EQUIPPED WITH:

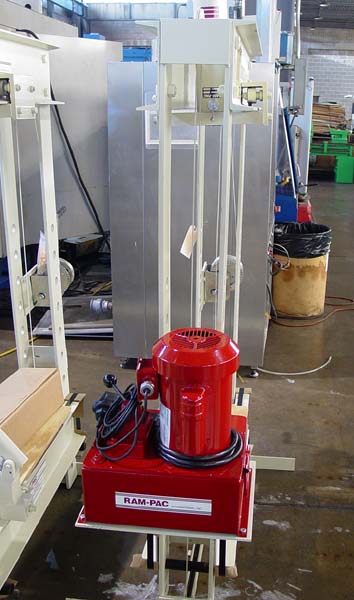

H-Frame Design, RamPac RC-30-DA Double Acting Hydraulic Cylinder, RamPac
902X Hydraulic Unit with Pendent Control, Hand Crank for Bed Elevation,
11-1/2" x 36" Bed, Adjustable Vertical Height of Bed, Ram Adjustable
Right to Left on Frame, Quality Heavy Duty Construction.
Made in the USA !


CATALOGUE SPECIFICATIONS:



Tonnage Capacity.......................................... 30 Tons
Bed Area.................................................. 11-1/2" x 36"
Between Uprights.......................................... 28"
Maximum Pressure.......................................... 10,000 PSI
Maximum Ram Stroke........................................ 16"
Maximum Height Under Cylinder............................. 43"
Minimum Height Under Cylinder............................. 5"
Ram Travel on Frame....................................... 22"
Electrics................................................. 110/3/60
Approximate Machine Dimensions............................ 22" x 58"
Approximate Machine Height................................ 78"
Approximate Machine Weight................................ 1100 LBS


CONDITION: Brand New !
