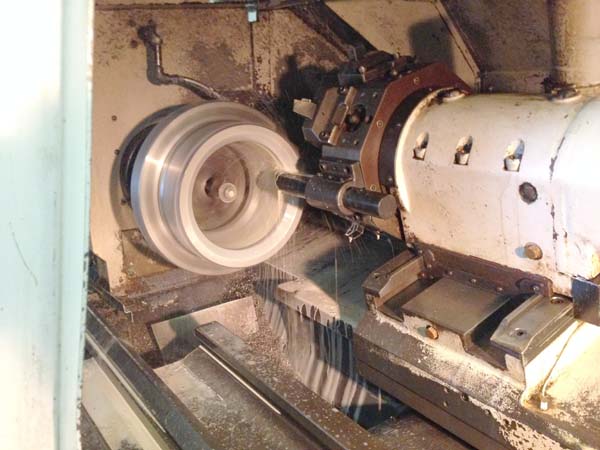

MORI SEIKI TL-40B CNC TURNING CENTER
                  Model TL-40B/3000, S/N 2076, New 1993
                              Stock # K14137



EQUIPPED WITH:



Mori Seiki Moric-T6F (Fanuc 16TF) CNC Control w/CRT, Color Graphics, Spindle Load Meter,
Manual Pulse Generator, RS-232 Port,  Steady Rest, 12" 3-Jaw Hydraulic Chuck, 8 Position
Turret, Chip Conveyor and Coolant System.



CATALOGUE SPECIFICATIONS:



Max Swing Over Bed ..................................... 24"
Max Swing Over Carriage ................................ 15"
Max Turning Diameter.................................... 17.3"
Max Tailstock Position ................................. 147.6"
Max Machinable Center Distance ......................... 144.4"
Cross Travel (X-Axis) .................................. 9.3"
Longitudinal Travel (Z-Axis) ........................... 144.4"
Spindle Bore ........................................... 4.1"
Bar Capacity............................................ 3.6"
Rapid Traverse Feed Rate (X-Axis)....................... 236 IPM
Rapid Traverse Feed Rate (Z-Axis)....................... 472 IPM
Spindle Speed Range .................................... 20-2000 RPM
Spindle Nose............................................ A2-8
Spindle Drive Motor .................................... 30 HP
Tailstock Quill Diameter................................ #5 MT
Approximate Machine Dimension........................... 236" x 99.2"



Condition: Appears to be in Excellent Condition
