Equipped With:

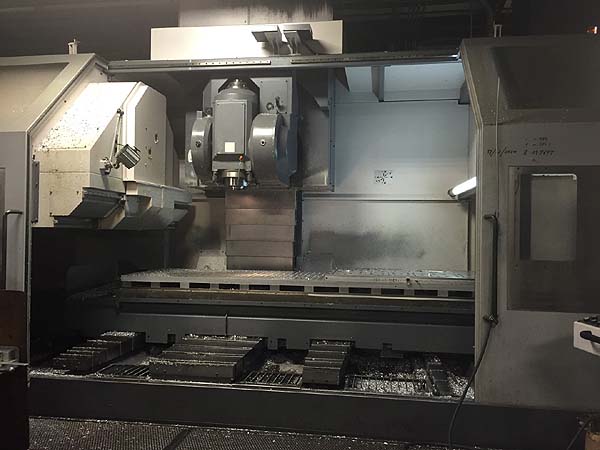

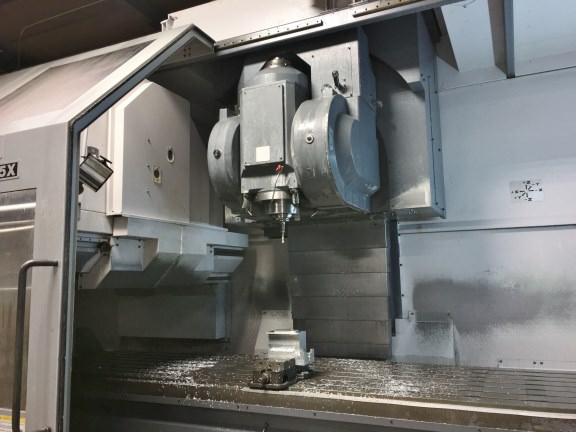

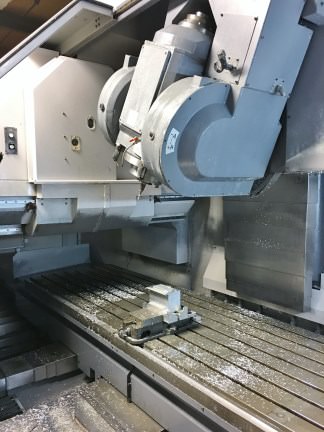

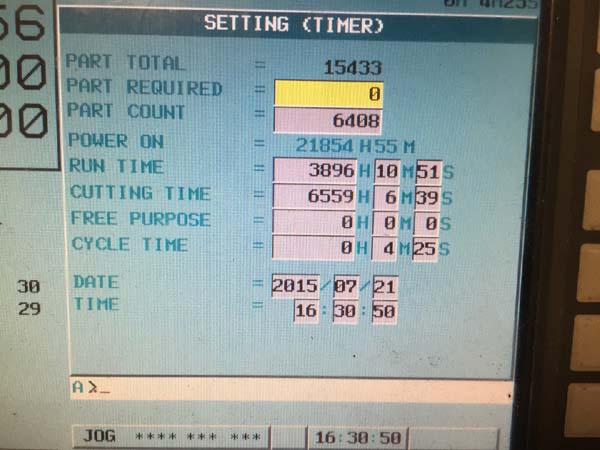

Fanuc 31i CNC Control, Full 5-Axis Contouring,

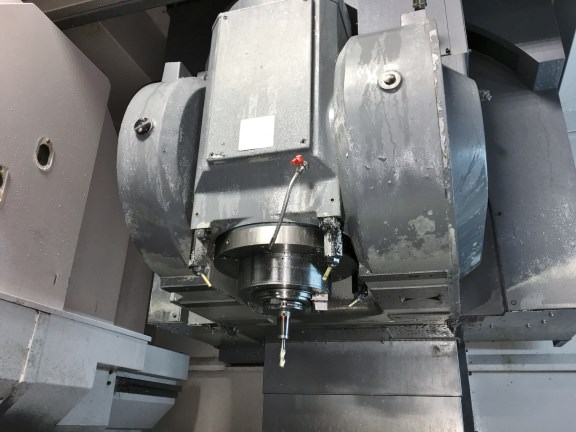

Heavy Duty 75 HP 50 Taper Spindle. Full Enclosure,

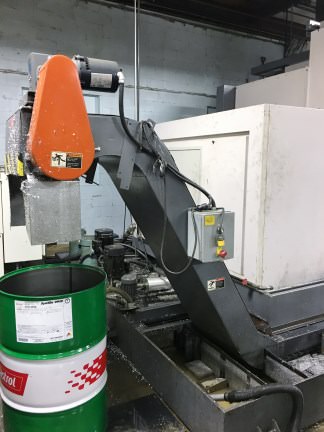

30 Station Automatic Tool Changer, Coolant System and Chip Conveyor.
Catalogue Specifications:
X-axis 120.08?
Y-axis 33.46?
Z-axis 27.56?
A-axis deg+35
B-axis deg+35

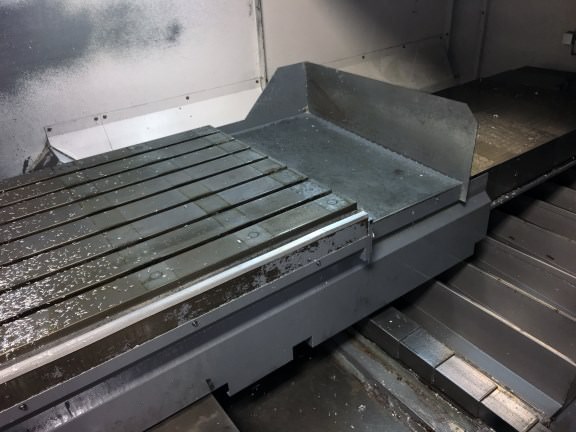

Table dimensions 125.99? x 33.47?
Max load on table 6,600 lbs
Spindle nose to table top 5.91 - 33.46
Spindle center to column sideway 36.61?
Floor to table top 42.52?
X/Y axes 1,181 IPM
Z axis 945 IPM
A/B axes deg/min 3,600
X/Y/Z axes 0.039 ? 945 IPM
A/B axes deg/min 1 - 2,400
Spindle bore taper No. 50
Spindle speed range 60 - 12,000 RPM
Spindle drive motor 75 HP
Max tool with adjacent 4.92?
without adjacent 7.87?
Max tool length 13.78?
Max tool weight 44 lbs
Magazine capacity tools 30
TCT sec 9 / 16
Height 130?
Floor space 339? x 179?
Machine weight 44,000 lbs.
