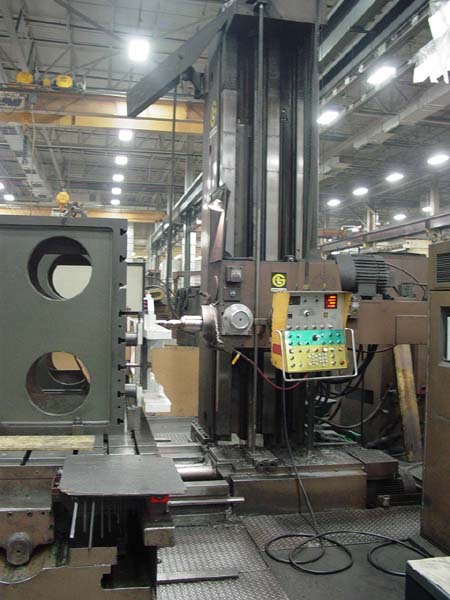

5" GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL
                 Model PC-5, New 1974, Stock# K13897



EQUIPPED WITH:

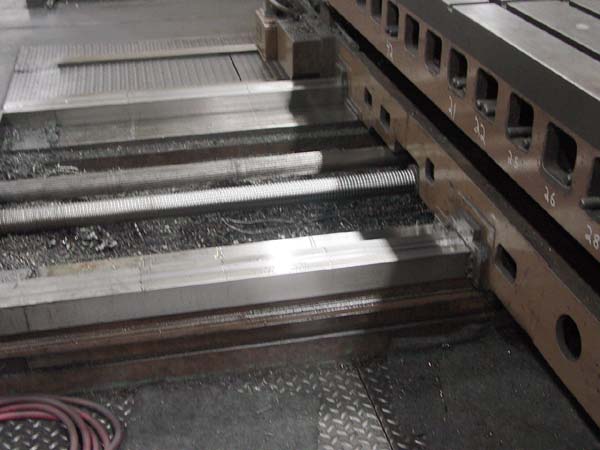

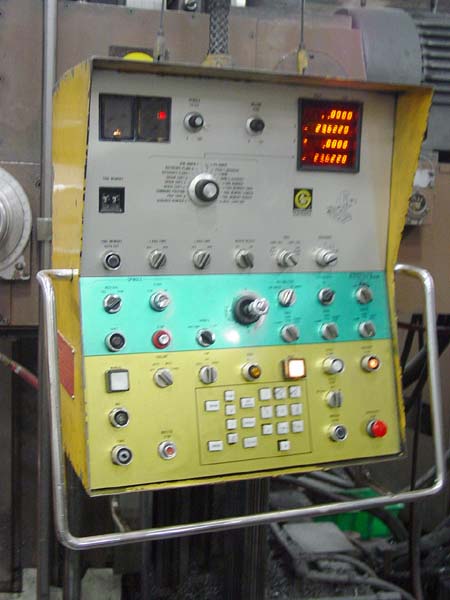

Giddings & Lewis Numeripoint 80P Point to Point Control, Ball
Screws on X, Y, & W Axis, Heavy Duty 50 Taper Spindle, Power Draw
Bar, Out Board Table Support.

CATALOGUE SPECIFICATIONS:

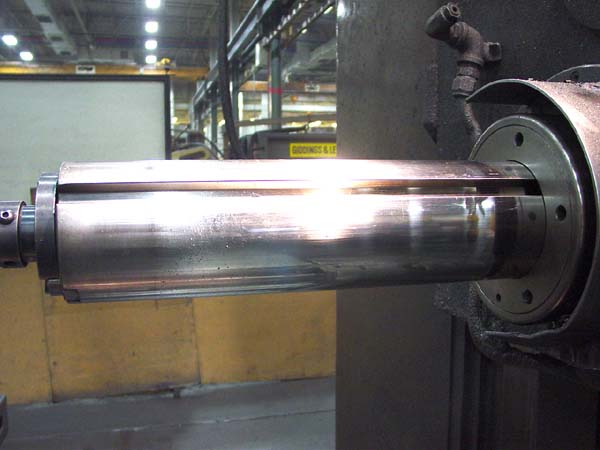

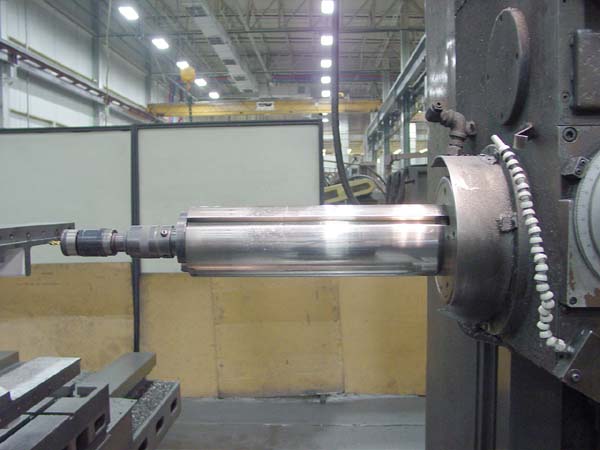

Spindle Diameter................................... 5"
Table Size......................................... 60" x 120"
Table Cross Travel (X-Axis)........................ 108"
Vertical Travel Above Std Machine Table (Y-Axis)... 72"
Spindle (Quill) Travel (Z-Axis)..................... 36"
Saddle Longitudinal Travel (W-Axis)................ 65"
Spindle Taper...................................... #50
Spindle Horsepower................................. 25 HP
Spindle Speeds .................................... 5.8 to 1120 RPM
Mill Feeds......................................... .0001 - .125 IPR
Milling Feeds...................................... .16 - 140 IPM
Electrics.......................................... 460/3/60
Approximate Machine Dimensions..................... 241" x 176"
Approximate Machine Height......................... 141"
Approximate Machine Weight......................... 55,000 lbs



CONDITION:  This Machine Appears to be in Excellent Condition!
