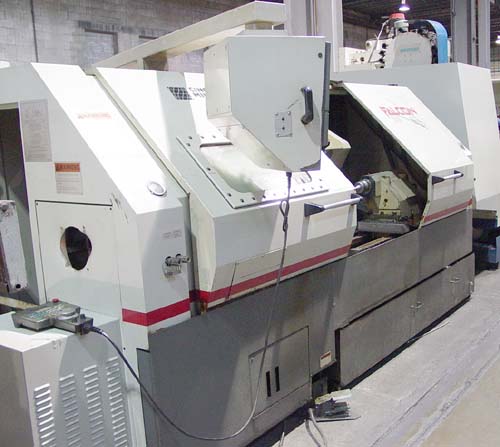

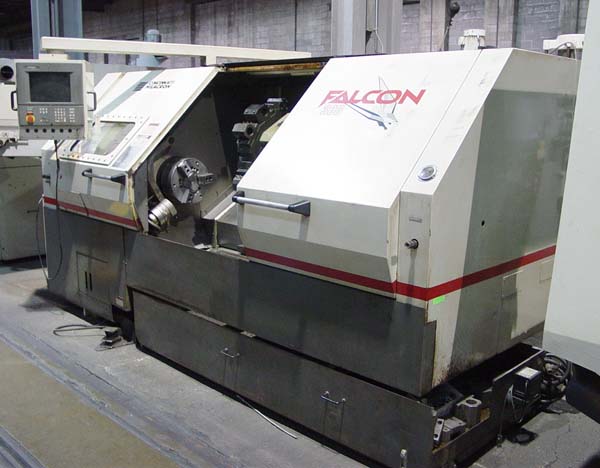

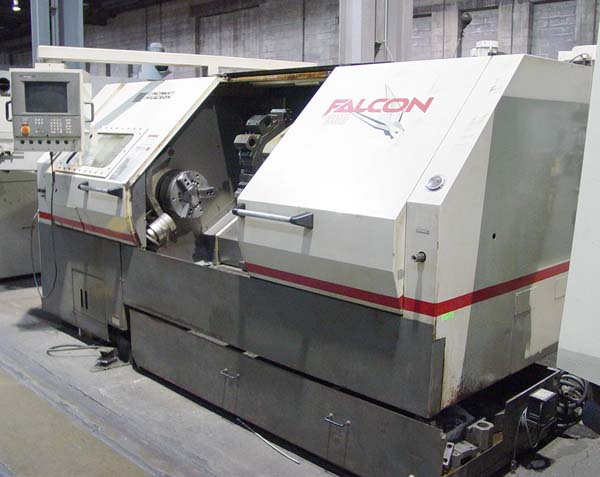

CINCINNATI MILACRON 'FALCON' CNC TURNING CENTER
               Model 300-1000, S/N 5360A01-97-0053, New 1997
                                          Stock# K13850



EQUIPPED WITH:

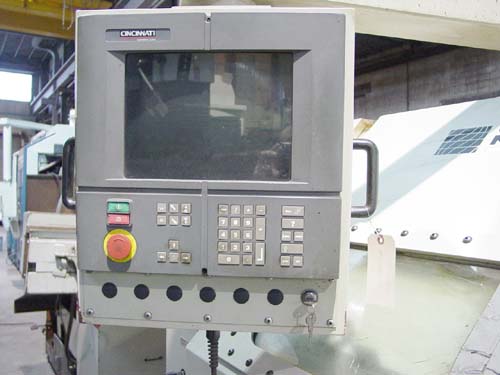

Acramatic 2100 CNC Control (P.C. Based), 14" Color Monitor, Touch
Screen Programming, Probe Interface, Spindle Load Meter, Ethernet with
TCP/IP, Floppy Disk Drive, Realtime Enhanced Performance, Maximum
Program  Probe Cycles for Toolsetter, Fanuc 0 Program Translation, 3rd
Party Software Capability, Full Key Board, 12" 3-Jaw Hydraulic Chuck,

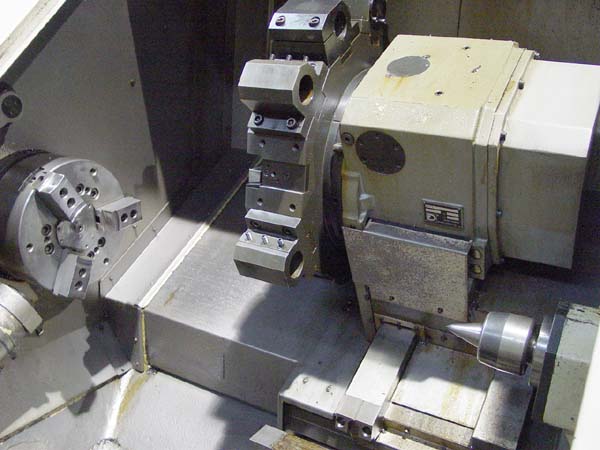

Toolsetter, 12 Position Tool Turret, Coolant System, Chip Conveyor



CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 25.59"
Max Swing Over Carriage................................ 18.80"
Max Tailstock Position................................... 42.4"
Standard Chuck Size..................................... 12"
Cross Travel (X-Axis)...................................... 10.4"
Longitudinal Travel (Z-Axis)............................. 40.15"
Feed Range (Infinitely Variable)...................... .1-200 IPM
Rapid Traverse............................................... 600 IPM
Number of Turrets.......................................... 1
Tool Positions............................................... 12 Total
Spindle Bore................................................. 3.7"
Spindle Nose................................................ A2-8
Spindle Speed Range (1 RPM Increments)...... 30-3000 RPM
Spindle Horsepower...................................... 30 HP
Electrics...................................................... 460/3/60
Approximate Machine Dimensions................. 163" x 83"
Approximate Machine Height......................... 77.8"
Approximate Machine Weight........................ 14,600 LBS

CONDITION:  Machine Appears in Excellent Condition !
