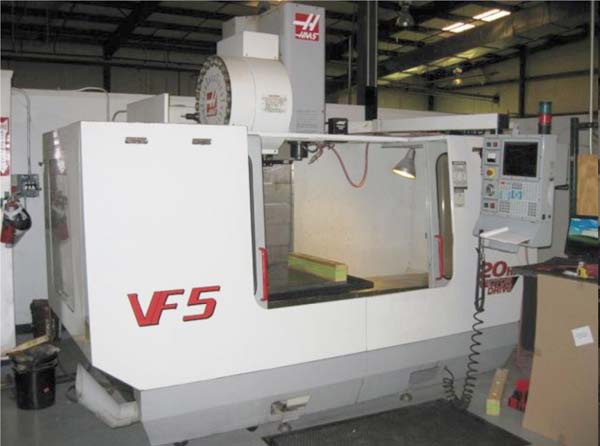

Haas VF-5 CNC Vertical Machining Center
S/N: 20804 Year: 2000, Stock# K13833
Equipped With:
Haas CNC Control, 1MB Expandable Memory, Visual Quick Code Programming
System, 4th Axis Brushless Pre Wire, 24 Side Mount Tool Changer,
Programmable Coolant Nozzle, 3.5" Floppy Drive, Spindle
Orientation, Remote Jog Handle, User Definable Macros, Chip Auger
System
Catalogue Specifications:
Table Size:................... 52" x 23"
Max Table Load: ................ 4000 Lbs
X Axis Travel:............ 50"
Y Axis Travel:.............. 26"
Z Axis Travel:...................... 25"
Spindle Nose to Table Top:..... 7"-32"
Spindle Taper:................. CAT 40
Spindle Speed:............ 7500 RPM
Spindle Motor:.............. 20HP
Rapid Traverse Rate:........ 710 IPM
Cutting Feed Rates:....... 500 IPM
Tool Changer:............. 24 Side Mount
Index Time Tool to Tool:........ 2.8 Sec
Index Time Chip to Chip:............ 3.6 Sec
Machine Weight:................. 14,600 Lbs
Machine Dimensions:............. 137"L x 114"W x 118"H
Condition: Excellent Condition. Came from a NASCAR Shop.
Only 6,000 Spindle Hours, ( About 500 Hours per year)
