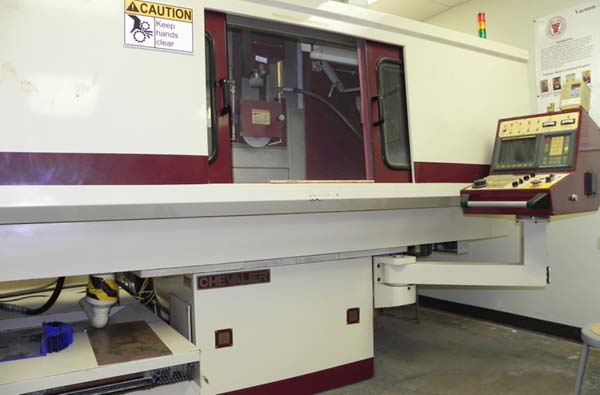

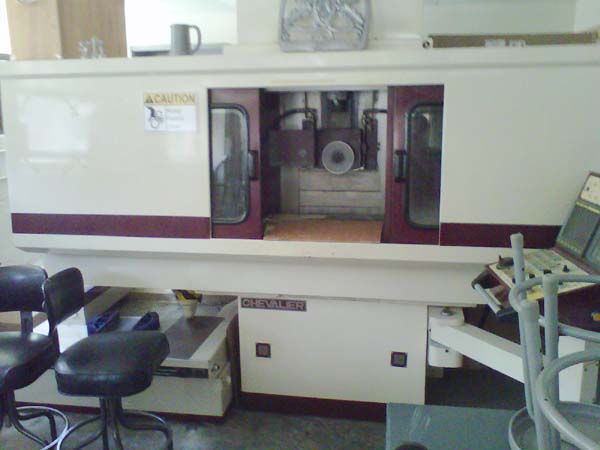

8"x18" CHEVALIER 3-AXIS CNC HORIZONTAL SPINDLE SURFACE GRINDER
                Model FSG-B818CNC, New 1993, Stock# K13810

EQUIPPED WITH:

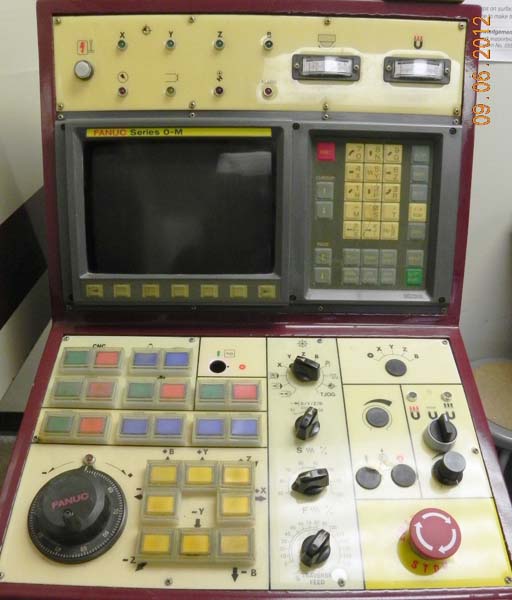

Fanuc OM 3-Axis CNC Control, Full 3-Axis CNC with Resolution of .00001",
CNC Grinding Cycles including: Plunge, Contouring, Profile, Pitch,
Surface and Criss-Cross Grinding, 8" x 18" Walker Fine Pole Magnetic
Chuck, Above the Wheel Dresser with Automatic Dress Compensation,

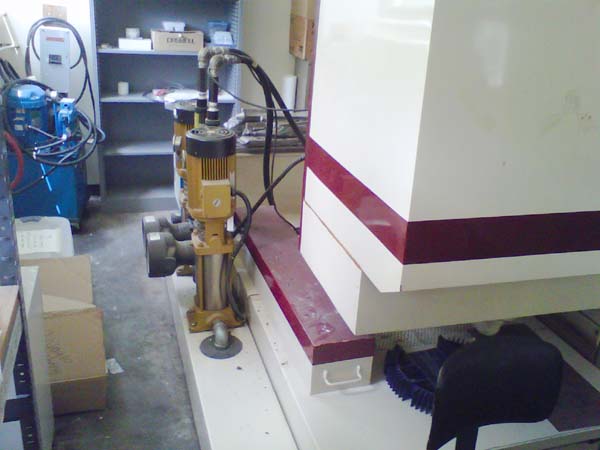

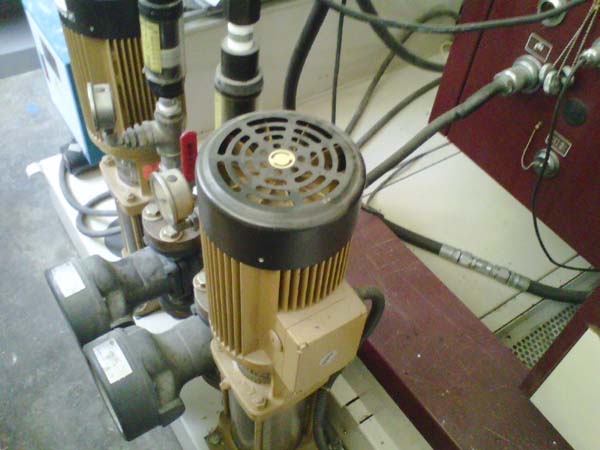

High Volume Coolant System with Chiller, Coolant Filter System, Includes

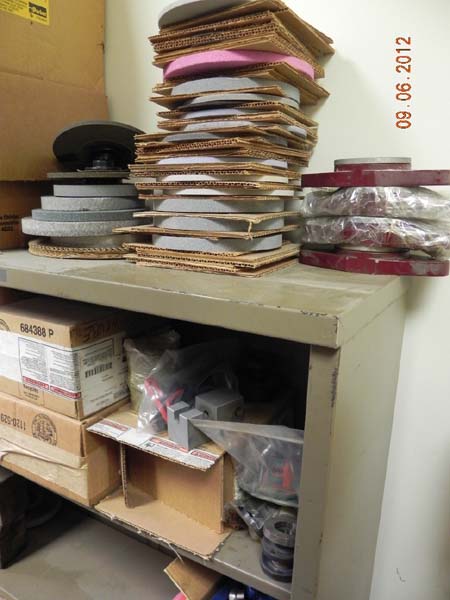

Misc. Wheels, Diamond Wheels and Dressers.



CATALOGUE SPECIFICATIONS:

Magnetic Chuck Working Surface....................... 8" x 18"
Longitudinal Travel (X-Axis)......................... 25.5"
Cross Travel (Z-Axis)................................ 10"
Vertical Travel (Y-Axis)............................. 12"
Max Height Under New Wheel........................... 13"
Max Height Spindle Center to Table................... 19"

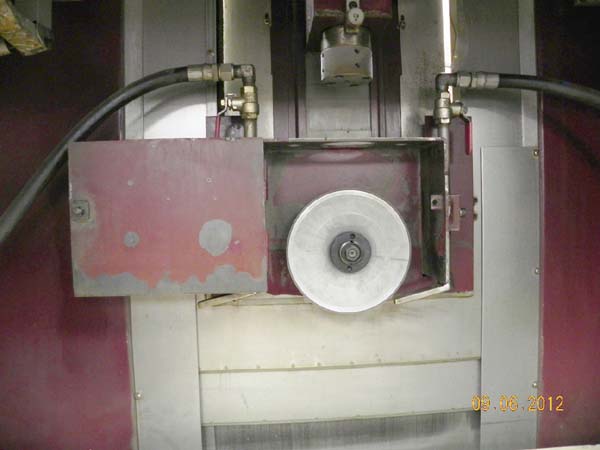

Grinding Wheel Diameter.............................. 12"
Grinding Wheel Width................................. 1.25"
Grinding Wheel Hole Diameter......................... 3"
Grinding Wheel Motor................................. 10 HP
Electrics (Dual Voltage)............................. 220/440/3/60
Approximate Machine Dimensions....................... 118"x 118"
Approximate Machine Height........................... 92"
Approximate Machine Weight........................... 8700 LBS



CONDITION: From a College Lab. Appears to be in Like New Condition !
