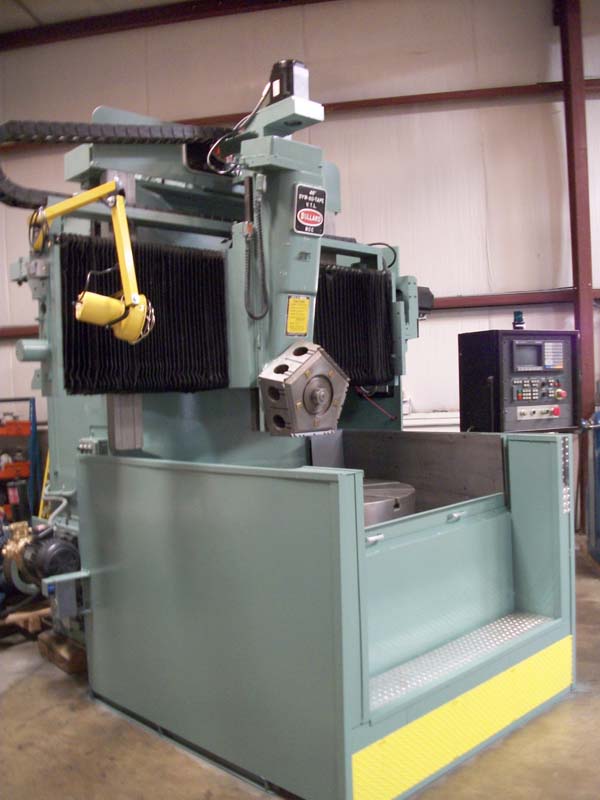

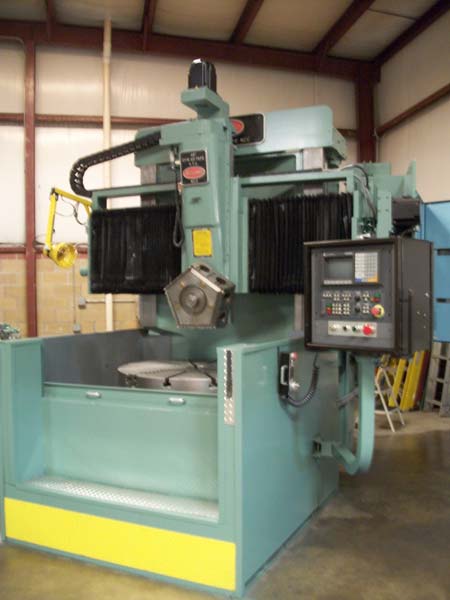

46" BULLARD CNC VERTICAL BORING MILL

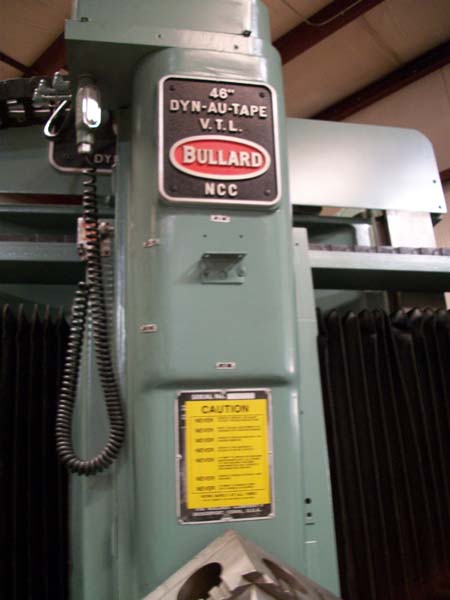

            Model Dyna-Au-Tape, Retrofit and Reconditioned 2012

EQUIPPED WITH:



Allen Bradley 9 Series CNC Control, Manual Pulse Generator, Multiple
Part Program Storage, New Ball Screws, New Bearing Blocks, New Servo Motors,

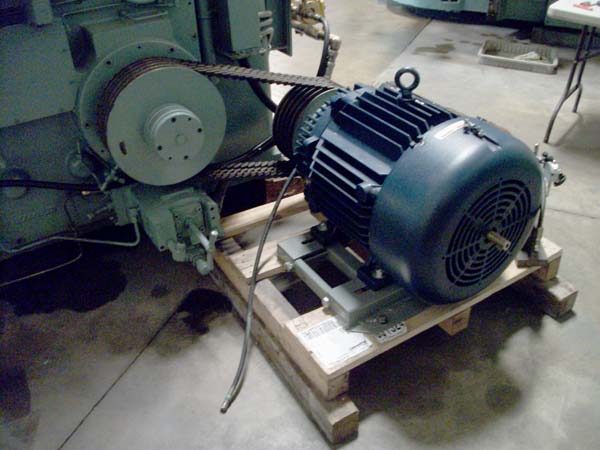

New Axis Drives and Axis Drive Motors, New Main Motor, All Ways Precision Re-Surfaced, New Gibs,

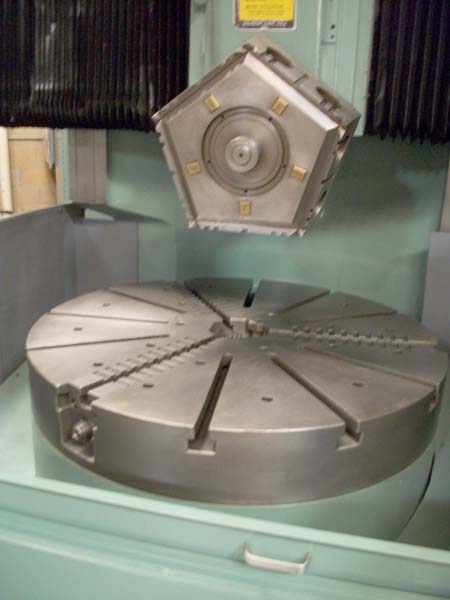

All New Electrics, New Hydraulic System, New Coolant Guard, 46" 3-Jaw Hydraulic Chuck,

5 Sided Power Turret, Automatic Lube System, Chip Conveyor, And Coolant System.



CATALOGUE SPECIFICATIONS:



Chuck Diameter........................................ 46"
Maximum Swing......................................... 58"
Maximum Height Under the Rail......................... 45"
Vertical Travel of Cross Rail......................... 24"

Vertical Travel of Turret Head......................... 21"
Horizontal Travel of Ram Head......................... 58"
Feeds, Range (Infinitely Variable).................... .001-200 IPM
Rapid Traverse........................................ 400 IPM
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 165" x 157"
Approximate Machine Height (Rail Up, Turret Up)....... 163"
Approximate Machine Weight............................ 46,000 LBS



CONDITION: Reconditioned and available for Power Demo.
