EQUIPPED WITH:
Mazak Mazatrol M-32 CNC Control, RS-232 Port, Mazatrol Conversational
Programming, Multiple Part Program Storage, EAI/ISO Programming,
Self Diagnostics, Automatic Pallet Changer with (2) 78" x 157" Pallets,

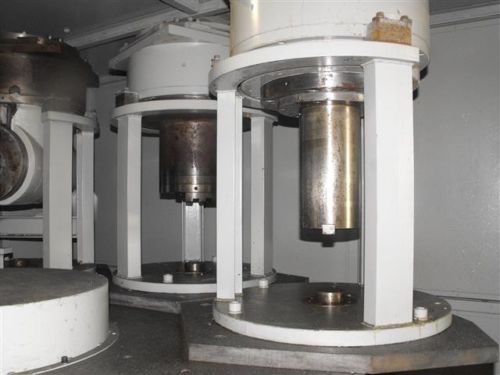

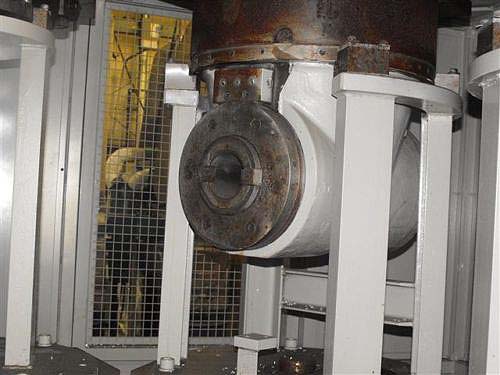

Heavy Duty Geared Spindle with Cat-50 Taper, 5 Station Automatic Head
Changer, 80 Station Automatic Tool Changer, Full Enclosure,
Thru Spindle Coolant System and Chip Conveyor.
CATALOGUE SPECIFICATIONS:
Pallet Working Surface................................ 78" x 157"
Table Load Capacity................................... 36,000 lbs
Longitudinal Travel (X-Axis).......................... 196"
Cross Travel Including ATC Position (Y-Axis).......... 127"
Vertical Travel (Z-Axis).............................. 39"
Spindle Nose to Table................................. 16" - 55"
Distance Between Columns.............................. 100 "
Rapid Traverse Rate (X & Y-Axes)...................... 800 IPM
Rapid Traverse Rate (Z-Axis).......................... 400 IPM
Tool Storage Capacity ................................ 80
Head Changer Capacity ................................ 5
Spindle Horsepower.................................... 50 HP
Spindle Speeds ....................................... 5 - 4000 RPM
Spindle Taper......................................... #50 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 48'3" x 28'2"
Approximate Machine Height............................ 268"
Approximate Machine Weight............................ 110,000 LBS
