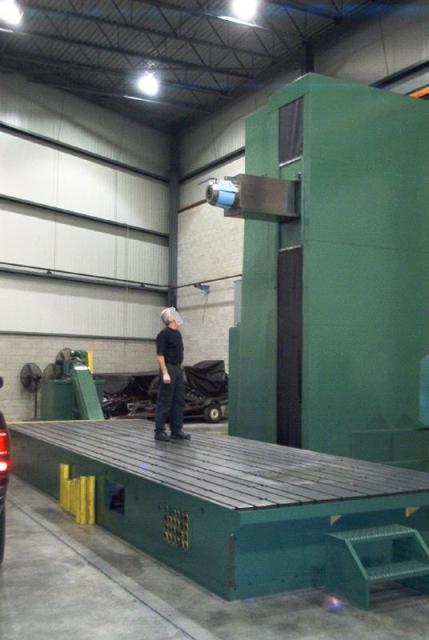

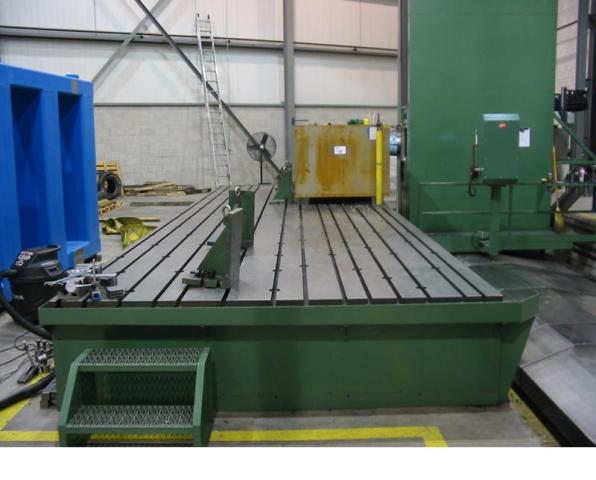

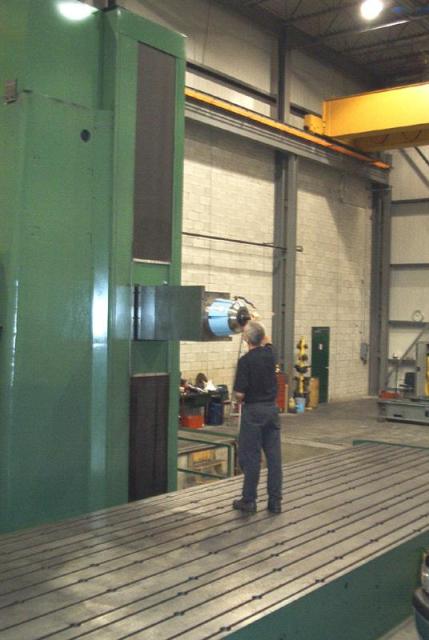

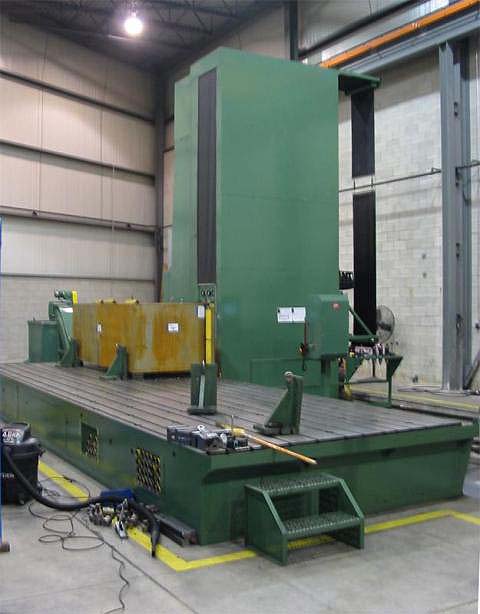

GRAY CNC Floor Type Horizontal Machining Center / Boring Mill

Stock Number K13762

30' Gray Horizontal Floor Type Boring Mill For Sale

GRAY CNC FLOOR TYPE HORIZONTAL BORING MILL

NEW-1980 RETROFIT 1999

EQUIPPED WITH:

HEIDENHAIN 426 CNC Control

ELECTRICS-440 3/60

SIEMENS AC DRIVES

FULL 3 AXIS 3D MACHINING

18" x 18" RAM DIMENSION

NO QUILL ON THIS MACHINE FIXED SPINDLE

SPECIFICATIONS:

TABLE SIZE. . . . . . . . . : 15FT x 30FT (FLOOR PLATE)

CROSS TRAVEL (X). . . . . . : 290"

VERTICAL HEAD TRAVEL (Y). . : 127"

SPINDLE TRAVEL (Z). . . . . : 48"

SPINDLE SPEEDS. . . . . . . : 2500 RPM

SPINDLE MOTOR . . . . . . . : 50 HP

SPINDLE TAPER . . . . . . . : CAT #50

TABLE CAPACITY. . . . . . . : 100,000 LBS.

UNDER POWER. APPEARS TO BE IN EXCELLENT CONDITION
