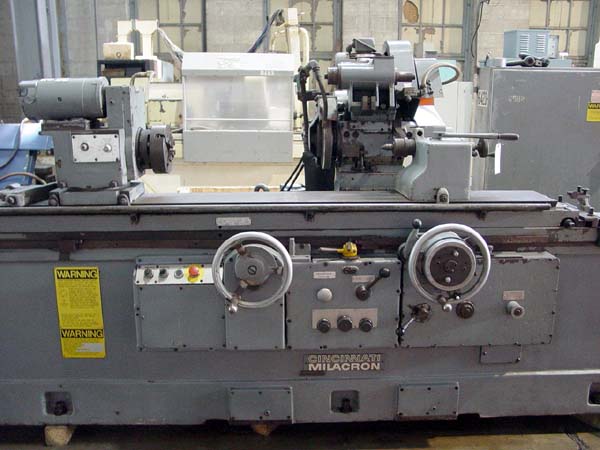

14" X 72" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER
                     Model DE, New 1974, S/N 353213F74-0002
                                Stock# K13668


EQUIPPED WITH:

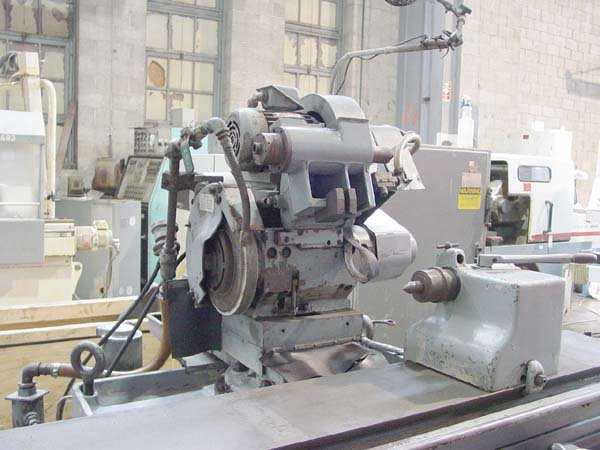

Swivel Base Headstock and Wheelhead, Variable Speed Headstock,
Combination Live/Dead Headstock Spindle, Power Rapid Wheelhead
Positioning, Swing Down Internal Grinding Spindle, Table Mounted

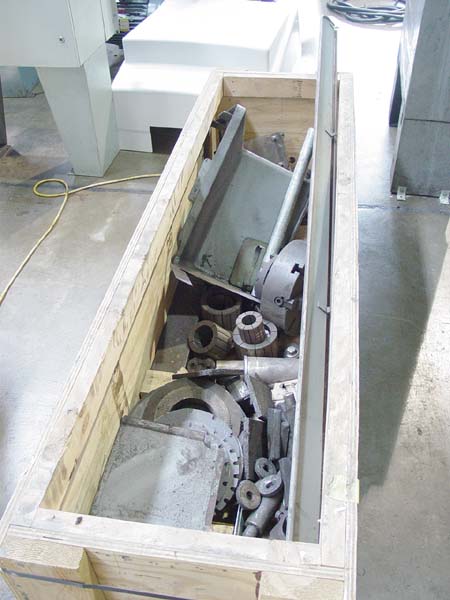

Dresser, Coolant System, Tooling.


CATALOGUE SPECIFICATIONS:
Swing Over Table, Maximum........................... 14-15/16"
Grinding Diameter, Maximum (with New Wheel)......... 14-15/16"
Grinding Length, Maximum............................ 72"
Distance Between Center, Maximum.................... 86"
Grinding Wheel, Standard Diameter................... 14"
Grinding Wheel, Hole Diameter....................... 5"
Wheelhead Swivel Range (Lower Swivel)............... 90 DEG
Wheelhead Swivel Range (Upper Swivel)............... 30 DEG
Workhead Swivel Range............................... 120 DEG
Table Swivel Range.................................. 9 DEG
Workhead Spindle Speeds, Infinite................... 50 to 500 RPM
Longitudinal Table Feeds, Infinite.................. 3 to 220 IPM
Workhead and Tailstock Center Tapers................ 10 B & S
Wheelhead Motor..................................... 5 HP
Workhead Motor...................................... 1 HP
Electrical......................................... 440/3/60
Approximate Machine Dimensions...................... 73" x 229"
Approximate Machine Height.......................... 62"
Approximate Weight.................................. 15,600 LBS



CONDITION:  Appears to be in Very Good Condition !!
