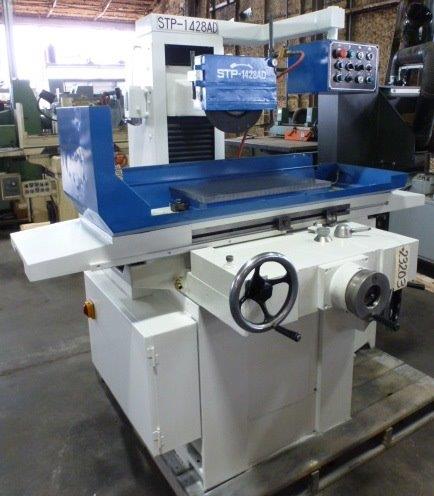

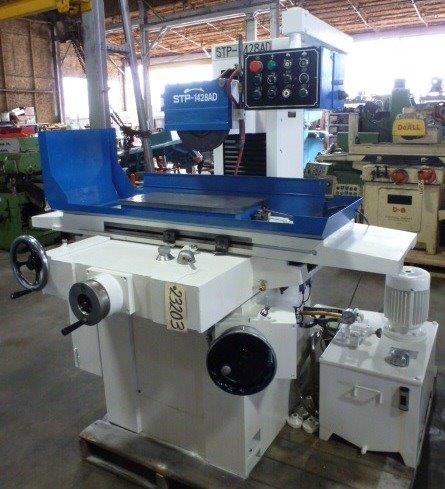

14" x 28" SUPERTEC 3-AXIS SURFACE GRINDER
                    Model STP-1428AD, New 1990, S/N P58544
                                             Stock # K13645



EQUIPPED WITH:

12" x 24" Electromagnetic Chuck, Incremental Auto Downfeed, Auto Recip &
Cross Feed,  Coolant System,



CATALOGUE SPECIFICATIONS:

Magnetic Chuck Working Surface....................... 12" x 24"
Longitudinal Table Travel (X-Axis)................... 28"
Cross Travel (Z-Axis)................................ 14"
Vertical Travel (Y-Axis)............................. 19"
Max Height Under a New 12" Wheel..................... 17-3/4"
Table Longitudinal Feeds Range (Variable)............ 10-80 FPM
Cross Feeds Increments............................... .02 -.75 IPM
Spindle Vertical Feeds Increments.................... .0001.0003.0005
Grinding Wheel Diameter.............................. 12"
Grinding Wheel Width, Standard....................... 1-1/4"
Grinding Wheel Motor................................. 3 HP
Grinding Spindle Speed............................... 2050 RPM
Approximate Machine Dimensions....................... 80" x 60"
Approximate Machine Height........................... 80"
Approximate Machine Weight........................... 4,525 LBS



CONDITION: Cleaned, Painted and Cycled. Appears to be in Very Good Condition !
