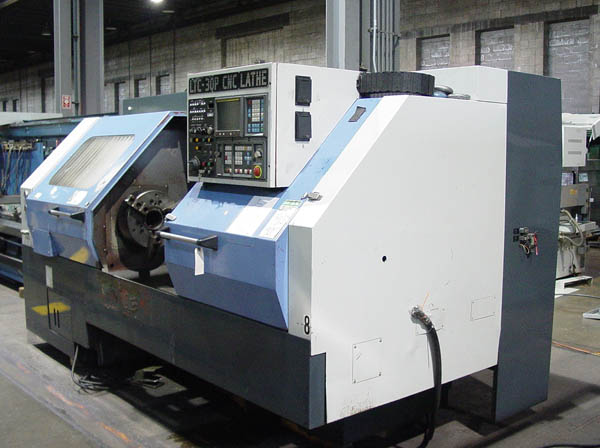

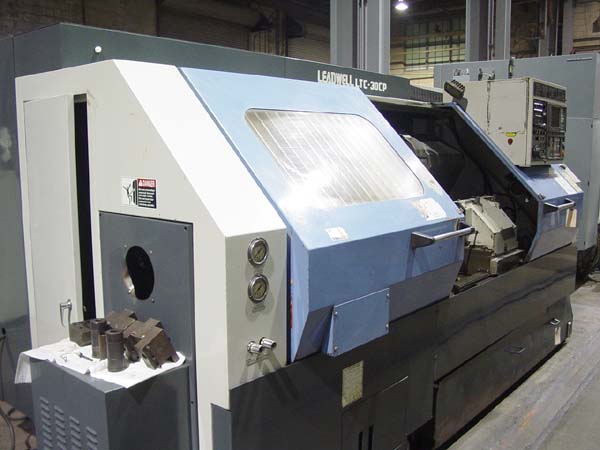

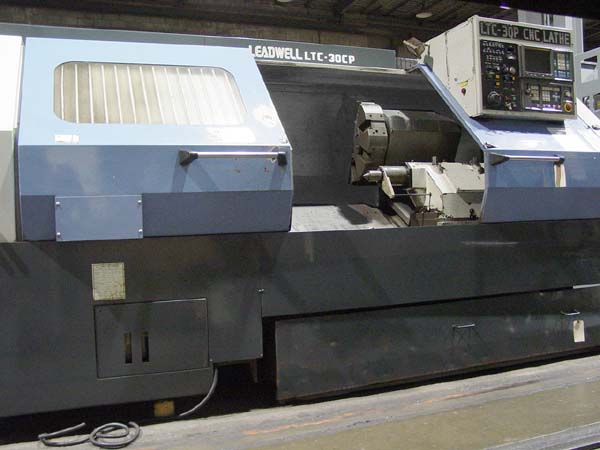

LEADWELL CNC TURNING CENTER
                  Model LTC30CP, New 1998, Stock # K13614



EQUIPPED WITH:



Fanuc OTC CNC Control, 15" 3-Jaw Power Chuck, Heavy Duty Bed Mounted
Tailstock, 4.5" Bar Capacity, 8 Position Bi-Directional ID/OD Tool
Turret, Thru-The-Tool Coolant, Coolant System, and Chip Conveyor.



CATALOGUE SPECIFICATIONS:



Swing over Slant Bed .................................. 25.59"
Swing over Carriage ................................... 20.3"
Max Tailstock Position................................. 36"
Max Machinable Center Distance......................... 36"
Standard Chuck Size.................................... 15"
Cross Travel (X Axis).................................. 10.6"
Longitudinal Travel (Z Axis)........................... 40.2"
Feed Range (Infinitely Variable)....................... .1 to 200 IPM
Rapid Traverse Rate ................................... 600 IPM
Number of Turrets...................................... 1
Number of Tool Positions............................... 8
Spindle Bore........................................... 5.00"
Bar Capacity........................................... 4.5"
Spindle Nose........................................... A2-11
Spindle Speed Range.................................... 20-2000 RPM
Spindle Drive Motor ................................... 40 HP
Electrics ............................................. 460/3/60 AC
Overall Machine Size .................................. 115"x83"x79"H
Approximate Weight..................................... 17,000 LBS



CONDITION: Appears to in Very Good Condition.
