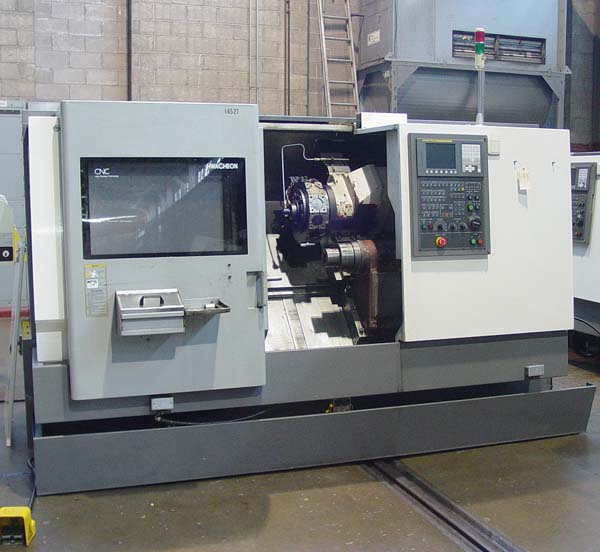

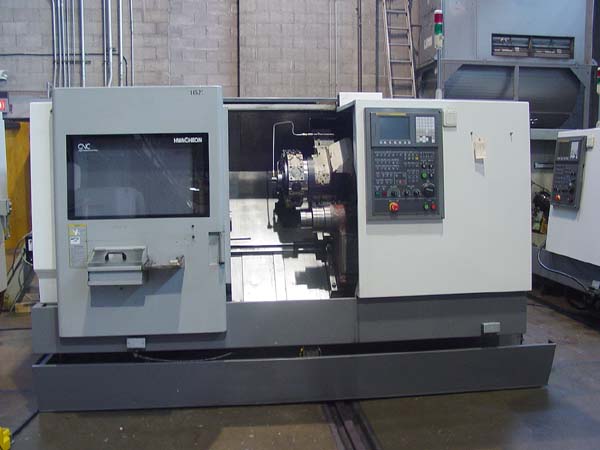

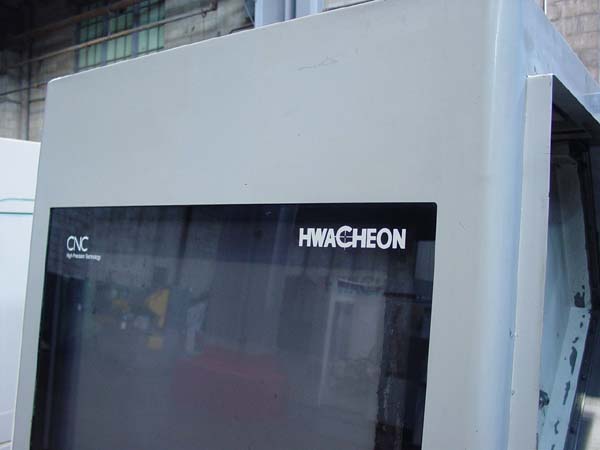

HWACHEON CUTEX-240 CNC TURNING CENTER
            with LIVE TOOLING and SUB-SPINDLE
              Model Cutex-240ASMC,  New 6/2006
                              Stock# K13610



EQUIPPED WITH:

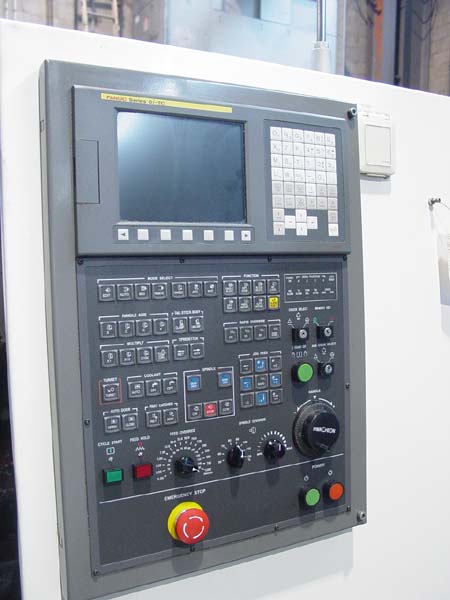

Fanuc 0i-TC CNC Control, Multiple Part Program Storage, RS-232 Port,

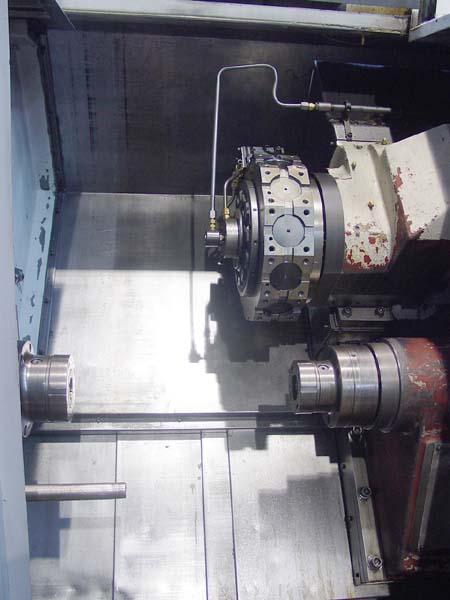

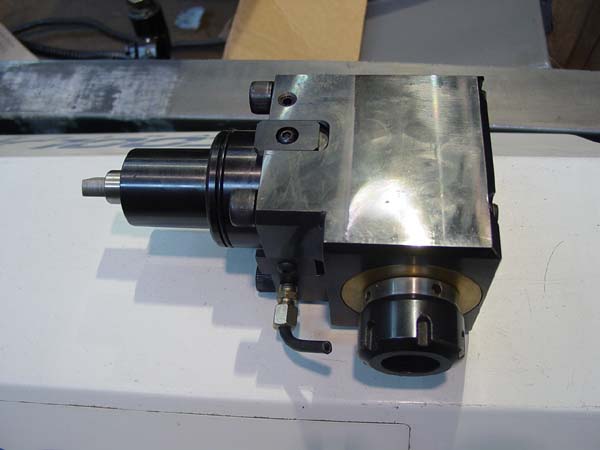

Live Tooling, Full Contouring C-Axis Spindle, Sub-Spindle, ATS Low
Profile Collet Chucks, Parts Catcher, Barfeed Interface, MTA 12'
Magazine Bar Feeder, Sub-Spindle Part Ejector, Rigid Tapping with Rotary

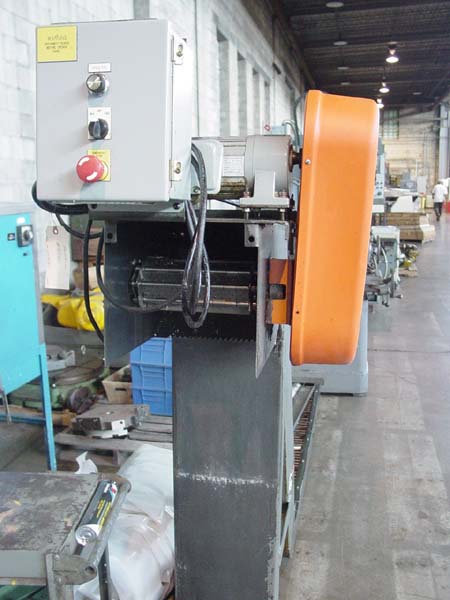

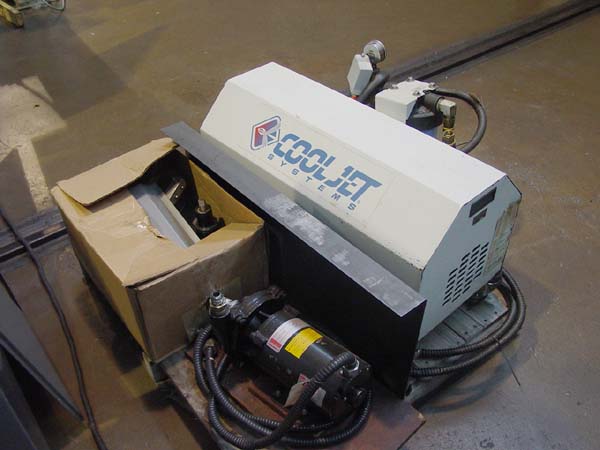

Tools, Chip Conveyor
and Coolant System.



CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 22.8"
Max Turning Diameter.................................... 15"
Max Machining Length.................................... 23.6"
Standard Chuck Size..................................... 8"
Spindle Bore............................................ 2.99"
Spindle Nose............................................ A2-6
Cross Travel (X-Axis)................................... 8.46"
Longitudinal Travel (Z-Axis)............................ 26.19"
Rapid Traverse Rate (X-Axis)............................ 1417 IPM
Rapid Traverse Rate (Y-Axis)............................ 1417 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Speed Range..................................... 50-5000 RPM
Spindle Horsepower...................................... 25 HP
Sub-Spindle Speed Range................................. 60-6000 RPM
Sub-Spindle Horse Power................................. 10 HP
Milling Spindle Speed Range............................. 50-5000 RPM
Milling Spindle Horse Power............................. 5 HP
Approximate Machine Dimensions.......................... 161" x 84"
Approximate Machine Height.............................. 73"
Approximate Machine Weight.............................. 10,000 LBS



CONDITION: Machine Appears to be in Excellent Condition !
