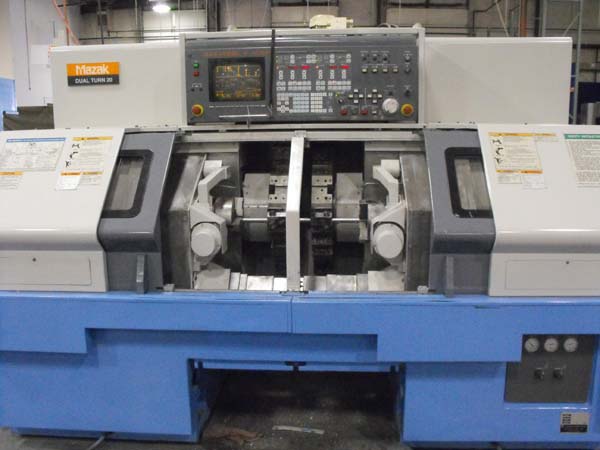

MAZAK DUAL TURN 20 Twin Spindle Twin
Turret CNC Turning Center
Model
DT-20, New 1997, Stock# K13606
EQUIPPED
WITH

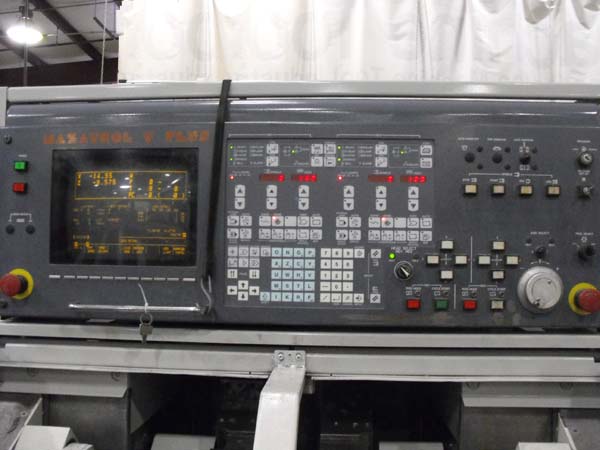

Mazatrol T-Plus CNC Control
Conversational Programming

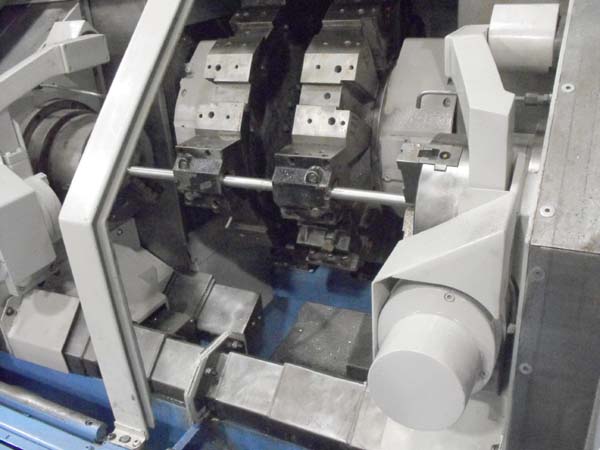

Twin Spindles & Twin Turrets
12" Monochrome CRT
Programmable Tool Eyes (L &
R)
Auto Chuck Open/Close
Programmable Work Piece
Transfer between spindles
SPECIFICATIONS
Chuck Size
8" (2)
Max. Swing Over Bed
12.6"
Max. Turning Diameter / For
Transfer 12.6" / 10"
Distance Between
Spindles 49.21"
Main Motor
20 - 15 HP
Spindle Speed
35 - 4750 RPM
Tools
12 (2)
Spindle Nose
A2-6
Rapid Traverse Rate (X,
Z) 1200 - 1300 IPM
X Axis Travel
9.06"
Z Axis Travel
19.69"
Approx. Machine
Dimensions 159.3" x 107" x 80"
Approx. Weight 13,200 LBS
